AVAS - AEK-AUD-D903V1 Audio out on speaker via I2C

  • July 9, 2024
  • 3 replies
  • 1843 views

Hi, i have a AEK-AUD-D903V1 evaluation board, speaker. I want to play speaker only using I2C. is it possible How should i progress? Also, my MCU is not ST product

This topic has been closed for replies.

3 replies

Tesla DeLorean
Tesla DeLorean
Guru
July 9, 2024

>>How should i progress?

Find other examples, and port to your platform. Read/Review the documentation for the IC

https://www.st.com/en/automotive-infotainment-and-telematics/fda903d.html

Tips, Buy me a coffee, or three.. PayPal VenmoUp vote any posts that you find helpful, it shows what's working..
    LCE
    LCE
    Principal II
    July 10, 2024

    "I2C only" - for control hopefully?

    Or does it accept audio data via I2C? Which is very unusual, so you hopefully mean to transmit audio data via I2S ?

    Anyway, as TDL said: RTFM ;)

      Andrew Neil
      Andrew Neil
      Super User
      July 10, 2024
      @Altun wrote:

      I want to play speaker only using I2C. is it possible

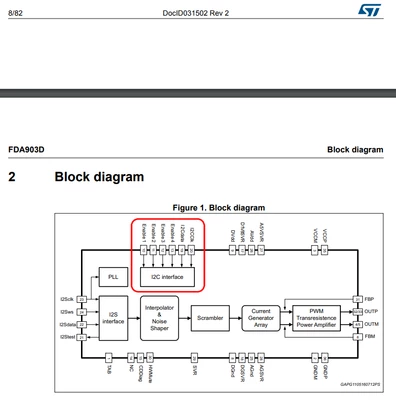

      As the others have suggested, the datasheet will answer that; eg:


      https://www.st.com/resource/en/datasheet/fda903d.pdf#page=9

      You can see that the I2C is not in the audio path



      A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
        A
        ArthurMorris
        Graduate
        July 15, 2024

        Thanks, I will check it.
