Can under-powering an OpAmp Damage it (TSV358AIDT)
- June 9, 2017
- 0 replies
- 714 views
Posted on June 09, 2017 at 05:47
We are seeing some of our opamps failing, outputting the VCC rail regardless of input!

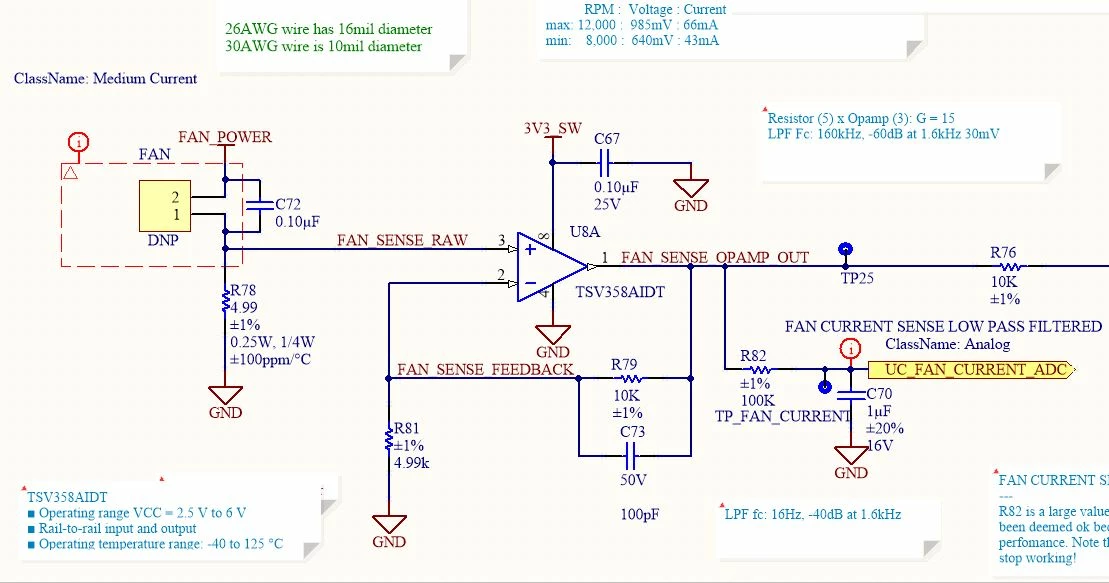

The input signal is a BLDC fan current sense resistor and cell a is a non-inverting gain of 3x.
Our sleep circuit was implemented incorrectly, during sleep Vcc is actually 1.5V instead of 0V, can this damage this part (note: other pins should be at 0V until 3.3V is applied when woken)?
