January 18, 2020
Solved

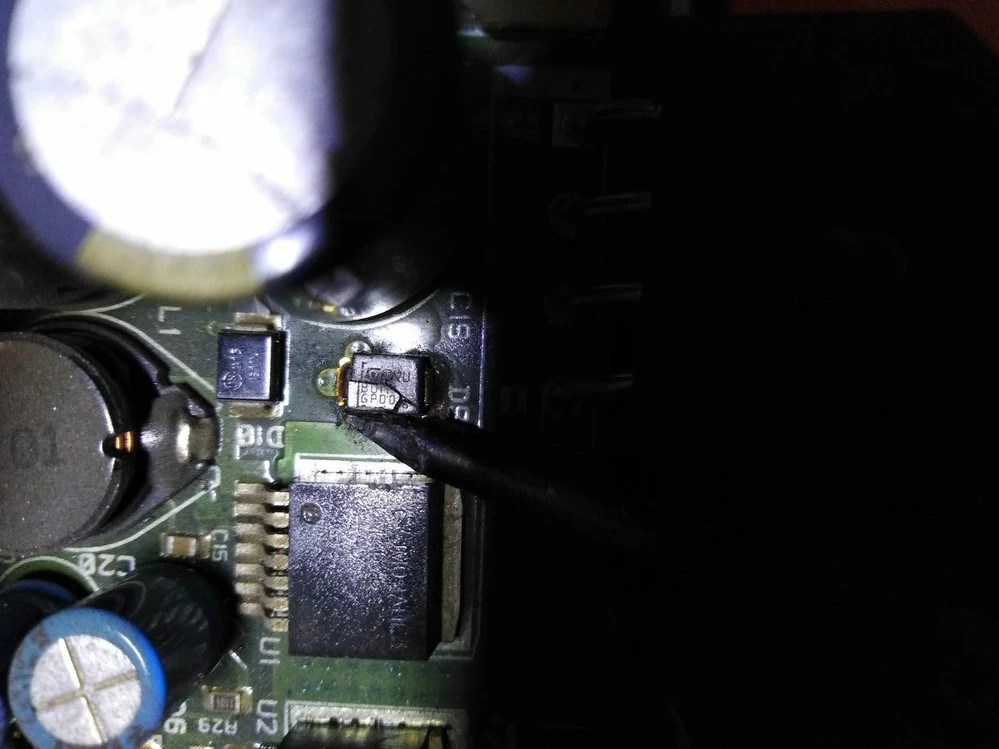

good evening kindly ask I have this your broken diode , but I do not know recognize the code politely ask for help. Thank you

  • January 18, 2020
  • 4 replies
  • 1300 views

0690X00000BwB23QAF.jpgDiode ST ………..

    This topic has been closed for replies.
    Best answer by MikeDB

    It will be something like this

    https://uk.rs-online.com/web/p/rectifier-diodes-schottky-diodes/1513127/

    Any 50V 3Amp or greater Schottky diode should work so see what your local supplier stocks.

    Bigger question is why did the existing one blow up.

    4 replies

    MikeDB
    MikeDB
    Senior II
    January 19, 2020

    What is the number on the IC U1 ? That will probably give a link to the datasheet and what diode to use.

    DPezz.1
    DPezz.1Author
    Associate
    January 20, 2020

    Good day Mr, the uc1 is LM 2676. Thanchk

    MikeDB
    MikeDBBest answer
    Senior II
    January 20, 2020

    It will be something like this

    https://uk.rs-online.com/web/p/rectifier-diodes-schottky-diodes/1513127/

    Any 50V 3Amp or greater Schottky diode should work so see what your local supplier stocks.

    Bigger question is why did the existing one blow up.

    NWill.1
    NWill.1
    Visitor II
    March 3, 2020
    Error while parsing Rich Text Content
