How can I read analog to send computer on serialPort by using uart?

[uzeyir varli]

Posted on February 11, 2018 at 15:40

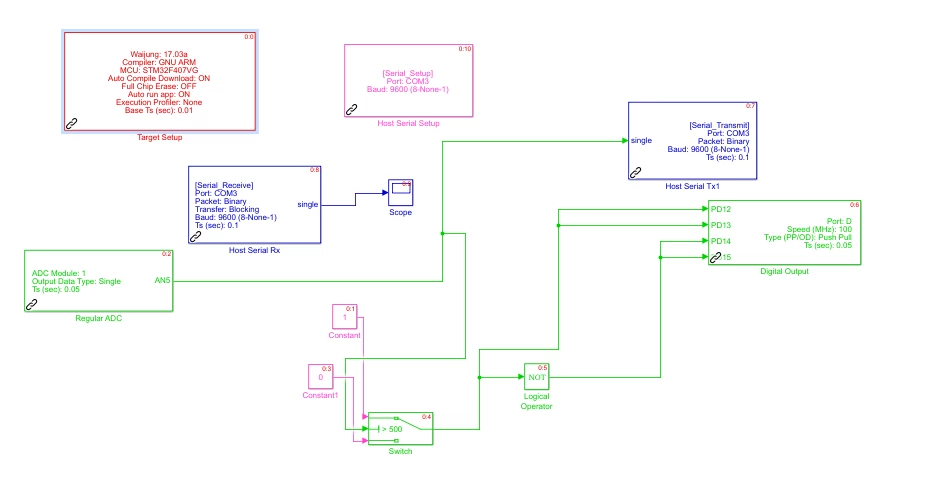

Hello I am Ãœzeyir. I use stm32f4 discovery.  I should read analog value on simulink.  I made a basic application. My application is that i use potansiyometre because of channing of analog value. If ADC is upper 500 , PD12 and PD13 will activated. otherwise PD15 and PD15 digital outputs will be activated. Digital outputs ara activated according to analog value.  But ı cannot not drawed on simulink or read. . I tried a lot ways.

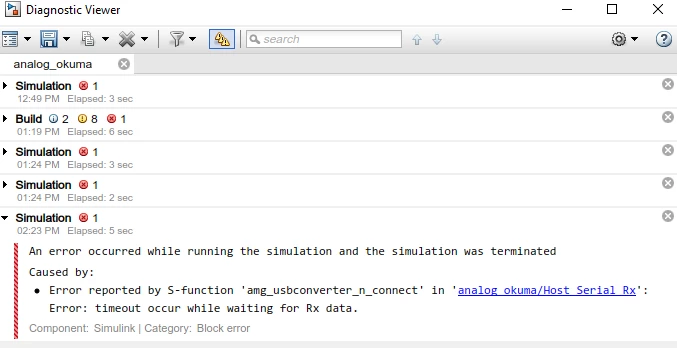

But ı taken a errors which is''Error reported by S-function 'amg_usbconverter_n_connect' in 'analog_okuma/Host Serial Rx':

Error: timeout occur while waiting for Rx data.''

How can i read analog value?

https://community.st.com/tags/♯/?tags=readanalogvalue

null

[Aimagin Co., Ltd.]

Posted on February 15, 2018 at 04:06

Hello,

Ãœzeyir

.

Could you please give me more information?

for example:

- Simulink file.

- Hardware setup

For more information about UART you can see tutorial from these links:

http://aimagin.com/blog/how-to-use-uart-communication-port/



http://aimagin.com/blog/using-hardware-in-the-loop-with-waijung/



In addition, you can ask Aimagin's support team any questions about Waijung Blockset at

https://support.aimagin.com/

.

Best regards,

[Aimagin Co., Ltd.]

Posted on February 20, 2018 at 04:07

 Hi,

Ãœzeyir

.

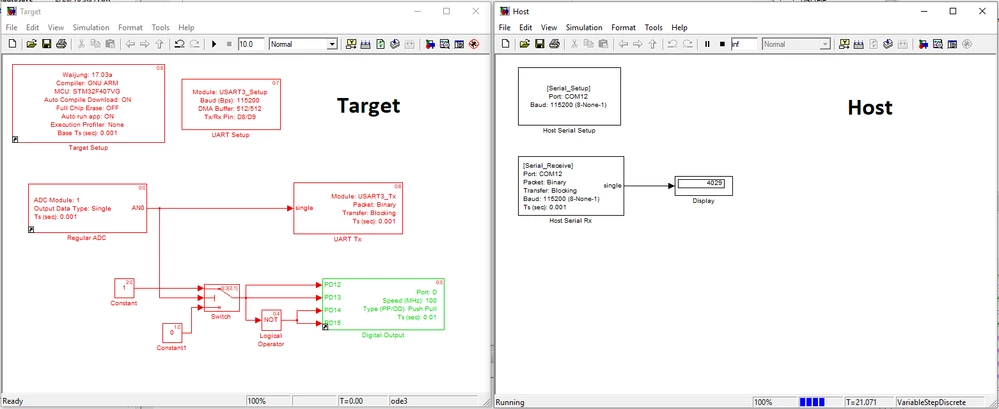

Firstly, you need to separate as Target and Host. Target is MCU and Host is Simulink monitoring.

In the Target you must to use UART block in On-chip Peripherals and if you want to send data to MCU p

lease change UART Rx to Non-blocking transfer mode because in blocking mode your MCU doesn't do not thing while waiting for Rx data.

In the Host(PC) use Host Serial for receiving data from MCU.



Best regards,

[Aimagin Co., Ltd.]

Posted on February 20, 2018 at 08:35

You can use

http://www.st.com/en/development-tools/stm32-mat-target.html

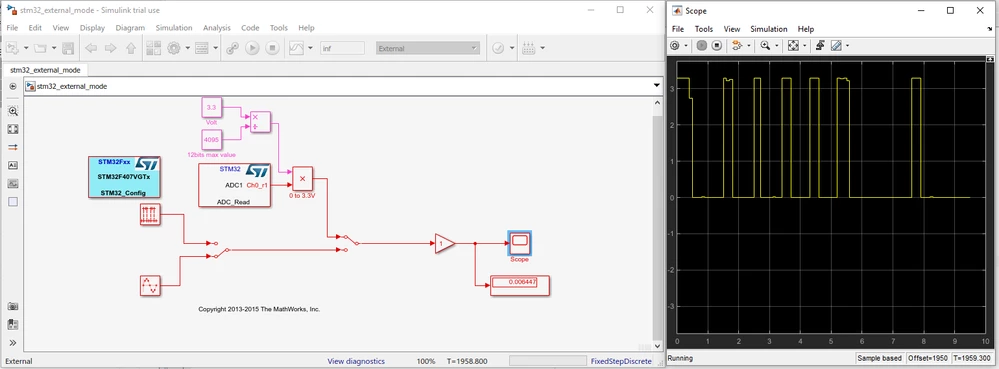

in External mode as show in picture below.

However,

stm32f4 discovery

require VCP(Virtual Com Port) for External mode (

http://www.st.com/en/development-tools/stm32-mat-target.html

) andcommunicate with

http://waijung.aimagin.com/

.

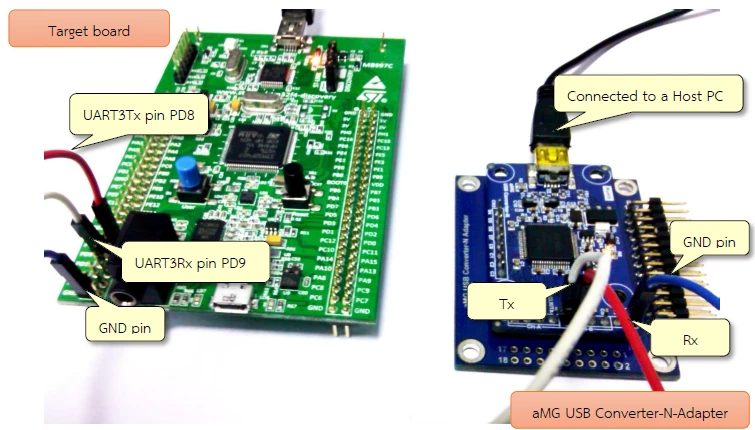

So, you need to setup your hardware like picture below. For detail you can see in this

https://community.st.com/0D50X00009XkX71SAF

.

source:

http://aimagin.com/blog/using-hardware-in-the-loop-with-waijung/

Best regards,
