Is the TS954 SPICE model accurate

[ktomp.1]

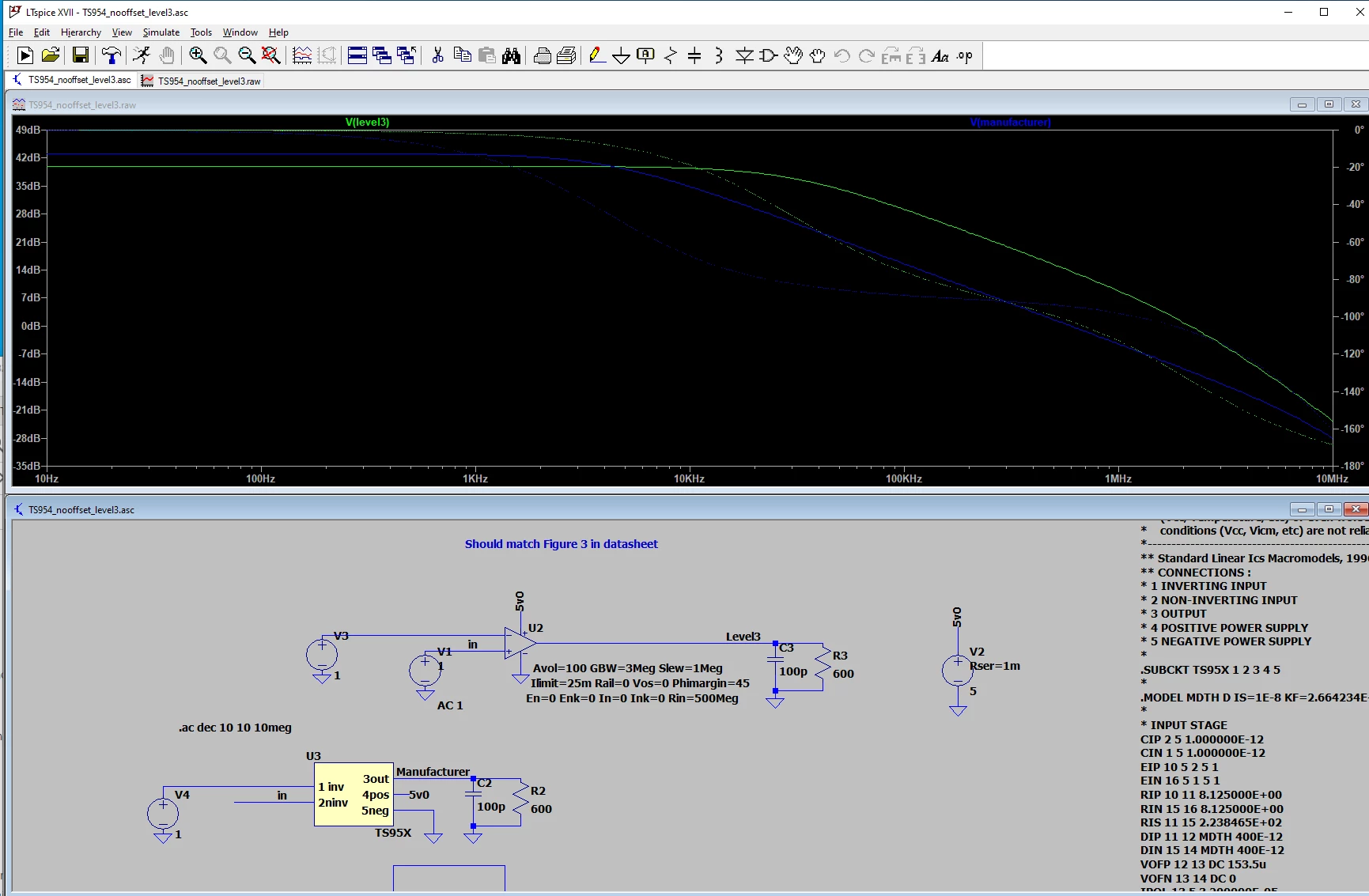

I matched figure 3 in the datasheet with a level3a spice model and I can get a good match. When I used your provided model the crossover is VERY low. Also I don't understant how the datasheet has 80dB of DC gain, but the model and open loop response look like 40 some odd DB.

[Douglas MILLER]

This forum thread was marked by the moderator as needing a little more investigation, so a Support case was created in your name and will be handled off-line. Should anyone have any similar questions, please feel free to open a Support case directly at your myST portal: https://st.com/ols
