Macromodel location

[allan]

Posted on December 05, 2011 at 11:19

Hello,

I would like to use macromodels to simulate my schematics but I am not able to find them.

I think that they are available because in the TSV6239 datasheet it is mentioned  :

Two accurate macromodels (with or without shutdown feature) of the TSV629x are available on STMicroelectronics� web site at www.st.com.

Thank you for your support.

#macromodels #op-amps-spice-macromodel #op-amps

[Nickname14663_O]

Posted on December 05, 2011 at 15:18

Dear Allan,

All ST op-amps Spice macromodels are available at the following link :

http://www.st.com/stonline/stappl/resourceSelector/app?page=resourceSelector&doctype=SPICE_MODEL&SubClassID=61

Regarding the TSV6293 op-amp macromodel, you can use the TSV6291 one. The only difference is the number of channels in the package and this is not taken account in the Spice model.

You can download it at the following link :

http://www.st.com/internet/com/SOFTWARE_RESOURCES/HW_MODEL/SPICE_MODEL/TSV6291_macromodel.zip

If you don't want to keep in mind this link, you can go to the home page of the ST website (www.st.com) and follow these 5 steps to find all op-amps Spice models :

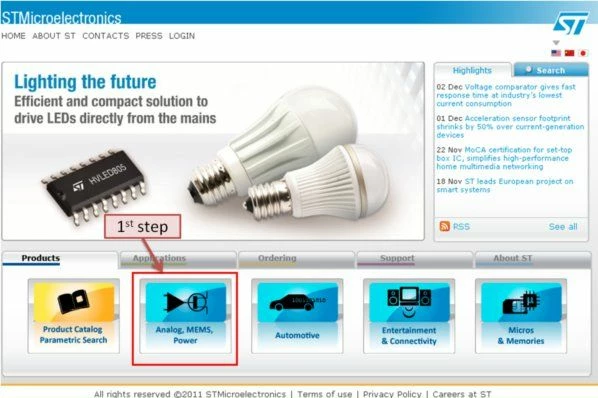

Step 1 :

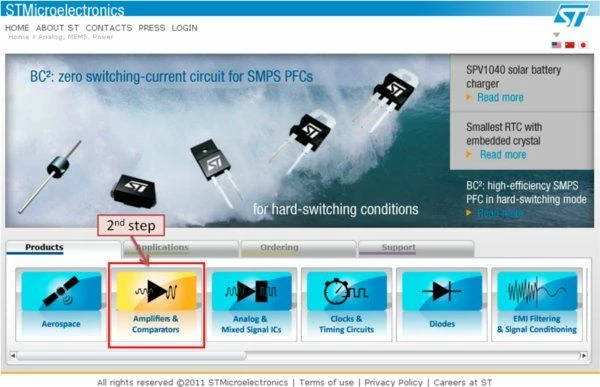

Step 2 :

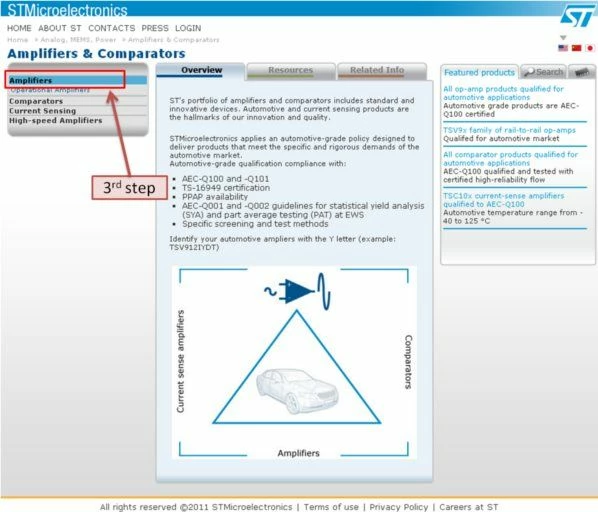

Step 3 :

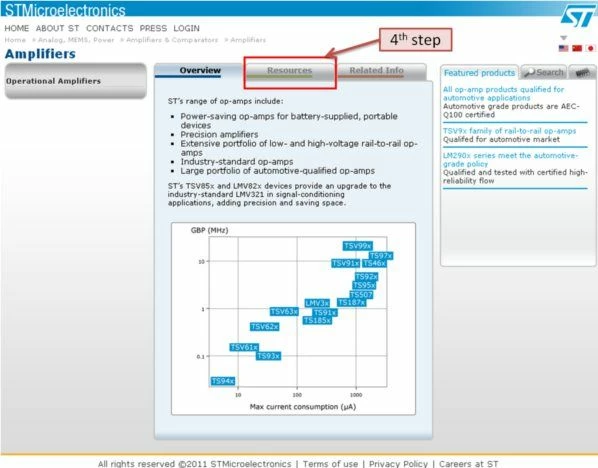

Step 4 :

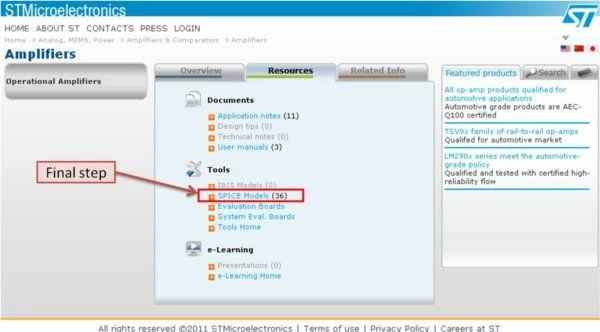

Step 5:

Best regards.
