May we use TSA4871 in single singled mode?

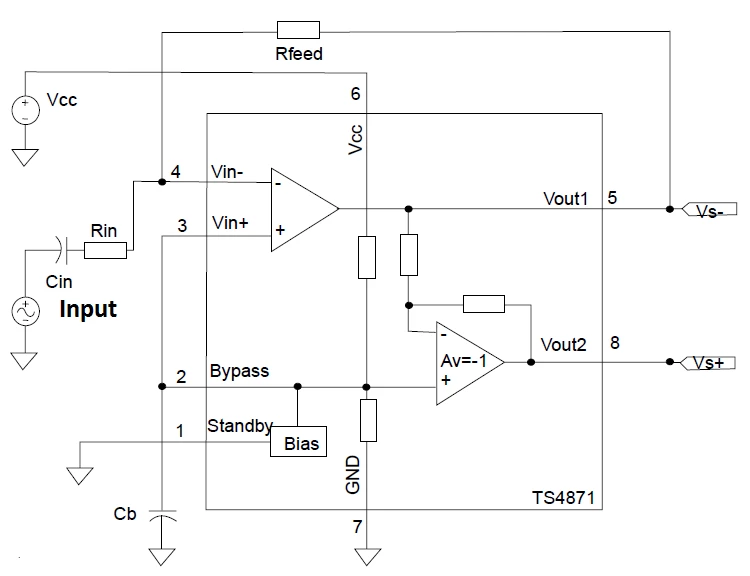

On a existing Electronic board, the following schematic is implemented:

May I use it in single end mode with a serial capacitor between VS+ (or VS-) and the load connected to GND?

May the other output VS- (or VS+) stay unconnected?

What is the bias voltage on the output VS- or VS+? (VDD/2?)

Thanks.

Best regards.

Sylvain
