Shall we use differential TDA7575B input as single ended

[bala]

Posted on July 25, 2013 at 08:48

hi form members,

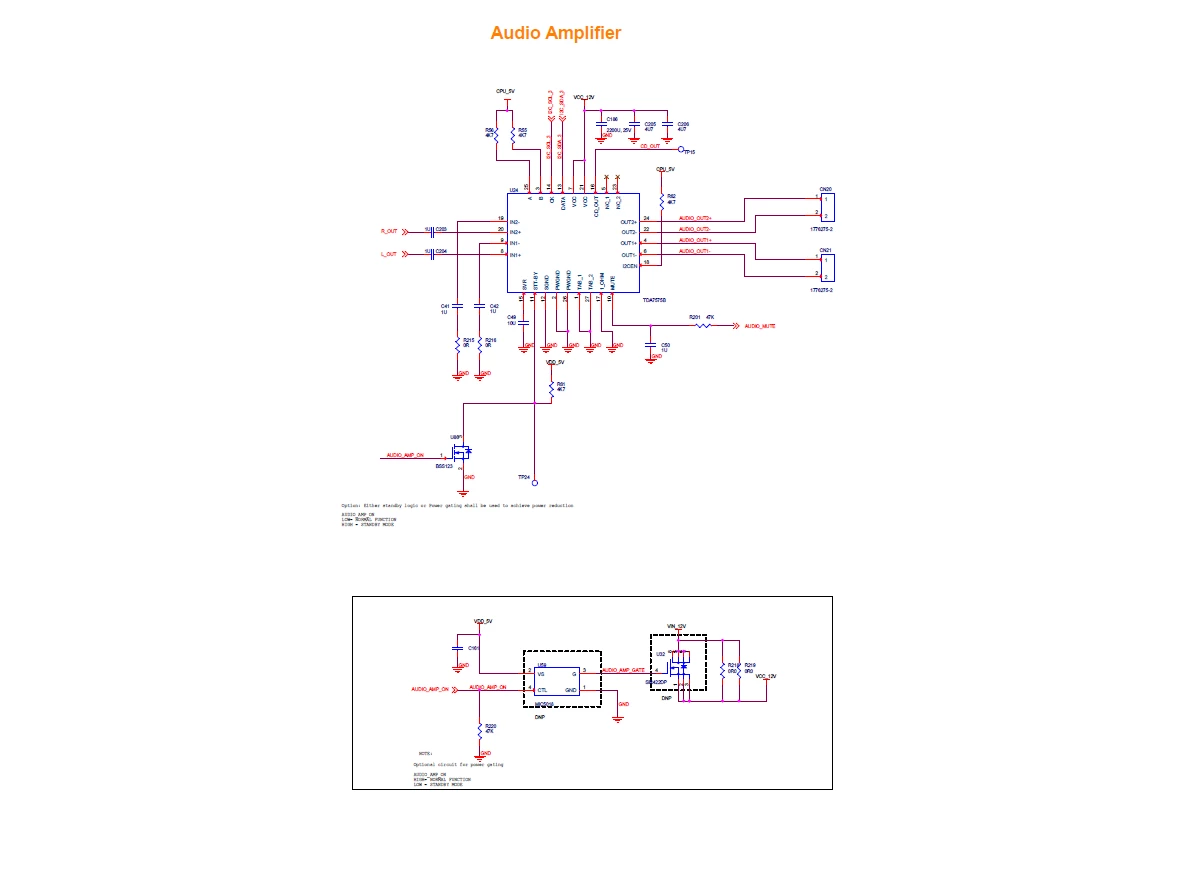

  I am using audio amp. (TDA7575B) which has differential input (IN1+,IN1-) but in our case I have single ended input only from my codec, so i planned to connect IN1- pin to ground with a series capacitor. Is that OK else you have any specific recommendation please answer at the earliest.

REGARDS,

BALA

[Nickname14663_O]

Posted on February 14, 2014 at 13:20

Hello Bala,

This forum is dedicated to operational amplifiers, comparators and current sensing products.

In order to be more efficient with appropriate answers, another e2e forum has been created for audio amplifiers.

In order to have an accurate answer by our audio support team, would it be possible to copy/paste your question to the related forum please ?

Here is the hyperlink shortcut :

https://my.st.com/public/STe2ecommunities/analog/Lists/Audio%20Amplifiers/AllItems.aspx

Sorry for the inconvenience.

Best regards,

Sylvain

[Nickname1623_O]

Posted on February 18, 2014 at 04:48

hi Bala,

yes , you can ground IN- through a coupling capacitor. but the value should be same with coupling capacitor for IN+.

thanks .
