STEVAL-IME013V1(Ultrasound Pulser Waveform Demo)output waveforms has the sharp burrs.

  • January 27, 2021
  • 0 replies
  • 634 views

I try to generate pulses using STEVAL-IME013V1.The power supply information is as follows:

  • VDD=+5V DC
  • VSS=-5V DC
  • HVM=+10V DC
  • HVM_CW=-10V DC

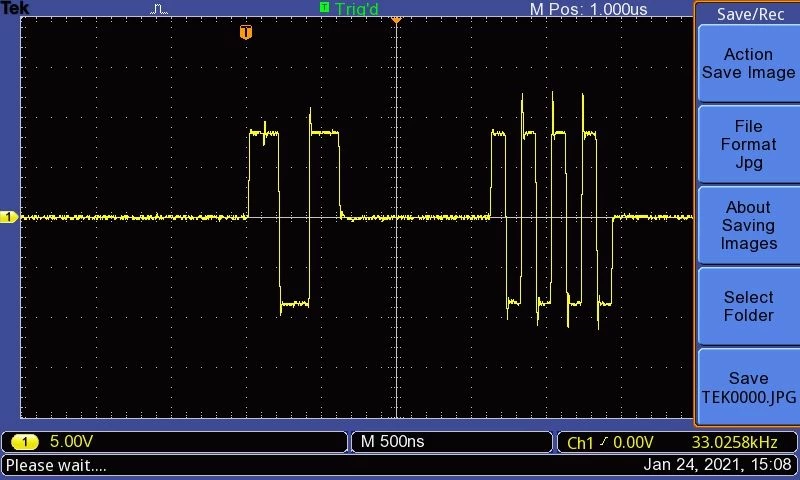

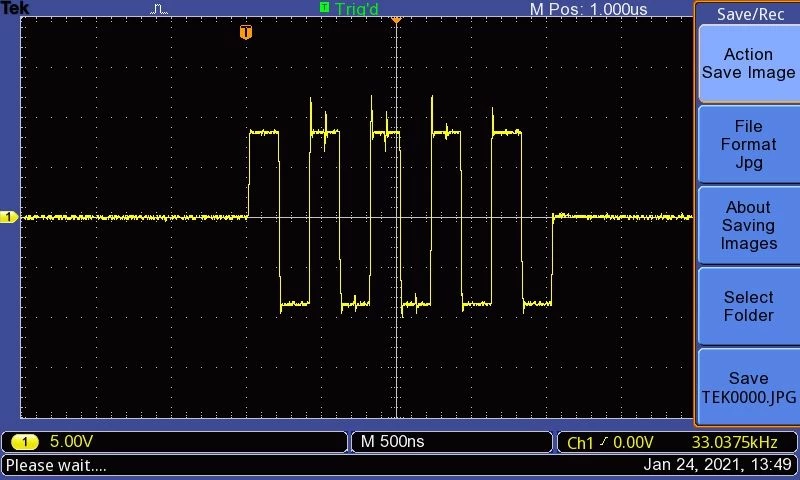

Actually the board can generate the preset waveforms by the power supply.Show as the figure.

But I am curious at the sharp burrs phonemon.The sharp burrs amplitude even exceeds HVP(10V).

How can I solve the problem?


    This topic has been closed for replies.
