Application configuration

[szhan.7]

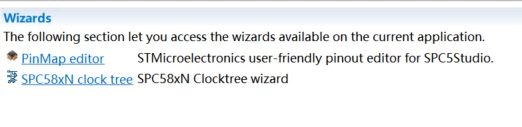

when i configure spc58nn project ,there is pineditor and clock tree ,the configurtion gui. and i cant find any other peripheral configuration gui,any one know this?

[ODOUV.1]

Hello,

did you import an existing SPC58xNxx project ?

or did you created a new SPC58xNxx project ?

What would you need that you do not see ?

Best Regards.

[ODOUV.1]

Select the Platform component and click on the Green "+" to add others components (Init and LowLevelDrivers)

[szhan.7]

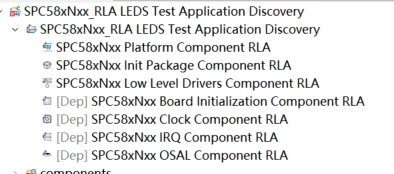

i import example project,there are only two items above,and i want to know if there is any other peripheral wizard,such as canfd ,SDADC or GTM and so on.

[szhan.7]

i import example project,there are only two items above,and i want to know if there is any other peripheral wizard,such as canfd ,SDADC or GTM and so on.

[ODOUV.1]

There are no other Graphical tools.

To configure SDADC or CAN, you need to add and configure the Low Level Drivers component:For GTM, you need to add and configure the GTM component:

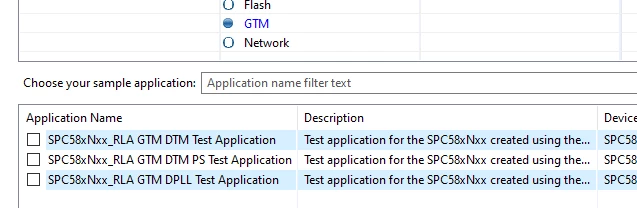

You can take a look at GTM examples:

[szhan.7]

I can see low level Drivers component RLA,but i cant find GTM compennent==

[ODOUV.1]

select platform:then click on +:then select GTM:

[szhan.7]

thank you very much :grinning_face:

[ODOUV.1]

you are welcome ;)

[ODOUV.1]

click onimport samplesbutton NEXT

button FINISH
