Build Tools for SP5Studio

[guo qiang]

Posted on October 17, 2017 at 11:56

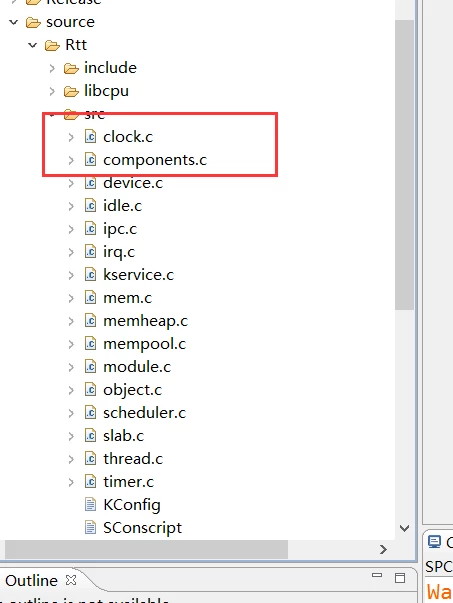

I would like to add some source files to the source folder. the files name are :clock.c   and so on.

but

build faild.

I know that this is a problem in the makefile, and SP5Studio provides  clock.c�?components.c .and My source files also have Clock.c and components.c...Causes the makefile rule to check for an error.

I think you should develop an eclipse plugin，like this:

In this case, the generated Makefile will not appear above the error

[guo qiang]

Posted on October 18, 2017 at 02:35

carannante.procolo

‌

Yvin.Erwan

‌

simon.scullion

‌

bertrand.quesada

‌

[Erwan YVIN]

Posted on October 18, 2017 at 09:19

Hello ,

on a SPC5Studio project , the Makefile is automatically generated (Freemarker)

it is a good idea , we have created a change request for this.

            Best Regards

                           Erwan

[guo qiang]

Posted on October 18, 2017 at 10:29

I saw the eclipse has provided a seemingly similar plug-in, anyway, looking forward to the Build plugin ~

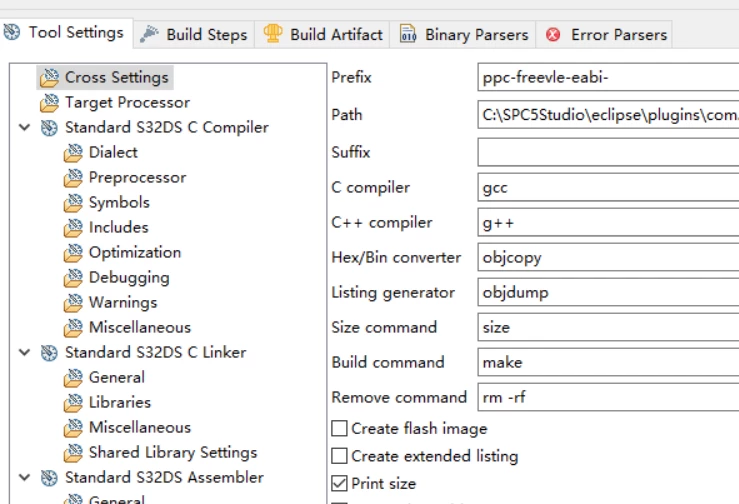

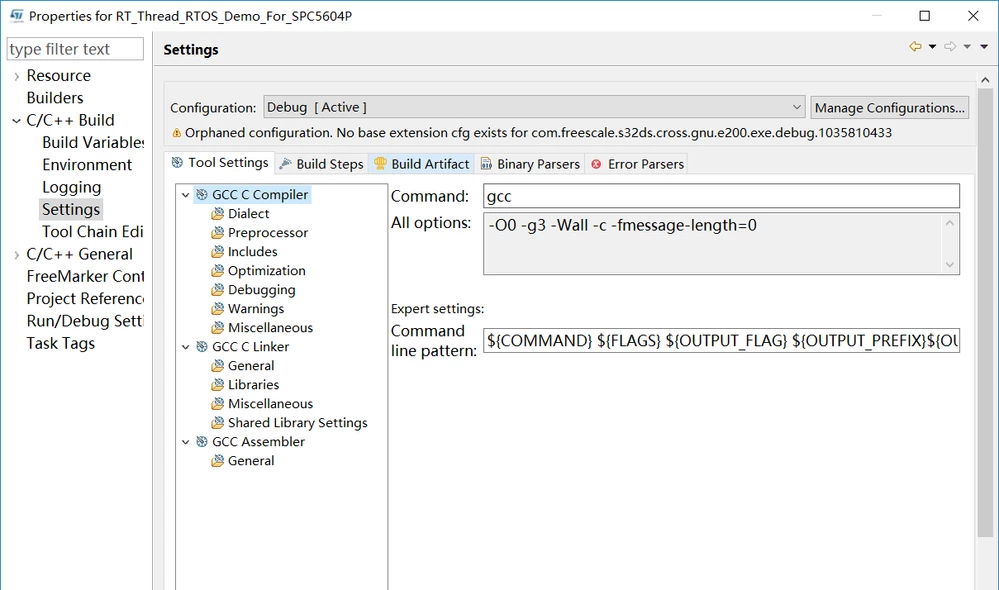

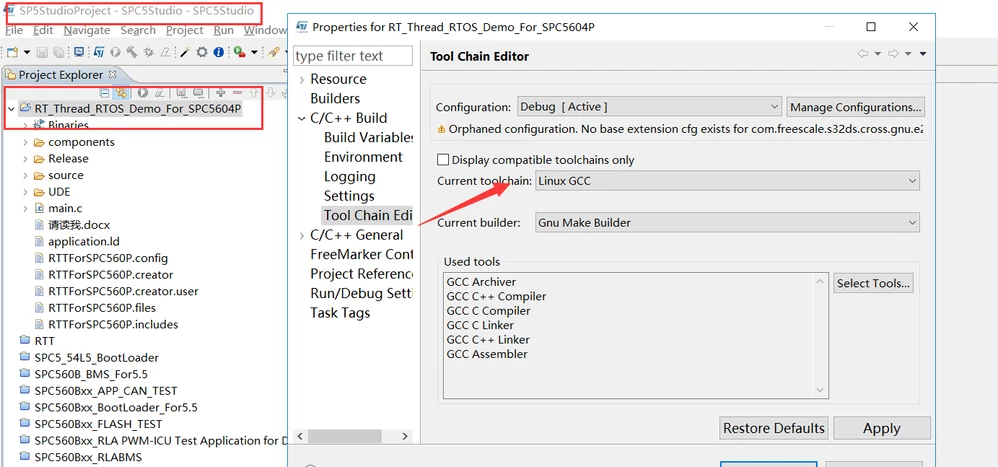

Step 1:

step 2:

By the way, I am currently the RT-Thread RTOS ported to SPC5604B.

https://github.com/RT-Thread/rt-thread

ask a question

Can I debug SPC5604 with PE debugger of MPC5604?

Because the PLS debugger is too expensive.

I have a PE debugger that probably costs $ 30

[Erwan YVIN]

Posted on October 18, 2017 at 10:45

Hello Guo ,

No problem for this ,

you can install it from

https://www.pemicro.com/blog/index.cfm?post_id=124

 by update site mecanism . The link is on the blog

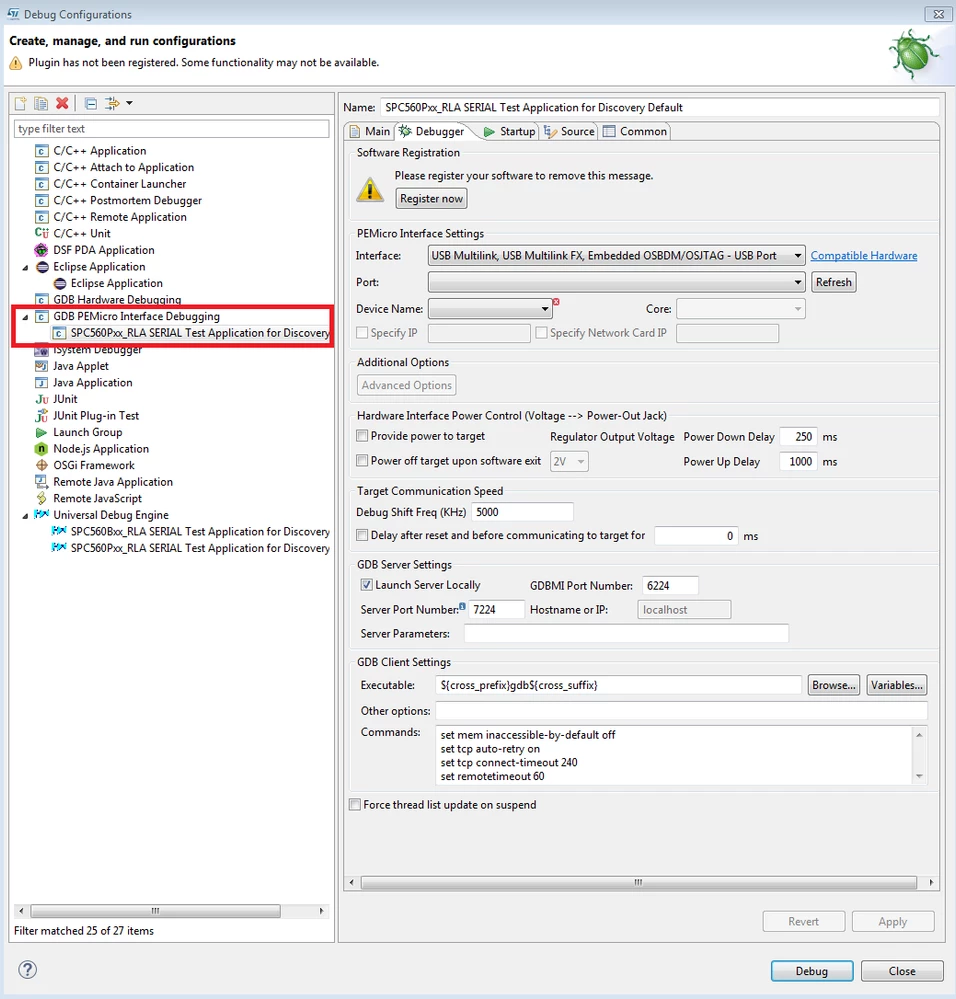

Choose e200 target and create your de

Install is OK

It is not fully tested on our side. We have not PEMicro debugger.

i think that it should work if you create your appropriate debug configurations

      Best regards

                     Erwan
