CAN setup in SPC570S-DISP dev board

  • December 29, 2020
  • 3 replies
  • 1205 views

Hi,

I am trying to setup CAN communication in the SPC570S-DISP dev board. I started with the example available in the SPC5Studio. In the example, internal loopback is enabled, so I disabled it to allow external transmit. I did not change any other settings, as they looked okay to me. In the timing setup section, according to the values that were already set in the example, it has a bit rate of 500 kbps. However, after uploading the code to dev board, and monitoring from a CAN analyzer, no messages seem to be come and the analyzer shows an error. I would like if someone can help me in this matter. I have attached screenshots of the settings and timing setting.

Thank you.

Nisal

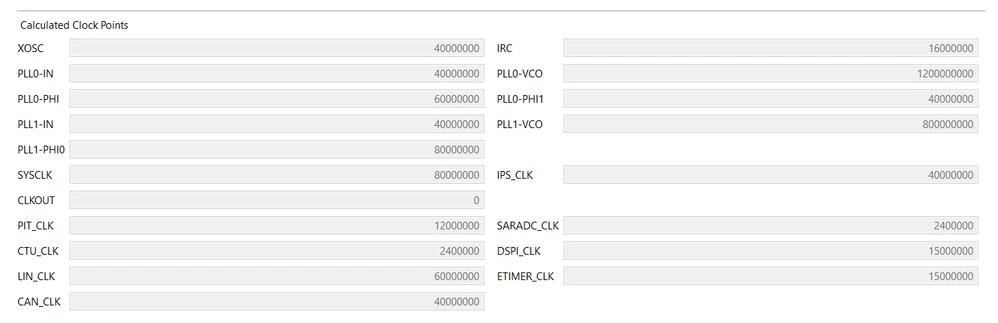

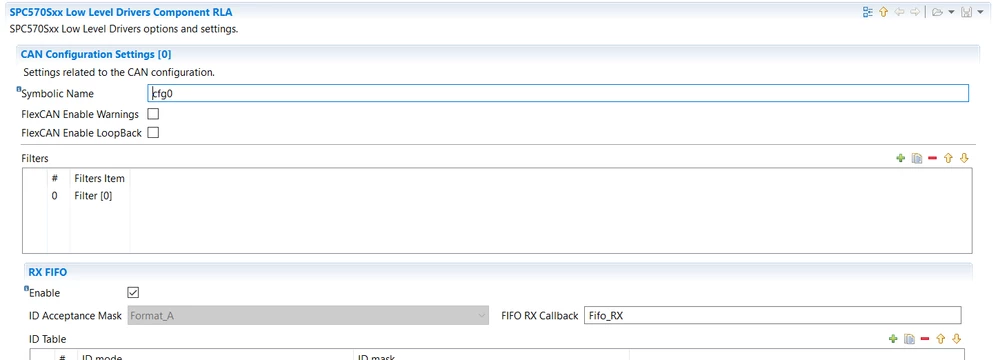

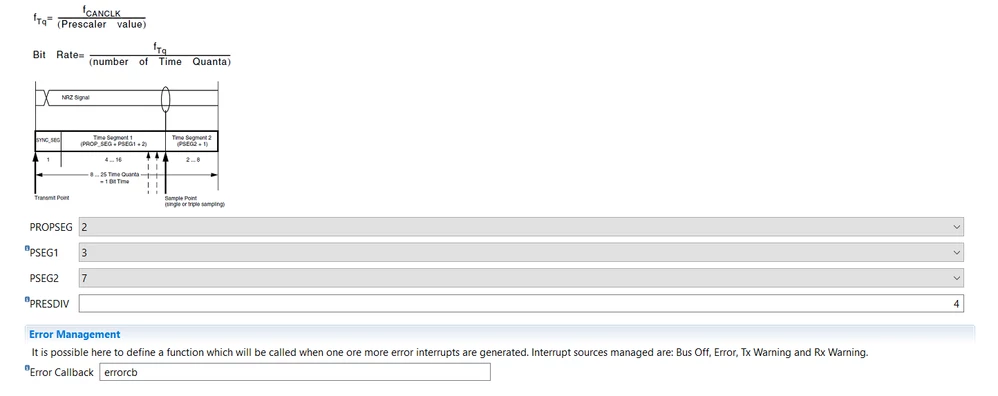

0693W000006H6quQAC.png0693W000006H6mUQAS.pngAccording to the clock settings, the CAN clock is set at 40 MHz,


    This topic has been closed for replies.
    Best answer by Erwan YVIN

    Hello ,

    Which CAN Analyzer do you use ?

    there is a Jumper JP7 on the board have you enable it ?

    Best regards

    Erwan

    3 replies

    Erwan YVIN
    Erwan YVINBest answer
    ST Employee
    January 7, 2021

    Hello ,

    Which CAN Analyzer do you use ?

    there is a Jumper JP7 on the board have you enable it ?

    Best regards

    Erwan

    NBula.1
    NBula.1Author
    Associate III
    January 7, 2021

    Hi Erwan,

    I am using the Mircochip CAN bus analyzer. I have enabled the J7 jumper. Any other things I should check ?

    Nisal

    NBula.1
    NBula.1Author
    Associate III
    January 15, 2021

    Hi Erwan,

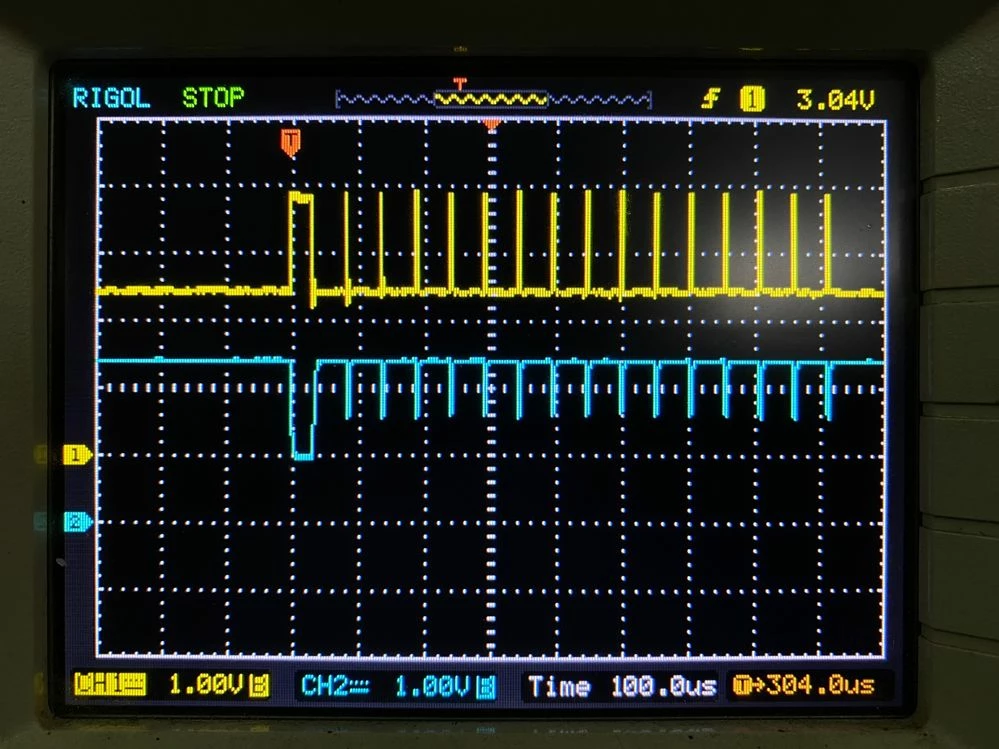

    Attached here is an image seen from the oscilloscope of the signals CANH and CANL. Please be kind enough to take a look at it.

    Nisal


    NBula.1
    NBula.1Author
    Associate III
    January 15, 2021

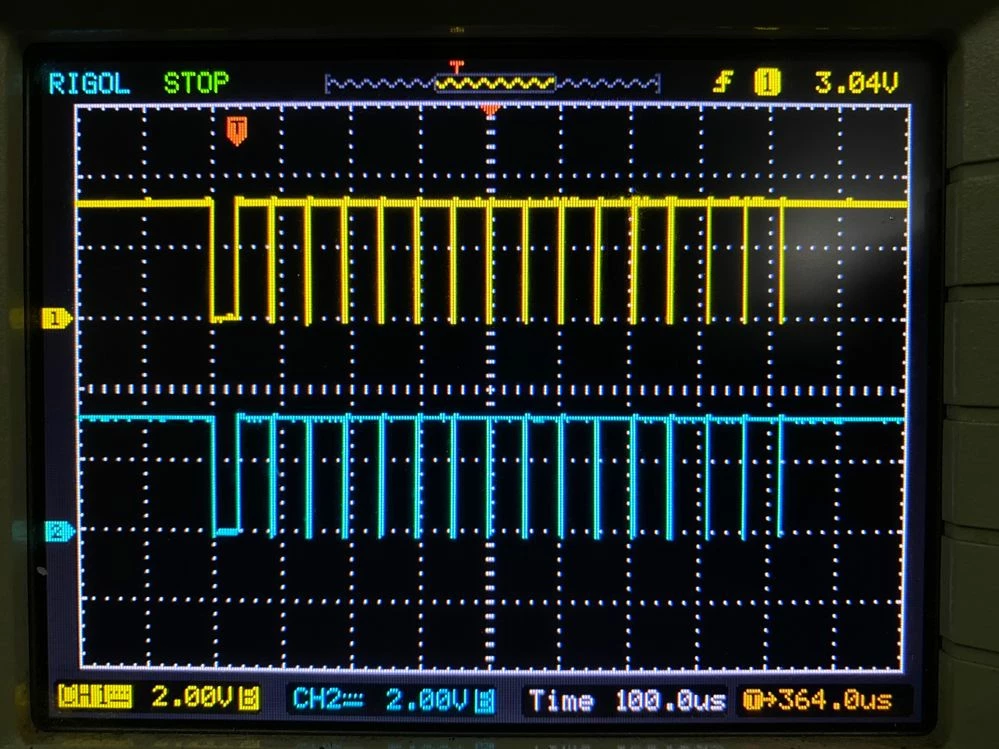

    Here is capture of the CAN RX and CAN TX signals.
