Code does not execute when the ADC was setup in "RTOS example" on SPC560P50L5 which comes with spc5 studio?

[Harsh1]

MCU - SPC560P50L5

First I compile and flash RTOS serial example with no errors. then I run it. No errors were detected. same process was followed to check ADC example. There also no error were found. Then I combined both codes as follows(attached). It compiled with no errors. But it did not run smoothly. The LEDS always lit.

[Erwan YVIN]

Hello ,

Have you tried with the last version of SPC5Studio ?

Warning: Component com.st.spc5.components.platform.spc560pxx_rla version (1.16.0) doesn't match installed component version (1.16.1)

Version set to 1.16.1.

Warning: Component com.st.spc5.components.init.spc560pxx_rla version (1.16.0) doesn't match installed component version (1.16.1)

Version set to 1.16.1.

Warning: Component com.st.spc5.components.lld.spc560pxx_rla version (1.16.0) doesn't match installed component version (1.16.1)

Version set to 1.16.1.

Warning: Property i2c_settings[1]/i2c_sw_configurations[1]/configs[1]/settings[1]/slave_address[1] was not found in configuration file.

Warning: Property i2c_settings[1]/i2c_sw_configurations[1]/configs[1]/settings[1]/slave_address[1] was not found in configuration file.

Warning: Property i2c_settings[1]/i2c_sw_configurations[1]/configs[1]/settings[1]/slave_address[1] was not found in configuration file.

Warning: Property i2c_settings[1]/i2c_sw_configurations[1]/configs[1]/settings[1]/slave_address[1] was not found in configuration file.

Warning: Property i2c_settings[1]/i2c_sw_configurations[1]/configs[1]/settings[1]/slave_address[1] was not found in configuration file.

Additional things :

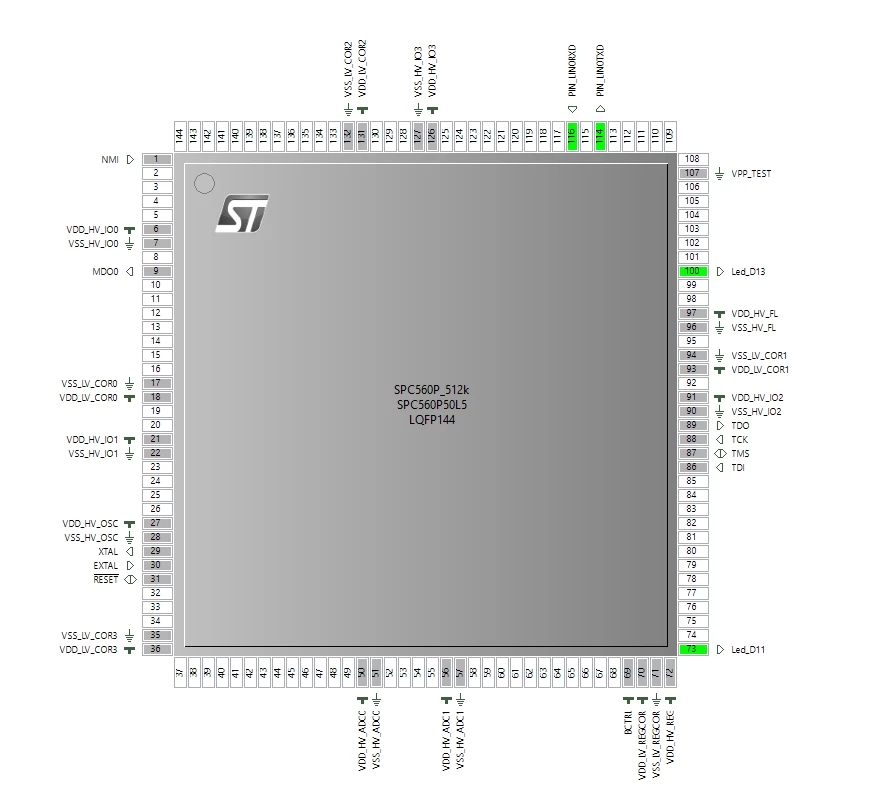

Your pinmap does not contain ADC Settings.



Best regards

Erwan
