Debug first project in SPC5 Studio

[Parth1]

Hello

I am new to SPC5 Studio, please guide me how I can debug my first project.

I am working with SPC5 Studio ver 6.0.0. and have SPC56D_DISCOVERY Eval board.

Thanks

[zambrano.luigi]

Hi,

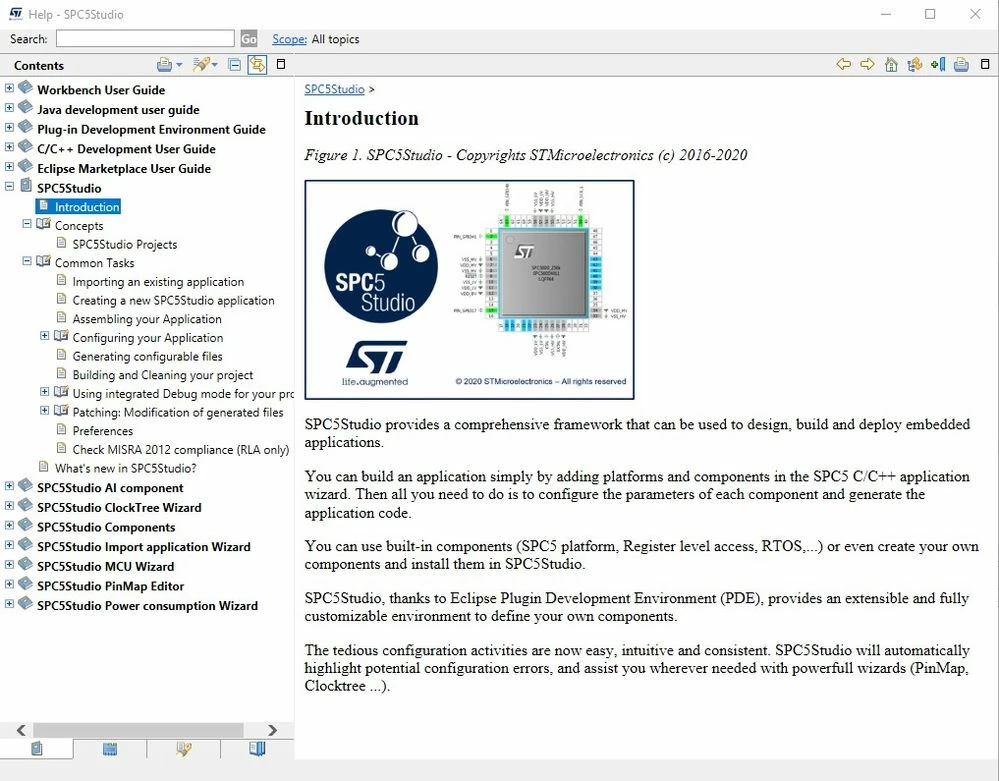

please, refer to the help integrated within the tool (Help -> Help Contents). There are specific sections dedicated to SPC5Studio.

Regards,

Luigi

[Parth1]

Hi

Thanks,

I have gone through the help content and faced following issues:

• License error:

• Error with using PLS integrated debug option:

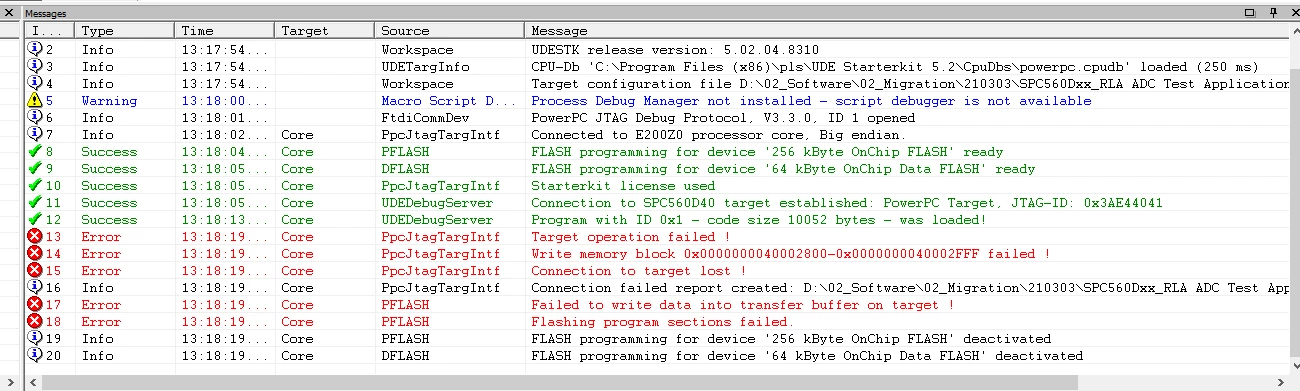

• I have externally used UDE STK window to debug the project and following error is observed while programming.

kindly let me know, where I am wrong.

Thanks

[zambrano.luigi]

Hi,

which UDE STK script do you have selected to connect to the target? Could you try to load the script available in the UDE folder (spc560d_discovery_debug_jtag.cfg) within the test application folder?

Regards,

Luigi

[Parth1]

Hi

using "Debug.wsx" file in UDE folder of the project.

Thanks for your help, I am able to debug now.

Also, please let me know how to use integrated PLS debugger from the software. Now I am externally using it and opening my configuration file in it.

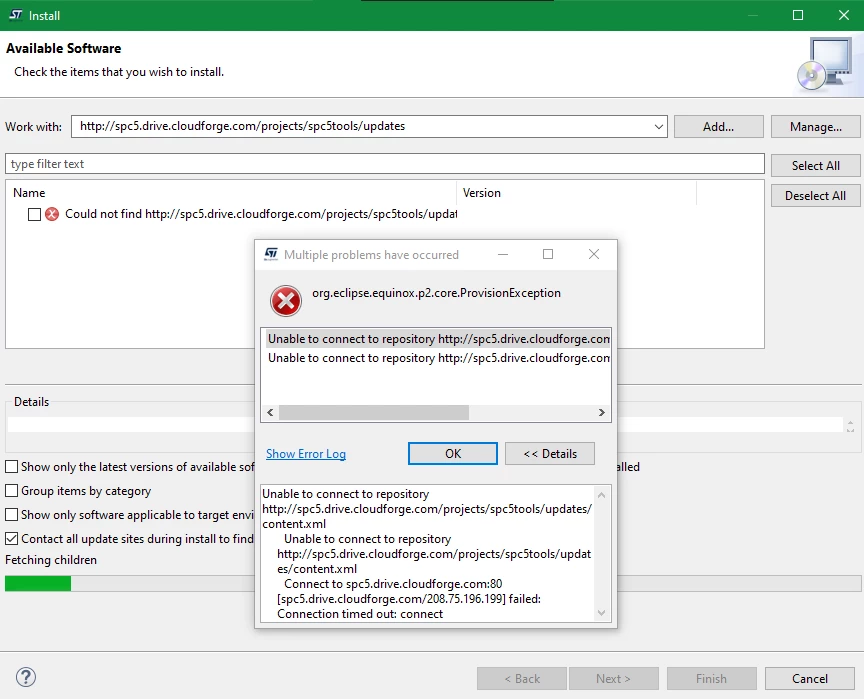

Following is the attached snip of installing integrated PLS debugger

Thank you

[Erwan YVIN]

Hello ,

Integrated PLS Debugger (UDE) is a 32 bits product.

it is not compliant anymore with SPC5Studio 6.0.

a change request has been submitted in PLS company

you should use PLS UDE Tools as as external use.

https://community.st.com/s/question/0D53W00000JjNVCSA3/unable-to-install-pls-ude

Best regards

Erwan
