How to configure the trigout signal of the PWM to the TGS module of the CTU module

[capeter]

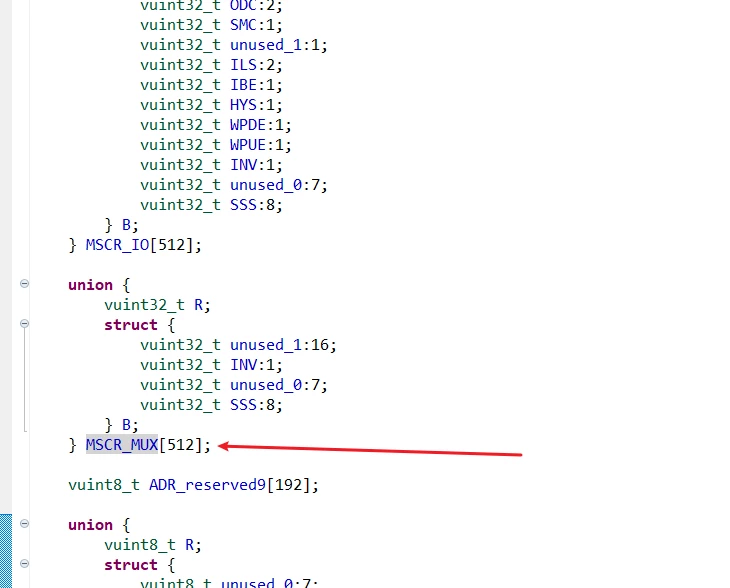

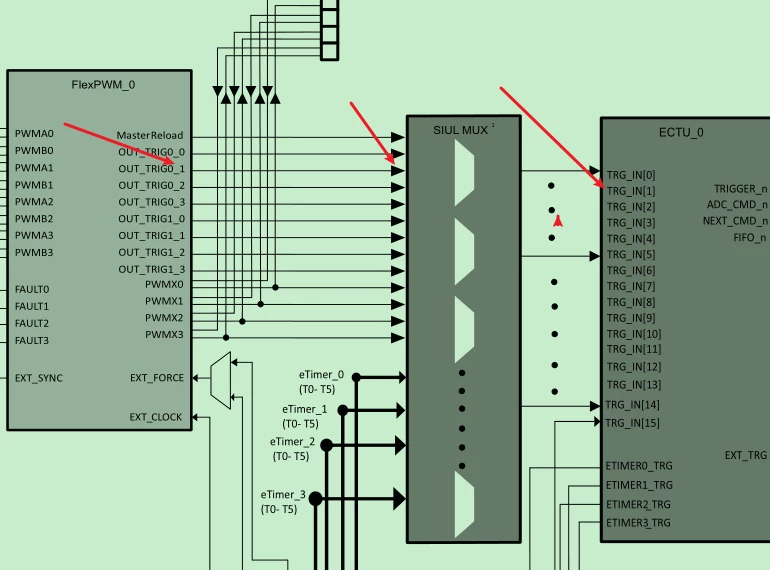

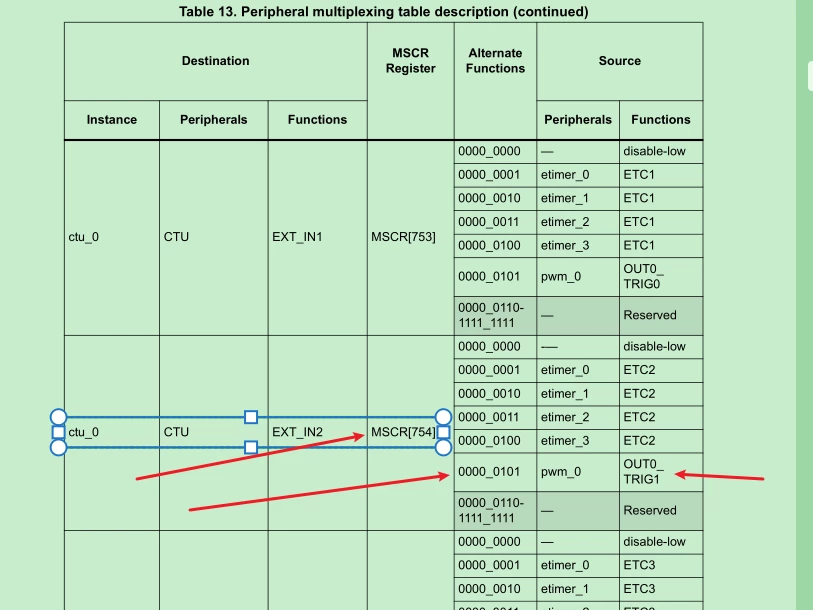

Requirement: The CTU trigger signal from the PWM output needs to pass through the SIU MUX module and then reach the CTU module.Found problem: When configuring the MSCR registers of the SIU2, I found that the description in the manual does not match the registers specified in the official header file. How do I proceed with this configuration, does the manual prevail or does it?

[Erwan YVIN]

Hello Capeter ,

could you give me your device used and device number ?

maybe your RM is not updated

Best regards

Erwan
