how to enable JTAG in SPC56EL60?

[DPate.1133]

Hello there,

I want to enable/disable JTAG in SPC56EL60 microcontroller, however i did not found such information in reference manual.

Could you provide clarify how can JTAG can be enabled/disabled from Sw?

Thanks

[Erwan YVIN]

Hello ,

You can find some detailed information n the chapter 30 JTAG Controller (JTAGC)

Which board do you use ?

Best Regards

Erwan

[DPate.1133]

Hello Erwan,

I gone through chapter 30 JTAG Controller , however i did not find any step to activate deactivate jTAG using Sw.

There are some step mentioned to activate JATG using HARDWARE.

And i am not using any board , but SPC56EL60 used in our project.

So could you please provide some info about how to activate/deactivate JTAG using software ? and it is possible to activate using Sw or not ?

Also by default JTAG in SPC56EL60 will enabled ?

It will be very helpful for me if you provide your response on this.

Thanks in advance

[Erwan YVIN]

Hello DPate ,

Do you use a discovery board , Motherboard + Chip or your own board ?

Best Regards

Erwan

[DPate.1133]

Hi Erwan,

As mentioned in previous reply, i am not using any board, but i am using SPC56EL60 in our own board.

Could you please clarify the point i mentioned above?

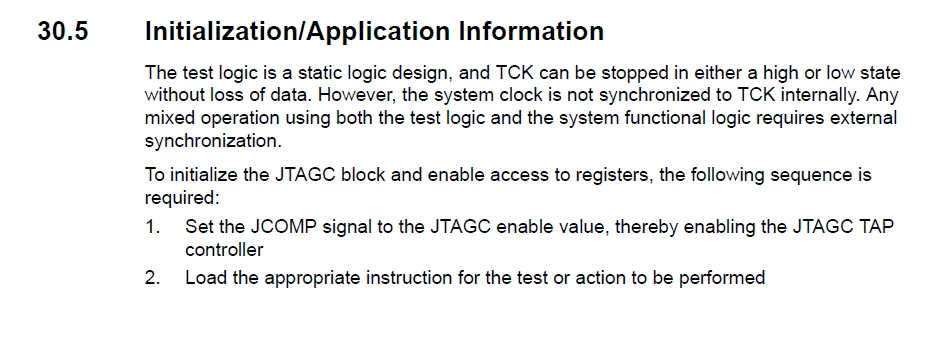

Also i found only 1 method to activate JTAG , and i think it is not based on Sw. please check attached Snapshot.

Thanks
