i am new to spc5 studio. can any one guide me proper way to debug and run.

[kjay]

i have compiled adc application from examples, i dont know how to import program to my spc56el70l5-disp kit using spc5-udestk.can any one help me or point me in right direction.

[Erwan YVIN]

Hello kjay ,

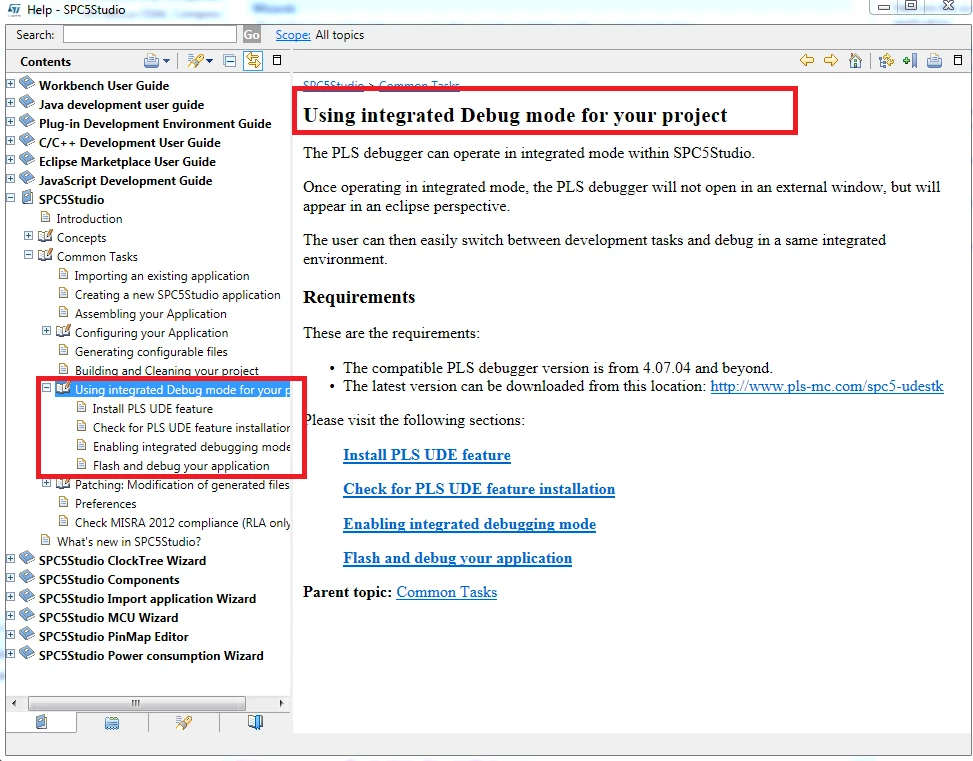

In the help section there is a section how to debug and run.

you can follow this tutorial

Best Regards

Erwan

[Pooja WANI]

Follow the following steps :

1. Open the workspace in UDESTK (UDE -> debug.wsx)
2. Load Program (build -> out.elf)
3. UDE FLASH/OTP memory programming tool window will pop up. Select "Program all"
4. After execution of the program, press "exit"
5. Start Program/ F5.
