PE micro interface debug plugin for SPC5Studio,Run and debug success!

[guo qiang]

Posted on October 22, 2017 at 09:33

you need ：

1.SPC5Studio

2.a Board for SPC5XXX

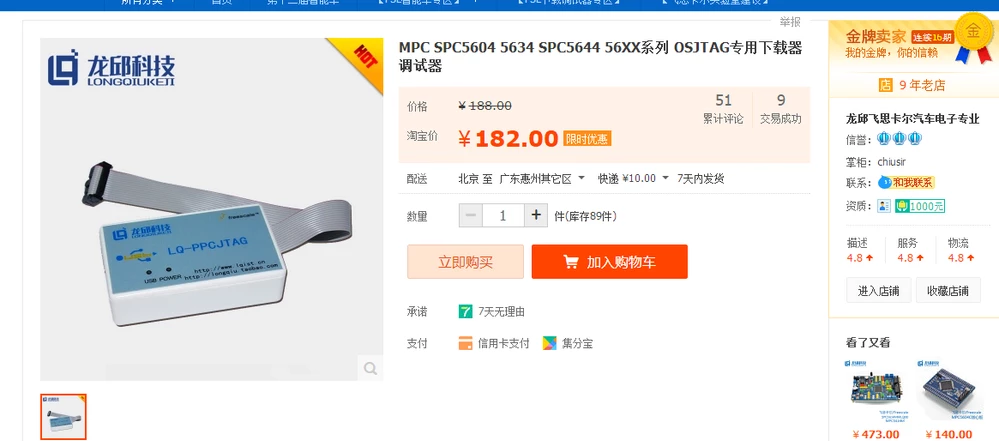

3. osjtag  Â¥182 =   â‚¬

23.3375

   =  $

27.4987 this is  very Cheap~

osjtag link address:

https://item.taobao.com/item.htm?_u=mnm3su9ffa4&id=13468787182



step 1:

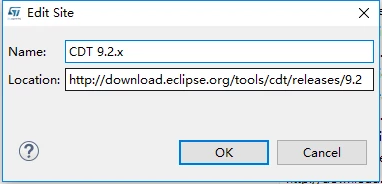

install the  CDT 9.2

step 2:

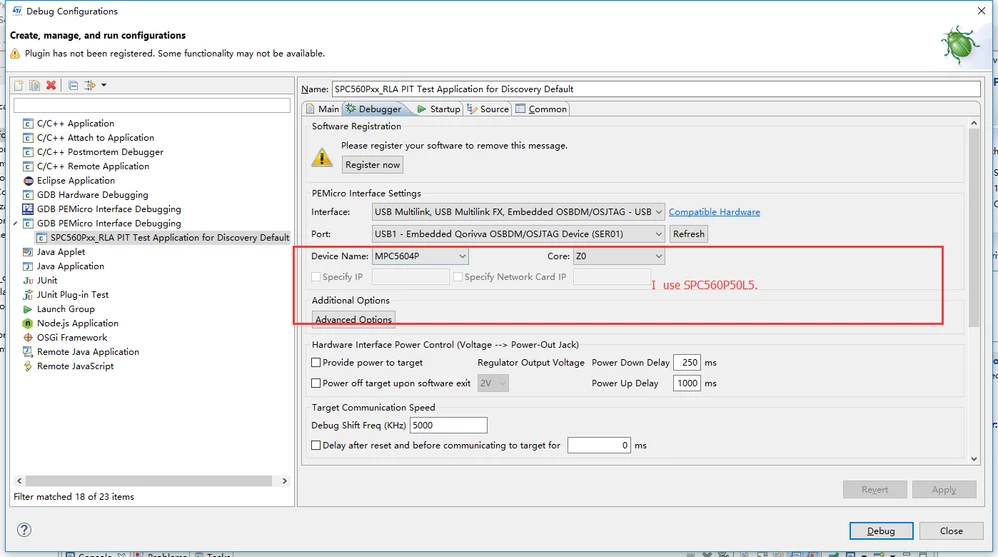

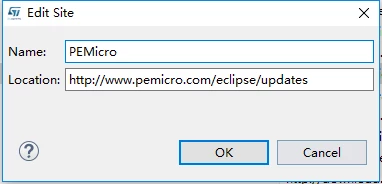

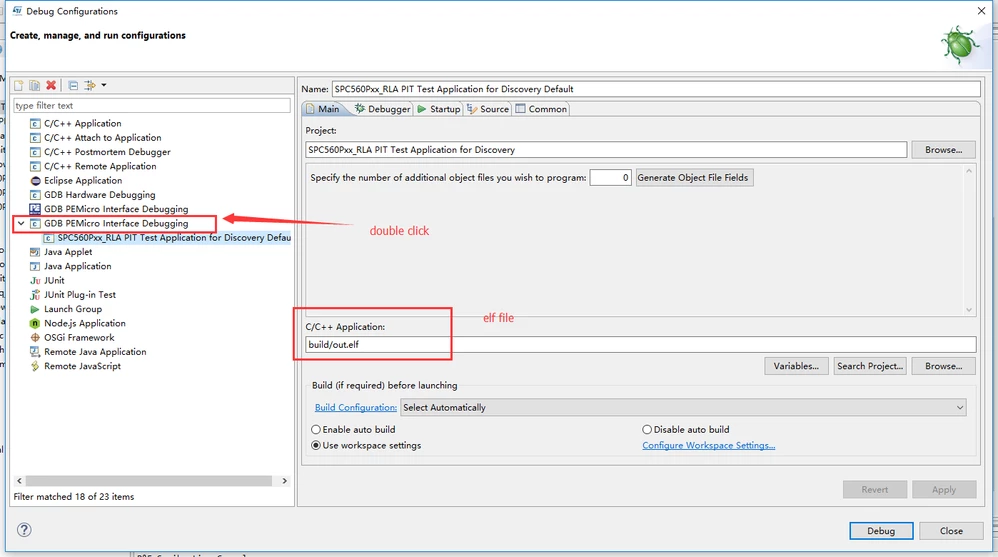

install the   pe micro interface debug plugin for eclipse

step 3:

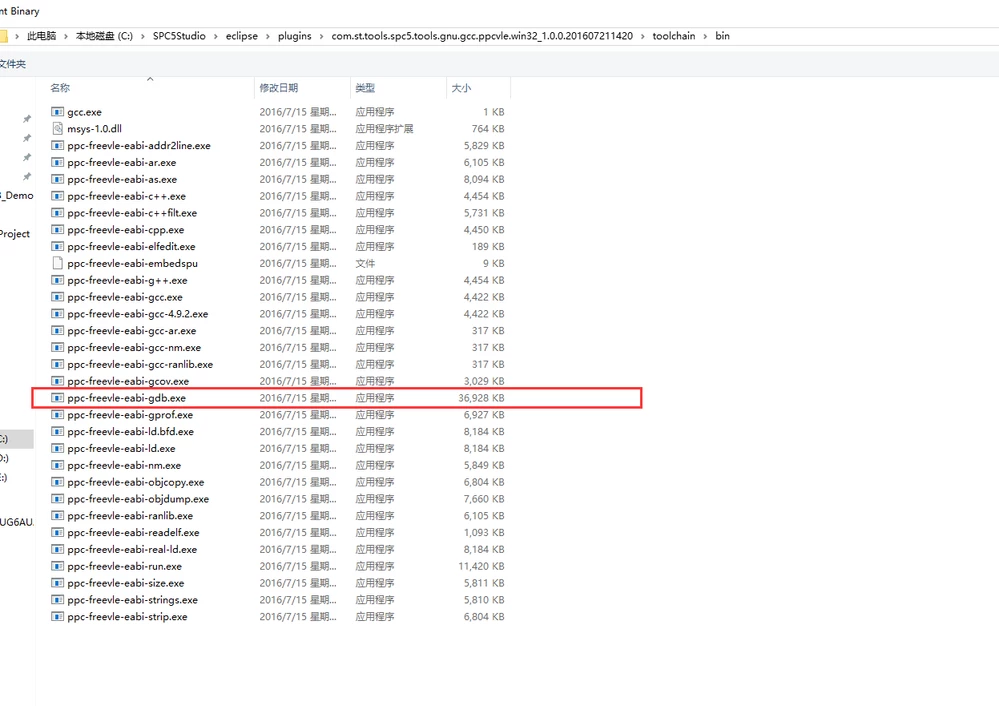

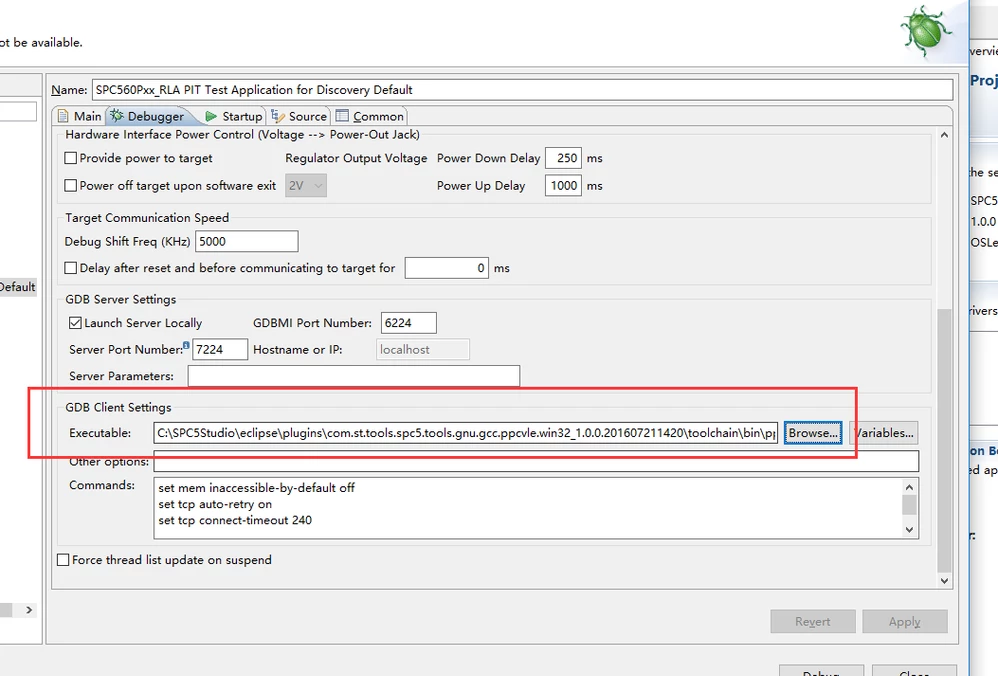

select     ppc-freevle-eabi-gdb

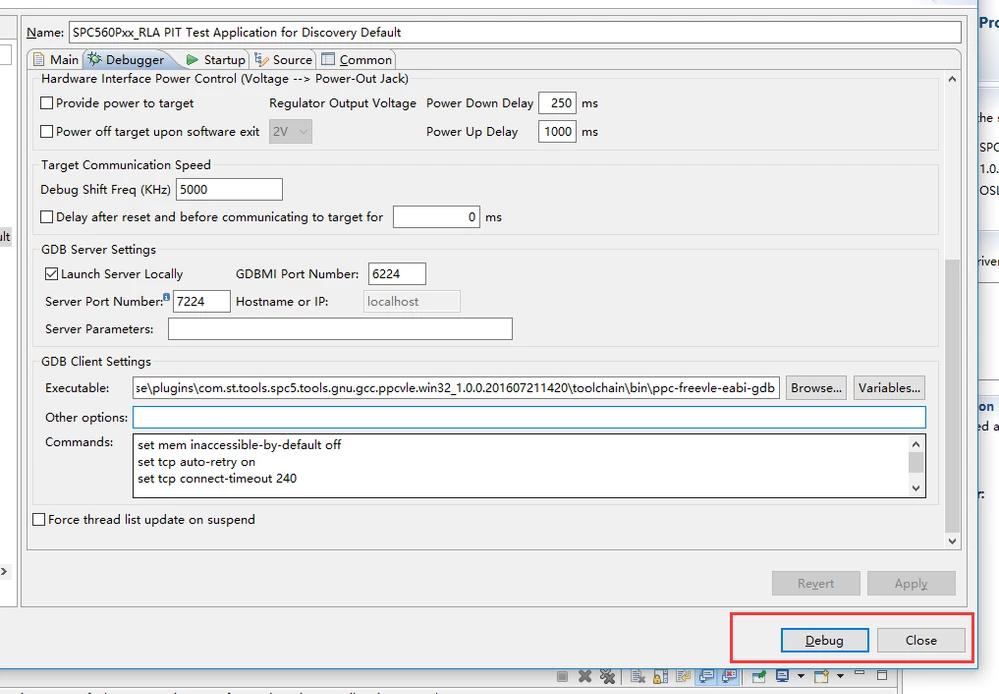

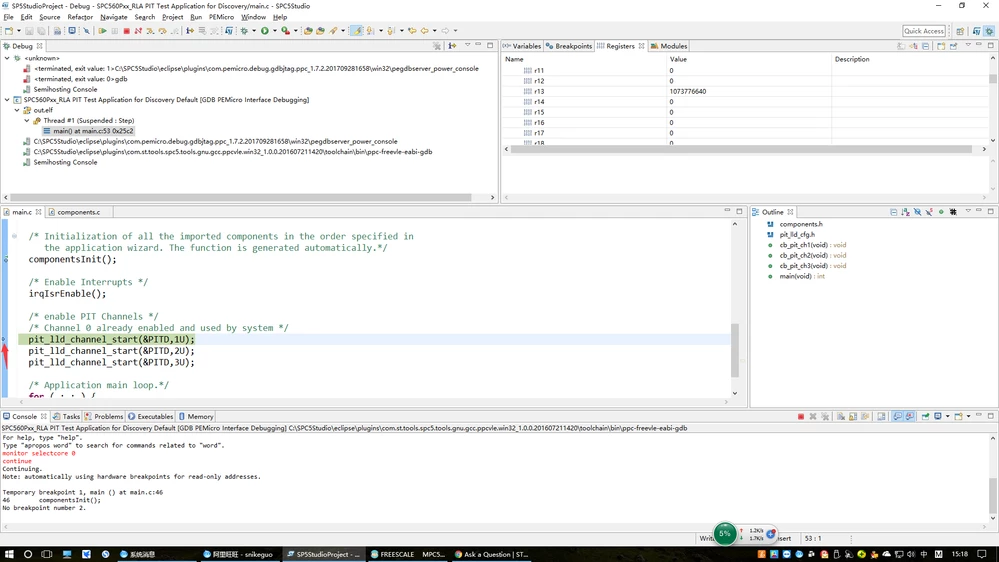

click the debug button�

Running and debugging success!

ha~ha~

Yvin.Erwan.001

‌

null

[Erwan YVIN]

Posted on October 24, 2017 at 09:39

Good news Guo ;)

CDT plugins / features are very good to integrate alternate debugger solution.

I am converting your post in a document

               Best regards

                             Erwan
