Problem in loading .hex and .bin file

[Santhamurthy R]

Posted on March 24, 2017 at 11:38

Hello All,

I am using SPC560B54L5 Discovery board(SPC560B-Discovery), SPC5studio version 5.2.3 and UDE Visual Platform 4.2 version.

When I  try to load the application the .elf is working fine. If i try to make use of .hex or .bin file (as per my requirement)

I am facing following problems,

When I try to load ''.hex'' file the code gets loaded successfully but while running it is throwing an error as '' Unknown Break cause''. Similarly, when I try to even  load ''.bin'' file it prompts with ''Unknown File Format'' error.

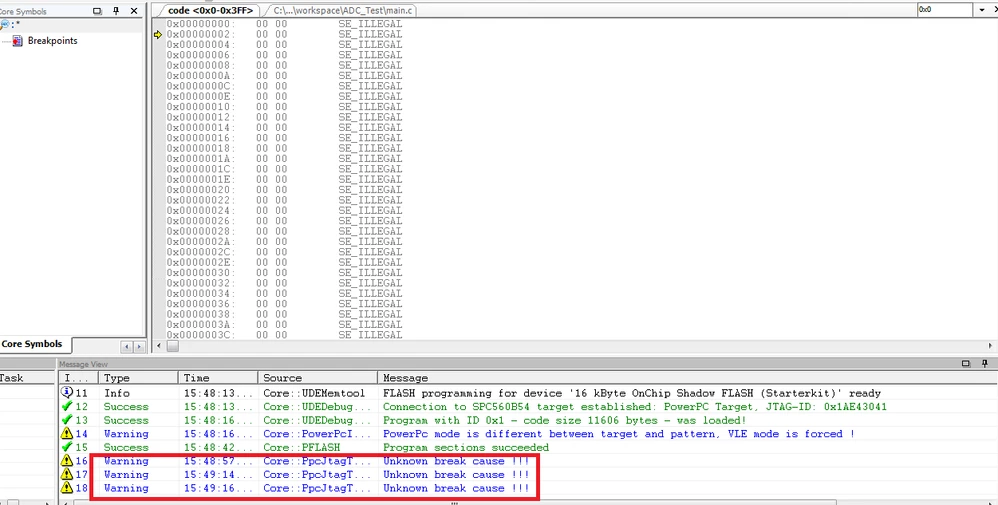

Error While loading .hex file:

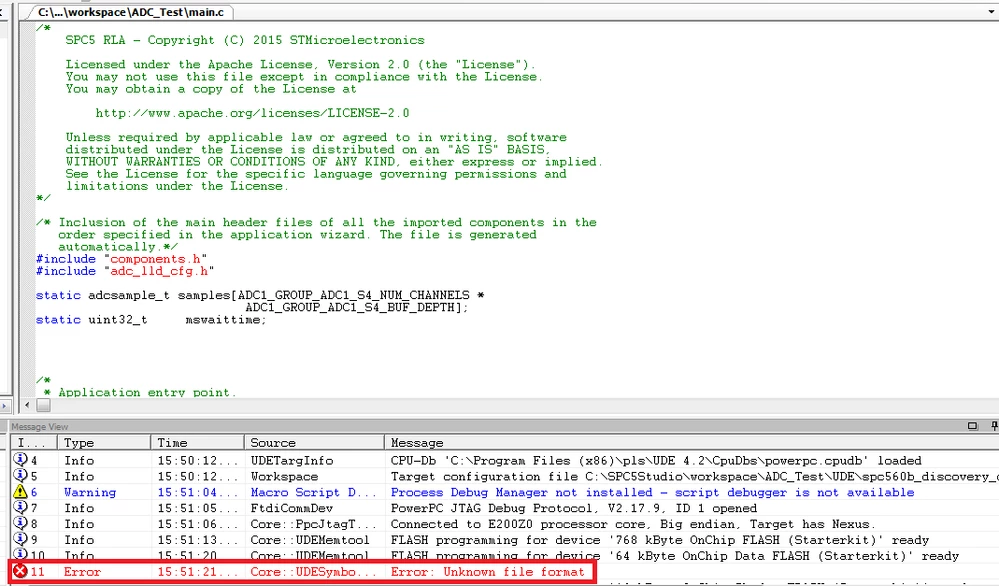

Error While loading .bin file:

Kindly suggest if I need to do the changes to the settings or preferences in IDE (or) UDE

Regards,

R.santhamurthy

[Erwan YVIN]

Posted on March 24, 2017 at 11:51

Dear

R.santhamurthy

,

PLS UDE is debugger

You can not debug by a hex file and put some breakpoints

if you want to debug , you have to use the symbol file.

PLS UDE is using Memtool to load in the flash your  hex file.



              Best Regards

                                Erwan
