Rx can't receive data

[zeke.huang]

Hi all,

​

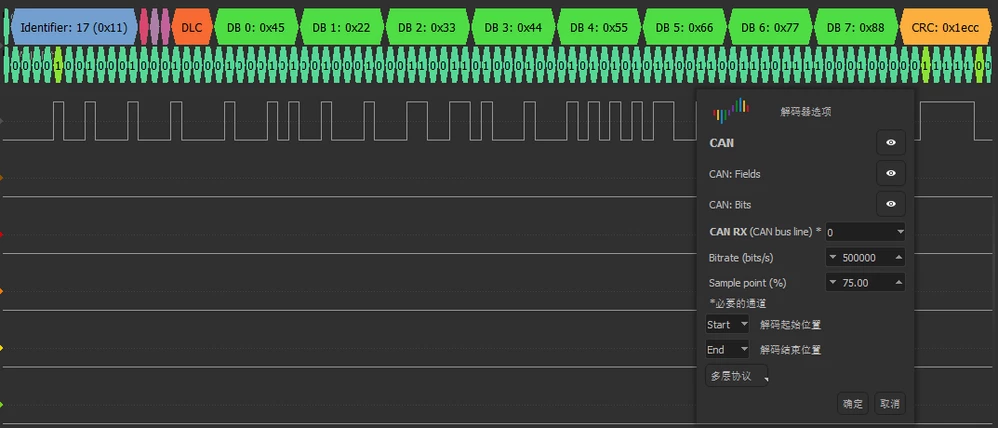

Could you check this problem for me? It can not received information from canoe, data(from transceiver) already reached RX pin of SPC5.​

The data transmit from Conoe is : ​

The source code in Attachment.

​I use external OSC is 8M.

CanBitRate is 500 kbps.

​

Thank you very much.

[Erwan YVIN]

Hello ,

Maybe you should debug the Rx Part by using PLS UDE debugger.

or contact your local FAE.

I have not the environment in order to reproduce the issue.

Best regards

Erwan

[zeke.huang]

Hi ​Erwan,

​

Thank you for your reply.

​

The problem and the solution is that the circuit on the TX side is not connected.

​

Best regards

Zeke​
