Saradc configuration.

  • February 1, 2022
  • 1 reply
  • 1074 views

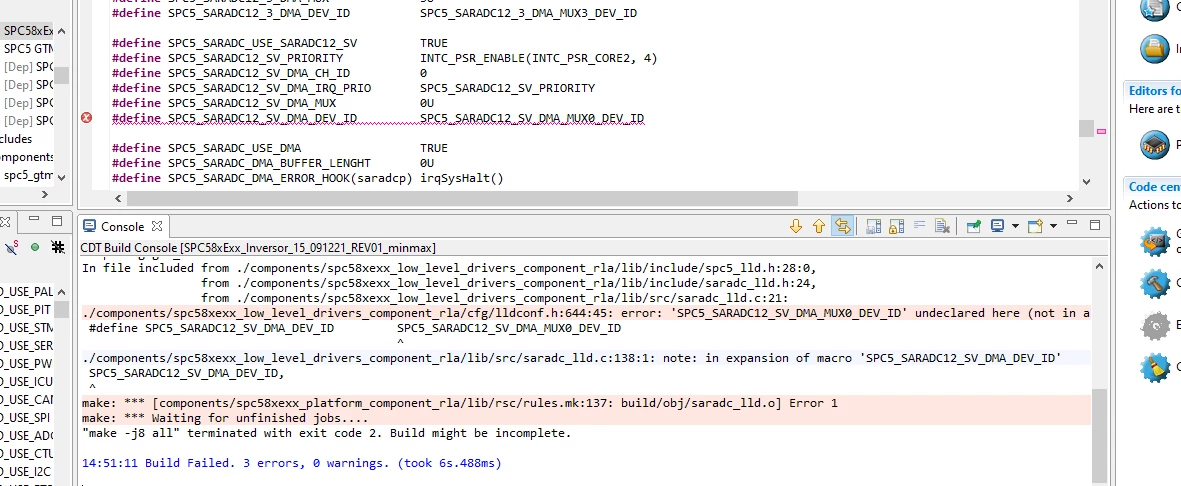

I'm having trouble configuring saradc , as shown in the attached figure. I'm working on core 2 while on core 0 there is a program already made using the GTM module. Is there any relationship? Any suggestions to fix the attached error? Thanks!!

    This topic has been closed for replies.
    Best answer by Giuseppe DI-GIORE

    Hello,

    ​

    SPC5_SARADC12_SV_DMA_MUX0_DEV_ID is defined in spc58xe_registry.h

    However for SPC58xE it should be defined to 1

    Regards.

    1 reply

    Giuseppe DI-GIORE
    Giuseppe DI-GIOREBest answer
    ST Employee
    February 27, 2022

    Hello,

    ​

    SPC5_SARADC12_SV_DMA_MUX0_DEV_ID is defined in spc58xe_registry.h

    However for SPC58xE it should be defined to 1

    Regards.
