SPC5-UDESDK JTAG debugger stopped working after PC was rebooted.

[KShar.5]

I am setting up a development environment with SPC5-Studio, Discovery Plus Kit for SPC56 L line (with SPC56EL70L5 MCU) and SPC5-UDESDK JTAG debugger.

Initially I was able to set up the SPC5-Studio and upload an example application (LED blinker), but after rebooting my PC the UDE STK tool stopped connecting. No matter what settings I use - the result is the same, the debugger can not connect to the board. I tried reinstalling, UDE and SPC5-Studio to no avail.

To debug the problem I have connected a logic probe to the SPC5-UDESTK pins (TCK, TDI, TDO) and I see absolutely no activity on those pins when I attempt to connect with the UDE STK software.

It seems that the SPC5-UDESTK device stopped functioning correctly. The Windows OS detects the SPC5-UDESTK device correctly.

What can I do to restore the functionality of the SPC5-UDESTK device?

[Erwan YVIN]

Hello Konstantin ,

could you check your PLS USB/JTAG by FT_Prog

https://ftdichip.com/utilities/ ?

Best regards

Erwan

[KShar.5]

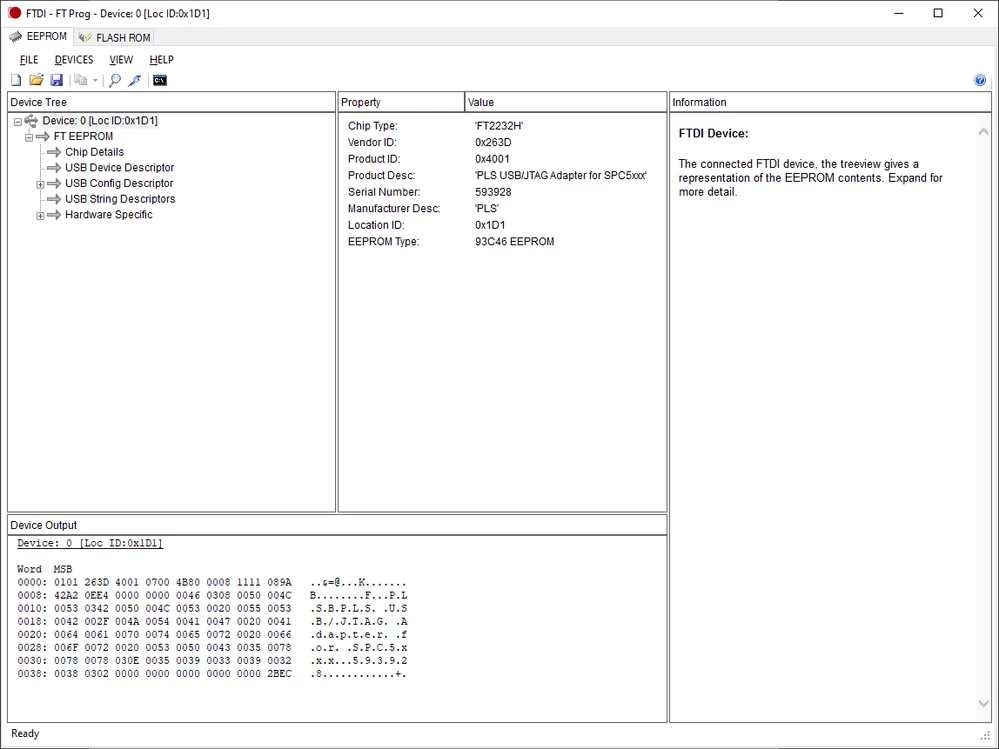

Device is detected. What I should be looking at?



XML template is available here: https://pastebin.com/raw/Dtbc9RAv

[KShar.5]

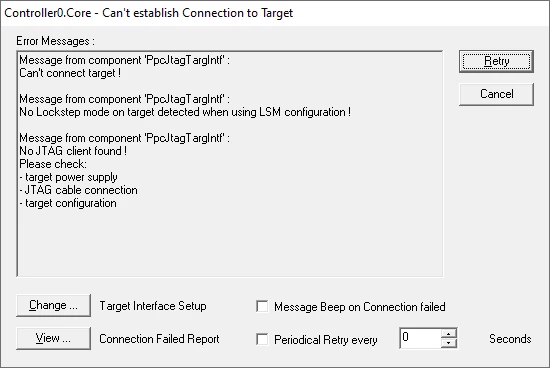

UDE STK still doesn't connect:



Connection failure report: https://pastebin.com/raw/etf6iDiq

[KShar.5]

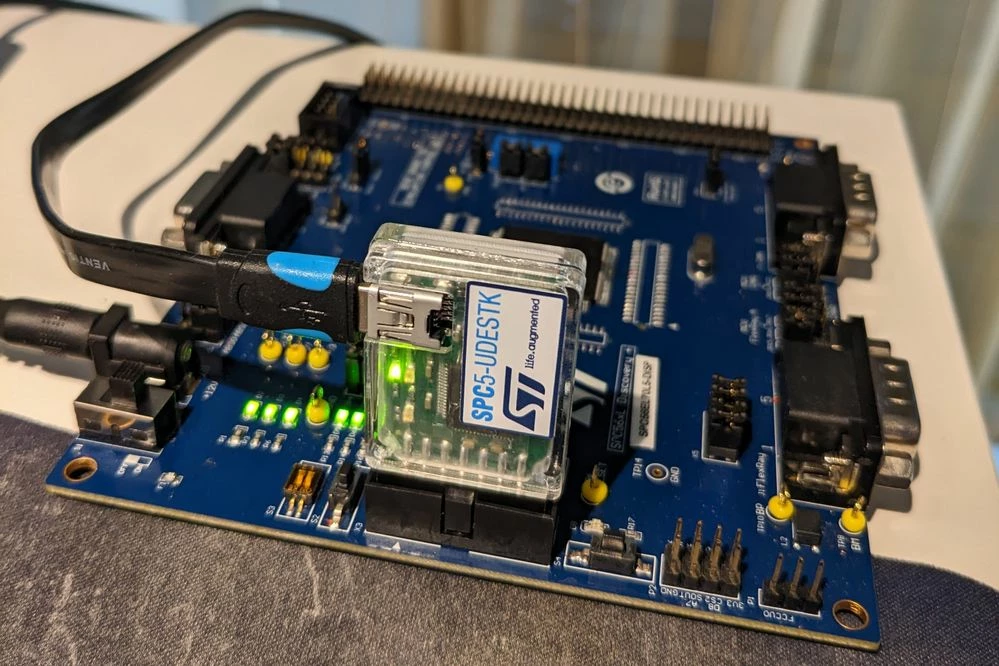

Photo of the device, connected to the EVB:

[Erwan YVIN]

Maybe a reset escalation

[KShar.5]

Reset escalation is hardly an answer as power cycling doesn't solve it.

See also my initial comment, especially this part:

---

To debug the problem I have connected a logic probe to the SPC5-UDESTK pins (TCK, TDI, TDO) and I see absolutely no activity on those pins when I attempt to connect with the UDE STK software.

---

There is no activity on the JTAG pins when I press the "connect" in the UDE STK debugger software.

[KShar.5]

Dear ST!

Please kindly consider actually looking into the issue, rather than guessing what it could be. Please also consider reopening the support case #00165293 which you have closed without providing a resolution.

If you need more information to troubleshoot this I would be happy to provide it.
