spc560 ADC can't read analog quantity

[Jason Ren]

On spc560b MCU,

I use PE [7] as ADC input,

But why can't I read the analog quantity

There is no problem with the hardware

How to configure the software part

[Jason Ren]

PE [7] on the pin configuration page, as shown in the figure

[ODOUV.1]

Hello,

PE[7] is not an analog input

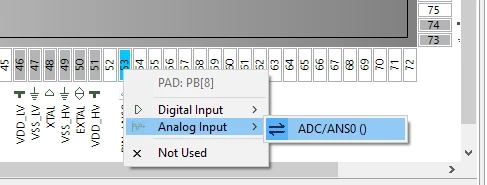

You can use PB[8] for example in Pin map wizard:



Best Regards,

-Olivier
