SPC572 with SARADC in DMA mode
- July 25, 2024
- 0 replies
- 1120 views
We have the SARADC up and running in DMA mode on 1 channel as per the sample application.
But when we add 2 more channels we can't get it to go throgh the callback routin. (saradcconfdma_ch1_conf_cb & saradcconfdma_ch2_conf_cb) and hence we don´t get any reading from the AD.

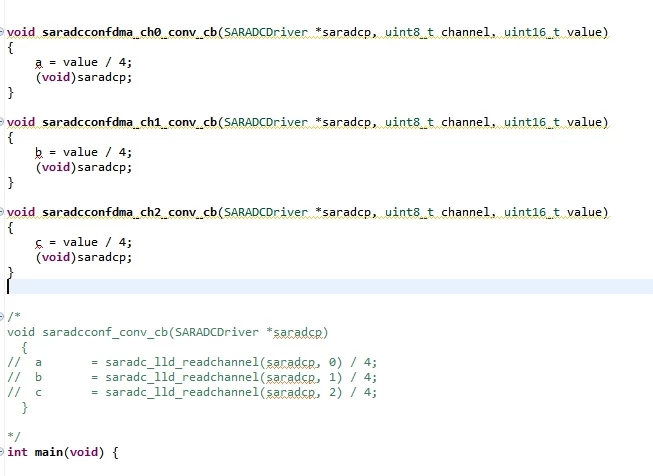

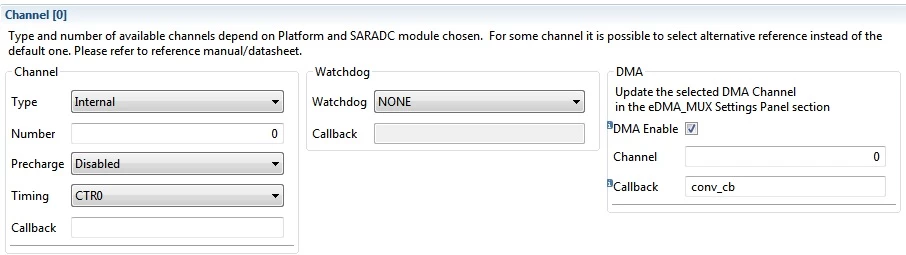

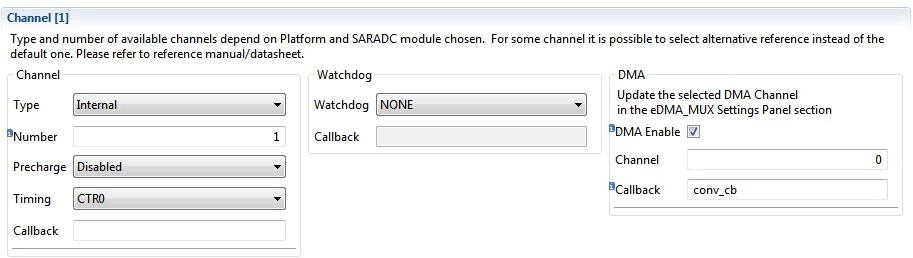

Attached is pictures of the program and setup
What are we missing here?
