SPC58 performance

[alexandrealmeida]

Hello,

I created a new project using default settings only to toggle an OUTPUT just to see the microcontroller performance.
I monitored that outpup with an oscilloscope and I get only 4.17MHz.

I am using a SPC58NH-DISP.

Is that an expected output frequency or I am missing something?

How much is the MIPS of SPC58NH microcontroller?

PS.: it was used clock default settings.

Best regards.

/* Inclusion of the main header files of all the imported components in the
 order specified in the application wizard. The file is generated
 automatically.*/
#include "components.h"

/*
 * Application entry point.
 */
int main(void) {

 /* Initialization of all the imported components in the order specified in
 the application wizard. The function is generated automatically.*/
 componentsInit();

 /* Uncomment the below routine to Enable Interrupts. */
 /* irqIsrEnable(); */

 /* Application main loop.*/
 for ( ; ; ) {
 pal_togglepad(PORT_LED1, LED1);
 }
}



[Erwan YVIN]

Hello Alexandre ,

Normally , this CPU is based on Triple z4 cores 200 MHz

to calculate the MIPS , you should have :

MIPS = (CPU Frequency in Hz) / (Number of clock cycles per instruction)

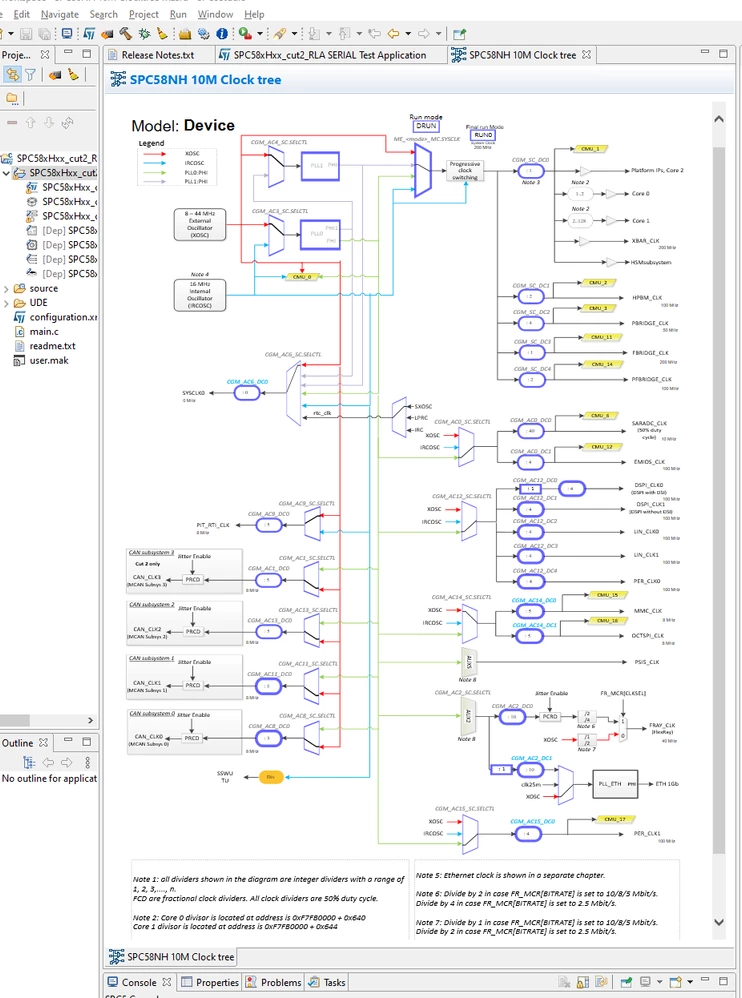

On the different IPs, you can check the clocktree



     Best Regards

                    Erwan
