SPC58 RM: How should we start DCF records writing? If there is any RESERVED area after DCF Start?

[Veniamin BELYAEV]

In the document RM0407 Rev.5 there are two different memory maps on pages 87 and 717.  According to p.236 we have to write 2 DCF records (16 bytes) in one program operation, but now we have RESERVED area after DCF Start record area. How we should write start record properly? The screenshots are attached.

[Veniamin BELYAEV]

The address highlighted in the picture attached is not same as 0x00400300 or 0x00400370 described before. This address is part of LifeCycle slot 1.

[Giuseppe DI-GIORE]

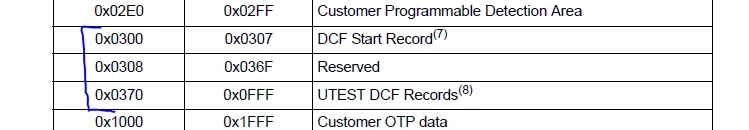

Using Reference Manual 407 ver.5, the table to use is Table 11 at page 87

To clarify:

• overall DCF area starts at offset 0x300 where there is the DCF Start Record (64 bit)
• from 0x308 to 0x36F is Reserved
• Customer DCF records area starts at offset 0x370

In summary, customer should start writing DCF records at offset 0x370

Regards,

Giuseppe
