SPC58EC80E5 current limit on 5v and 3.3v pins

[RD'Ig]

Hi there,

I was looking for the current limit on the 5v and 3.3v pins of the SPC58E80E5 board (I check in the user manual) but I can't figured out.

Which ones are they? Where I can get this information?

[ODOUV.1]

Hello,

you can find current limits in SPC58 C line datasheet:

Datasheet - SPC584Cx, SPC58ECx - SPC58 C Line - 32 bit Power Architecture automotive MCU Dual z4 cores 180 MHz, 4 MBytes Flash, HSM, ASIL-B (st.com)

Best Regards,

-Olivier

[RD'Ig]

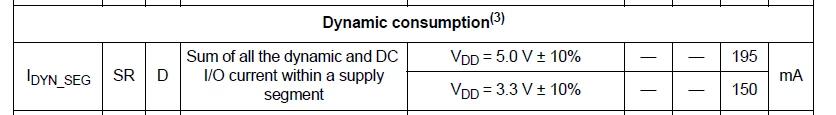

I'm not sure if the values below are the ones I was looking for (this is page 34 of the datasheet you pointed to me)

[GCOND.1]

Hello,

the two parameters you need to satisfy for reliability and functionality are the ones passed in DS rev8 4.8.3.

"In order to ensure device reliability, the average current of the I/O on a single segment

should remain below the IRMSSEG maximum value.

In order to ensure device functionality, the sum of the dynamic and static current of the I/O

on a single segment should remain below the IDYNSEG maximum value."

Best Regards,

Giuseppe
