[SPC58Nxx] GTM 344 and TOMs granuliarity?

[CoolMo]

Hallo Everyone,

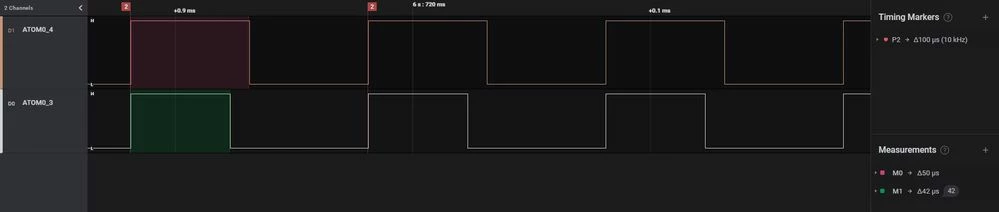

If I setup two TOM channels with the TOM module clocked at 100MHz: (10nSec)

• GTM clocked at 100MHz
• CMD.CFGU.EN_CLK0 = true
• CMD.CFGU.CLK_DIV0 = 1
• TOM0 module enabled
• TOM0_4 source clock = CMU_FXCLK0
• TOM0_4 period = 10000
• TOM0_4 duty = 5000
• TOM0_3 source clock = CMU_FXCLK0
• TOM0_3 period = 10000
• TOM0_3 duty = 4800

[EDIT]

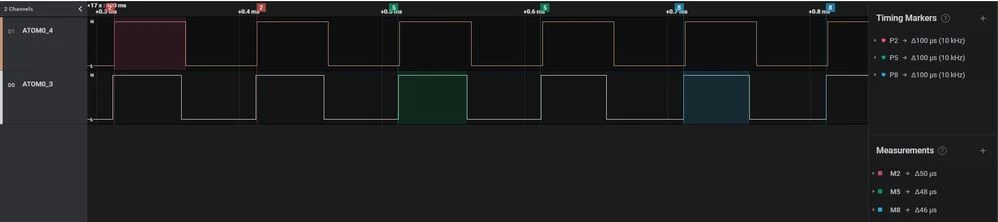

Use an oscilloscope with sufficient speed and sampling buffer.

I was using a rough tool which was not allowing me to see into deep.

[CoolMo]

btw: the code to verify this is trivial:

int main(void) {

 const uint32_t period = 10000U;

 uint32_t duty_tom3 = 4200U;

 uint32_t duty_tom4 = 5000U;

 /* Initialization of all the imported components in the order specified in

   the application wizard. The function is generated automatically.*/

 componentsInit();

 /* Uncomment the below routine to Enable Interrupts. */

 /* irqIsrEnable(); */

 GTM_TOMDriver *pTom = &TOMD1;

 gtm_tomSetCompareReg1(pTom, TOM_CHANNEL3, period);

 gtm_tomSetCompareReg2(pTom, TOM_CHANNEL3, duty_tom3);

 gtm_tomSetCompareReg1(pTom, TOM_CHANNEL4, period);

 gtm_tomSetCompareReg2(pTom, TOM_CHANNEL4, duty_tom4);

 //simultaneous TOMs start

 gtm_tomStart();

 //start the Clock Management Unit (which generates fixed clocks for TOMs)

 gtm_cmuStart(&CMUD1);

 /* Application main loop.*/

 for ( ; ; ) {

 //do nothing

 }

}

[ECAST.1]

Hello,

I've used your code in a SPC5Studio project for Bernina MCU, and the correct value of Duty and Period are triggered.

Come back to the original issue...

The TOM0_4 starts with settings period = 10000 and duty= 5000

The TOM0_3 starts with settings period = 10000 and duty= 4800

After 5 seconds (running) the duty of TOM0_3 is updated to 4600 using the API

gtm_tomUpdate_Duty_sync(&TOMD1, TOM_CHANNEL3, 4600);

(this API call the low level function gtm_tomSetCompareReg2())

Also in this case correct value are triggered.



If you are using the SPC5Studio in the attachment the project used.

Please focus in the GTM component configuration.

Regards,

Emanuele
