SPC58X MCAL the error appear ADC Moudle:Invaild Xpath-expression for Attribute

[FuKai]

The error will appear when I configurate the module of AdcGroupDefinition, but the port and the hardware channel are configuarted correctly and conform.

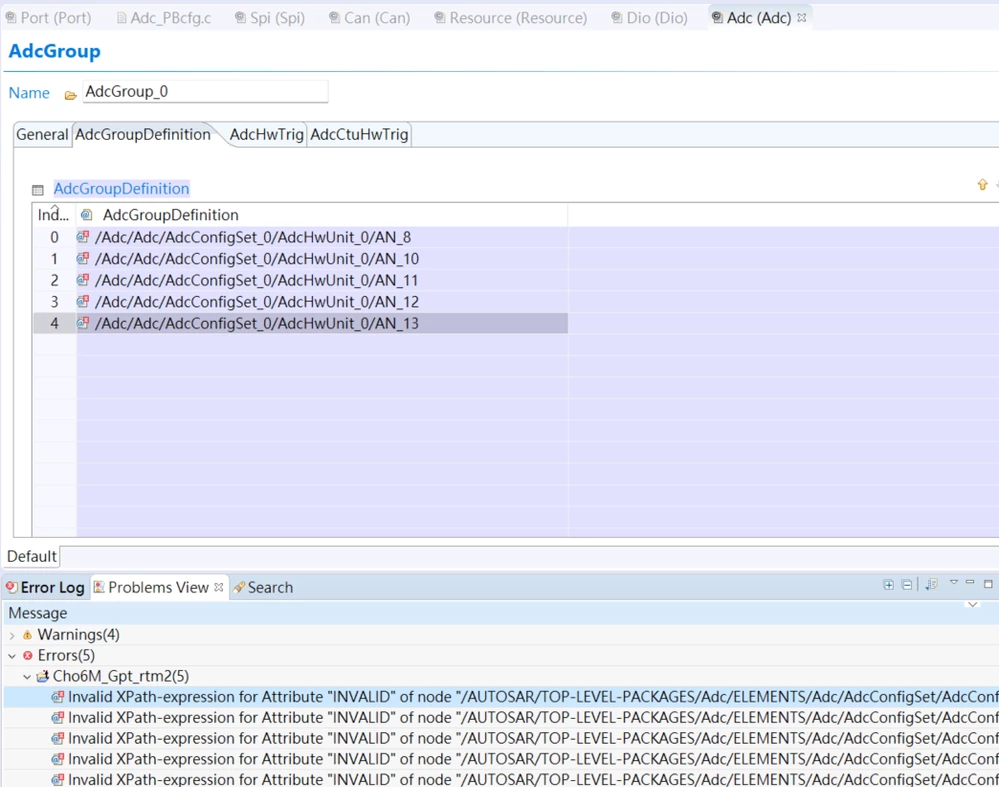

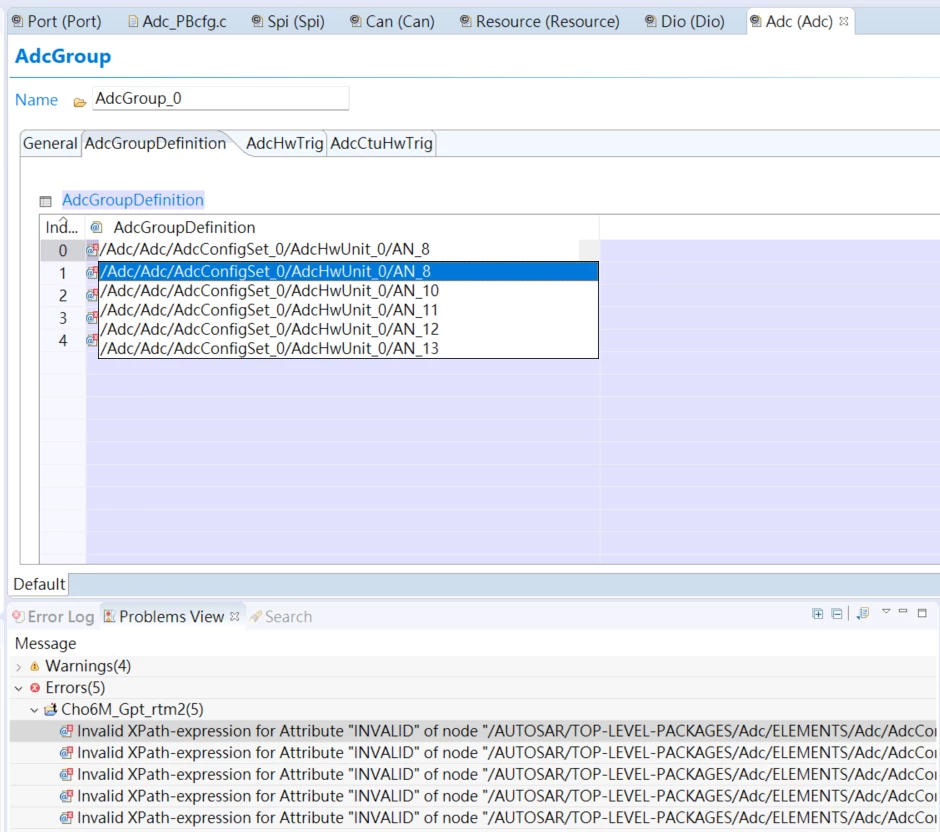

How can i solve this problem from the picture?

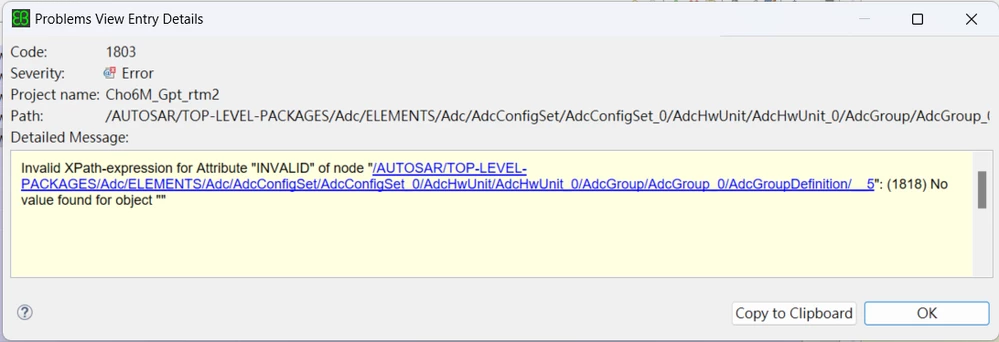

category : Error
project : Cho6M_Gpt_rtm2
description: Invalid XPath-expression for Attribute "INVALID" of node "/AUTOSAR/TOP-LEVEL-PACKAGES/Adc/ELEMENTS/Adc/AdcConfigSet/AdcConfigSet_0/AdcHwUnit/AdcHwUnit_0/AdcGroup/AdcGroup_0/AdcGroupDefinition/__5": (1818) No value found for object ""
detailed : Invalid XPath-expression for Attribute "INVALID" of node "<a href="datamodel://Cho6M_Gpt_rtm2?/AUTOSAR/TOP-LEVEL-PACKAGES/Adc/ELEMENTS/Adc/AdcConfigSet/AdcConfigSet_0/AdcHwUnit/AdcHwUnit_0/AdcGroup/AdcGroup_0/AdcGroupDefinition/__5">/AUTOSAR/TOP-LEVEL-PACKAGES/Adc/ELEMENTS/Adc/AdcConfigSet/AdcConfigSet_0/AdcHwUnit/AdcHwUnit_0/AdcGroup/AdcGroup_0/AdcGroupDefinition/__5</a>": (1818) No value found for object ""
id : 1803
resource :
path : /AUTOSAR/TOP-LEVEL-PACKAGES/Adc/ELEMENTS/Adc/AdcConfigSet/AdcConfigSet_0/AdcHwUnit/AdcHwUnit_0/AdcGroup/AdcGroup_0/AdcGroupDefinition/__5
location :
stack :



[Erwan YVIN]

Hello , I have forwarded your point to Autosar Team

Just for info , AUTOSAR is not a mass market topic to address in this forum, it is better to contact local support.

   Best Regards Erwan

[FuKai]

Hi, thank you for your reply.

Is there any sample project for EB Tresoe about adc module I can refer?

Or I can supply my project for you to debug the problem.

Now, I am developing SPC58EG MCU.



Thank you.
