SPC58xxx - How to change the frequency of external oscillator in SPC5 Studio Clock Tree editor?

[SKara.7]

Hi,

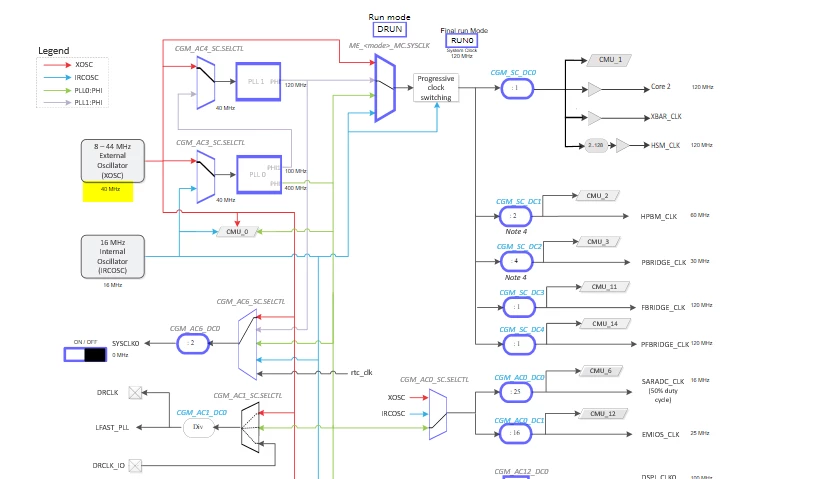

In our project, we are using a 20Mhz external crystal oscillator. The default frequency of external oscialltor in SPC5 Studio CLock Tree editor is 40Mhz. How will I change it to 20Mhz? Please see the picture below.



Br,

Sreejith

[ODOUV.1]

Hello,

click on Clock Component:



then on oscillator setting in outline:

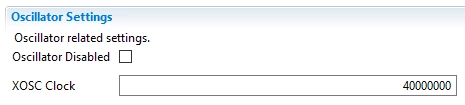

You will reach the oscillator settings in the main window:



Then change it to 20 MHz and you will have to adapt all your clock tree using reference manual according to your new external clock.

Best Regards,

-Olivier

[ODOUV.1]

Hello,

did it work as you expected ?

Best Regards,

-Olivier

[SKara.7]

Hi Olivier,

I am successful in changing the external clock value as you suggested. But, I am running into trouble with the clock tree configuration.

Best regards,

Sreejith

[ODOUV.1]

Thank you,

then would you please tag as "best answer" my answer to this topic.

And enter a new topic for your new issue/question.

Best Regards,

-Olivier
