SPC5Studio FreeGcc ToolChain

[ck182]

Hi,

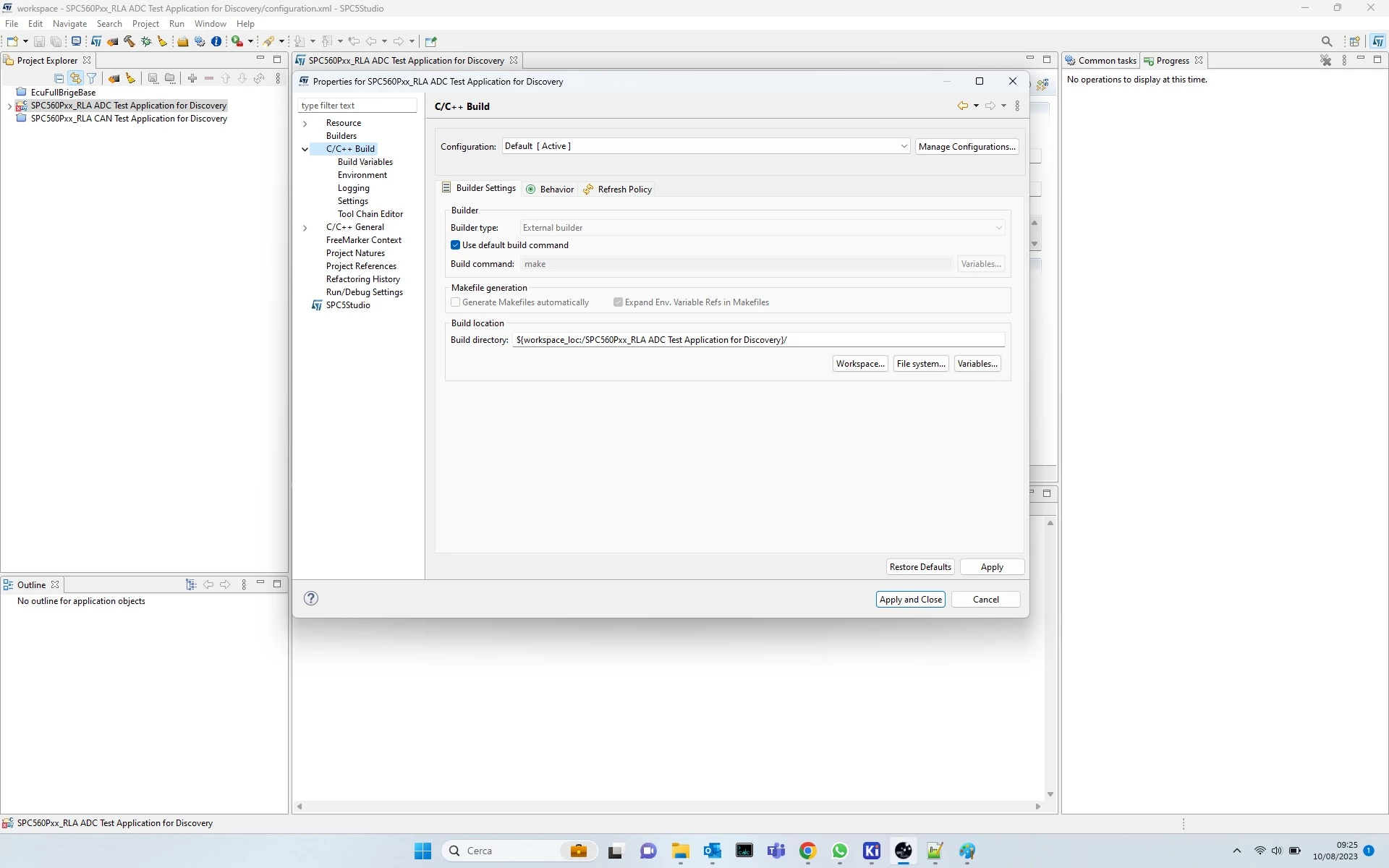

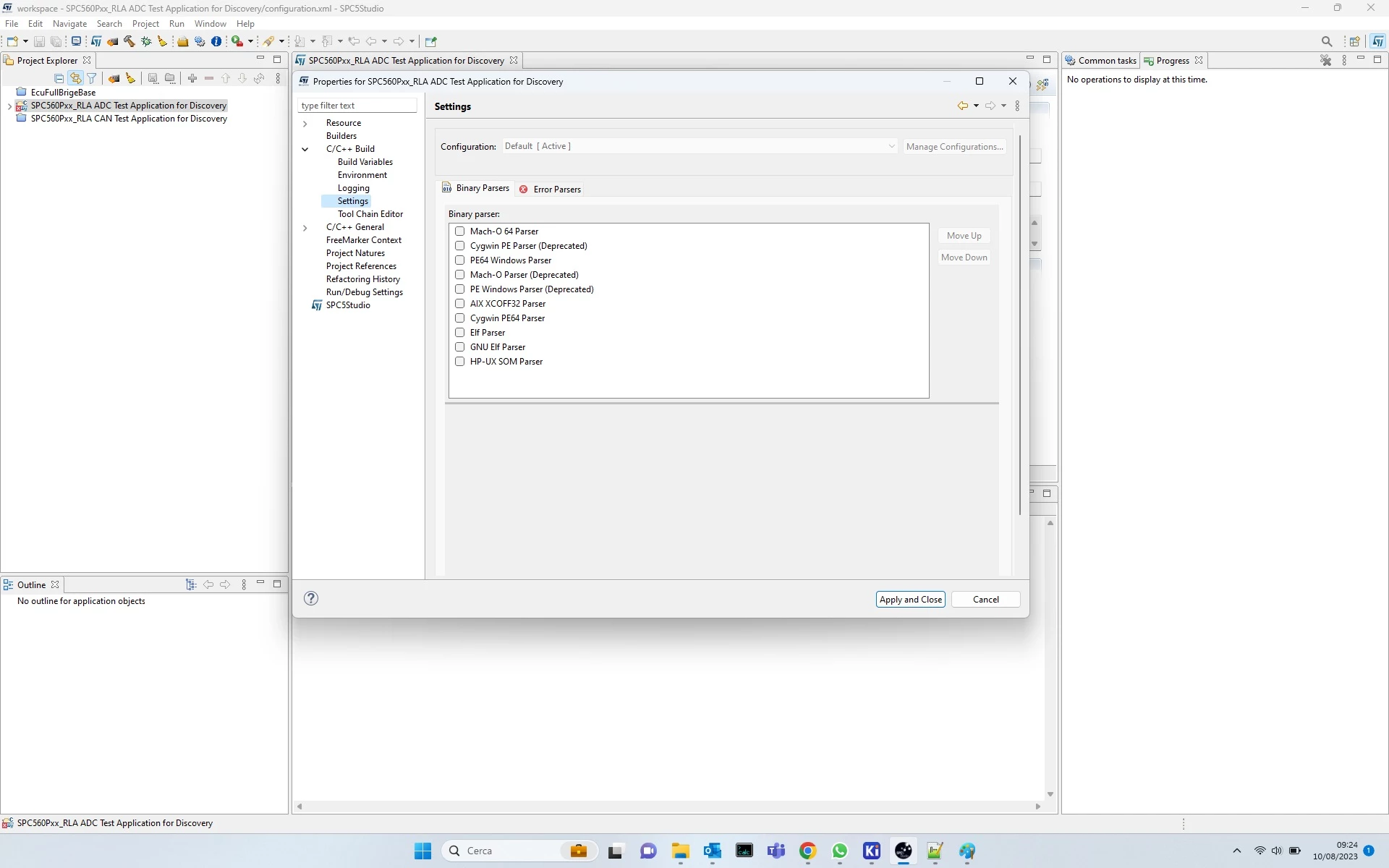

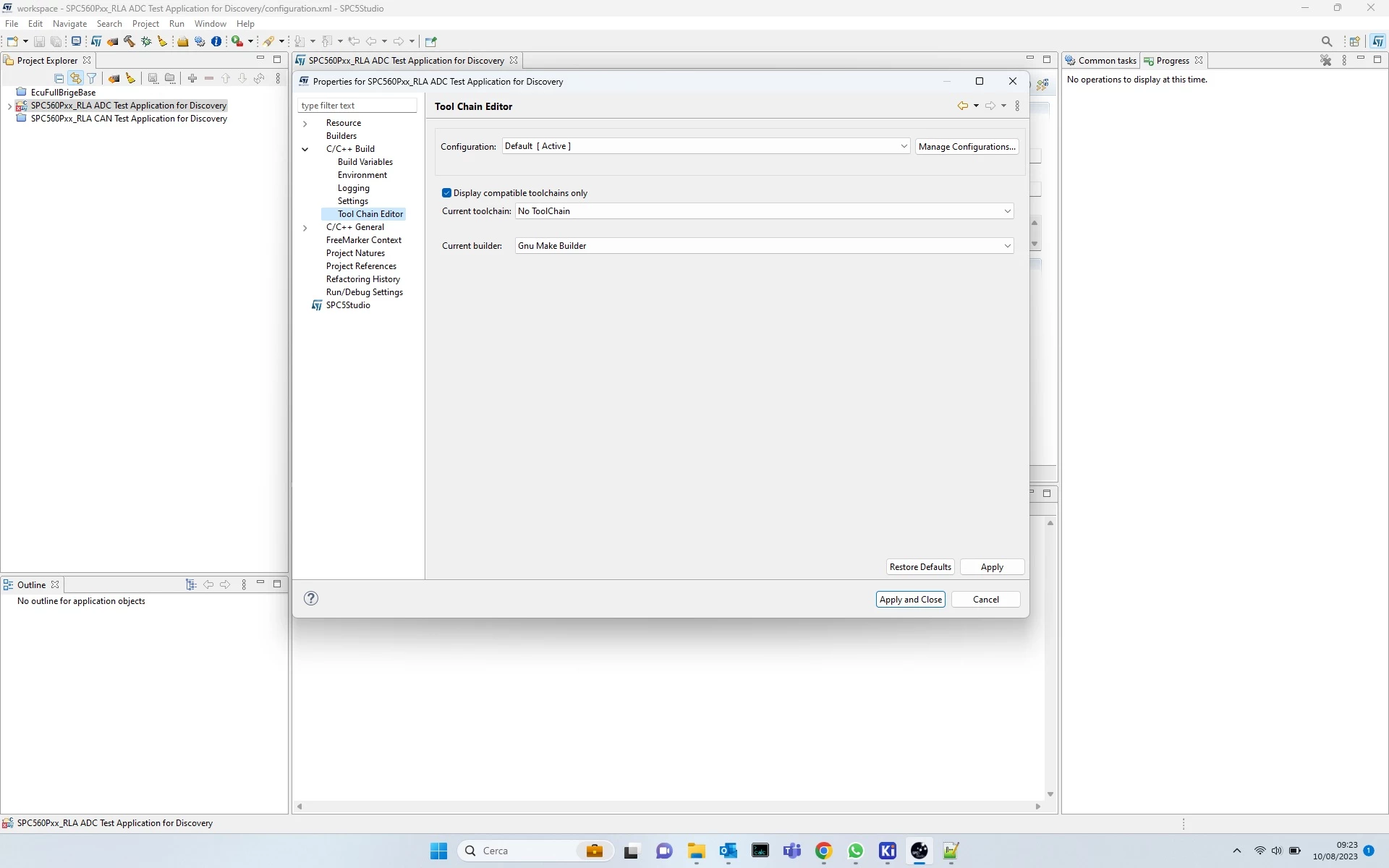

i used SPC5Studio 5.8.1 for many years, but today (after windows update) in Properties->Tool Chain Editor->Current toolchain->"No ToolChain".

This means that i have no possibility to change Build Settings. The same things also in SPC5Studio 6.

Of course i have C:\SPC5Studio-6.0\eclipse\plugins\com.st.tools.spc5.tools.gnu.gcc.ppcvle.win32_4.9.4.20200908161514\toolchain

Somebody can help to fix this?

Thank you in advantages.

[Erwan YVIN]

Hello ,

we are not using CDT Settings to compile a project.

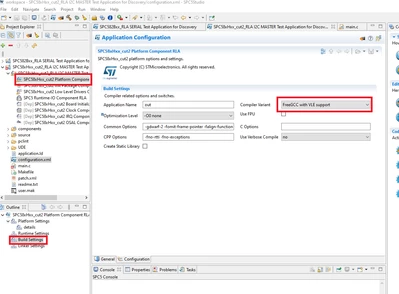

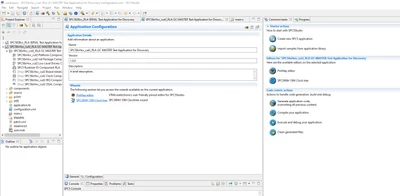

the toolchain is set in the platform component

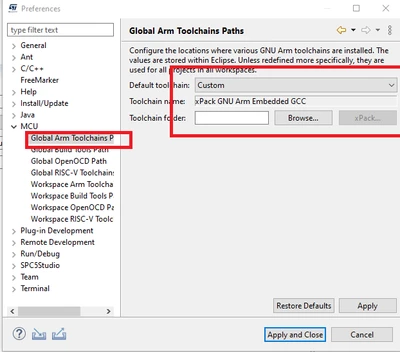

if you want to use CDT you set your toolchain in

And set your project as CDT

Best Regards Erwan





[ck182]

Hello Erwan,

thank you for your replay.

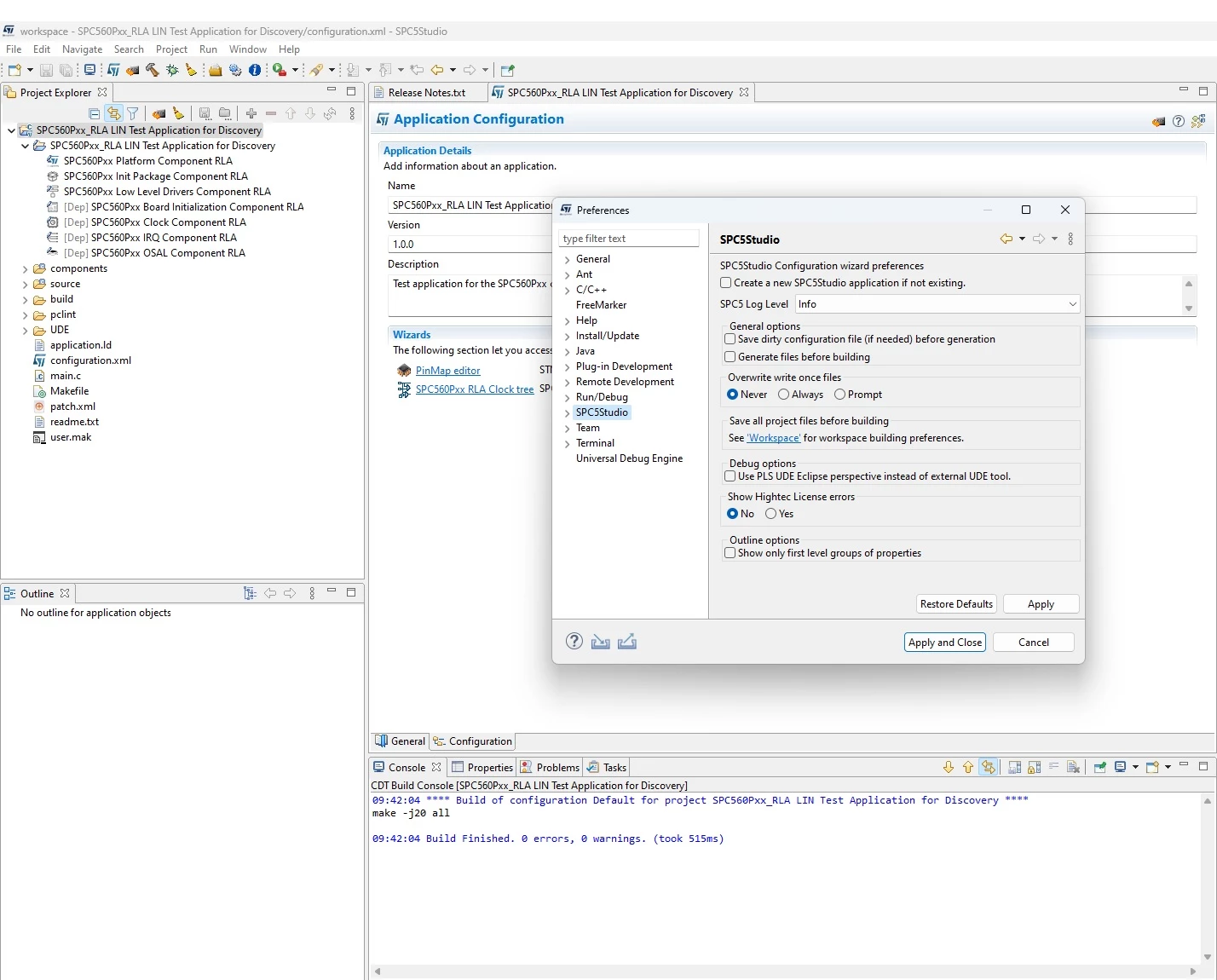

Sorry but i have no MCU setting under Preference, so i'm still blocking.

Best Regards

[Erwan YVIN]

Hello,

Sorry, it does not install by default :

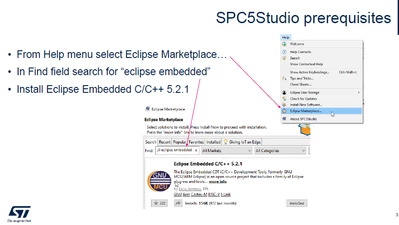

You should install Embedded MCU from Eclipse Marketplace

Cf screenshot

Embedded CDT is nice eclipse feature / plugins to customize your toolchain in SPC5Studio or Eclipse.

Best regards

                 Erwan
