StellarStudio 7.1.0 officially pushed (Compliant for Java21 and eclipse 202409)

[Erwan YVIN]

For your information ,

StellarStudio 7.1.0-JOURNEY version is officially pushed (for SR5x). (Windows , Macos, Linux) based on eclipse 202409 and the version CDT 202409 with standalone tools (Java 21)

https://www.st.com/en/development-tools/stellarstudio.html

• StellarStudio (Pinmap (SR5x), Clocktree (SR5E1), NoC Configurator, Power conso) (Windows, Linux, MacOs)
• with StellarESDK-1.8.0 (SR5X) and TOOLS-1.4.0
• with Git Bash Eclipse Integration / Update site system.
• with eclipse project creation wizard based with multiple sdks support (Integration of  ESDK 1.8.0)

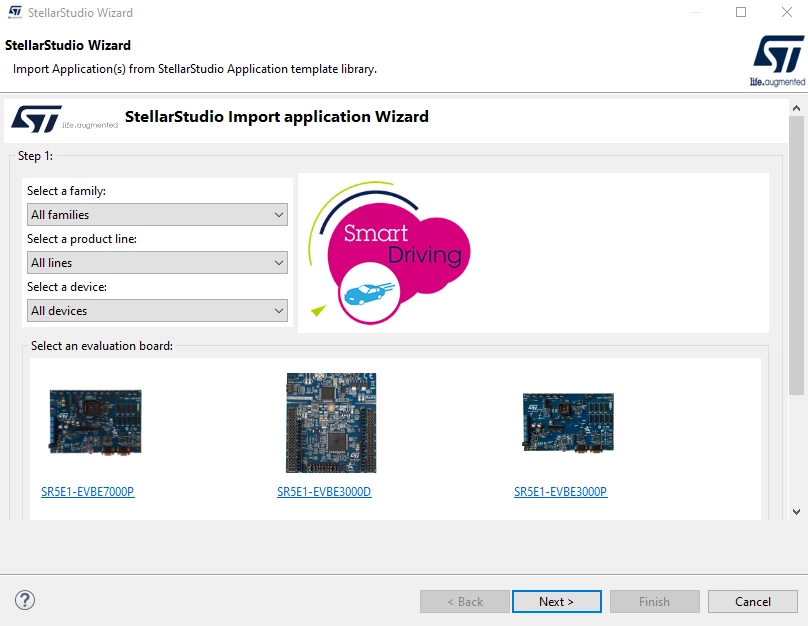

• with new pinmap wizard with board selection mechanism
• with Power consumption wizard.
• with CDT / embedded cdt / Openocd debug Integration
• with Migration tool from Old Pinmap to New Pinmap model
• Compliant with TRACE32 Lauterbach / ISYSTEM / Segger J-Link / Openocd.

What's new in this release ?

-SR5E1:

                        Integration of Stellar ESDK-1.8.0 , Stellar ESDK-1.7.0 , Stellar ESDK-1.6.0

                        Graphical UI configurators for

                        Can, DAC, Comparator SPI , UART, TIM , HRTIM , I2C , I2S , Iwdg, SarAdc, SdAdc, WWdg, Cordic NEW

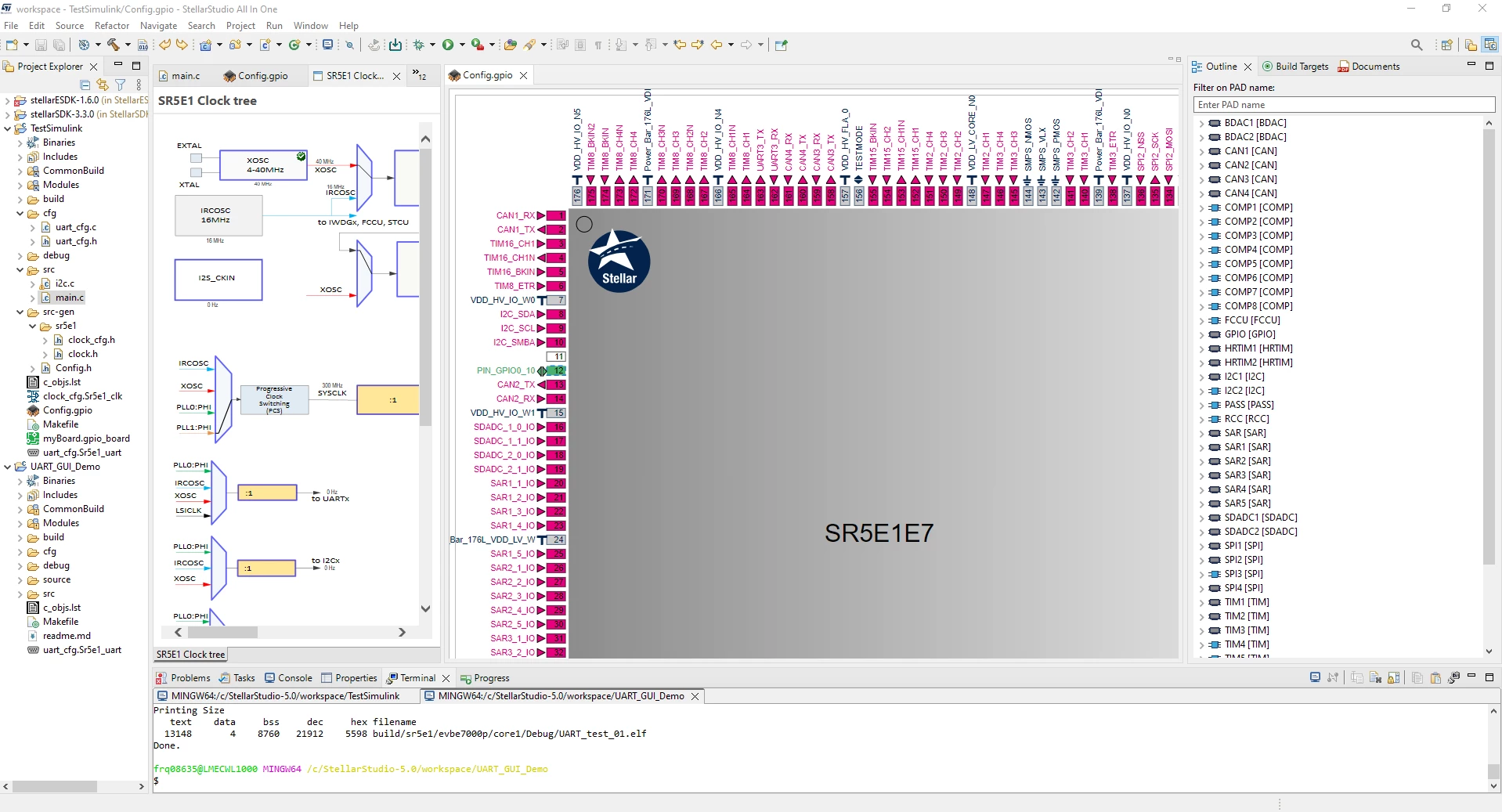

                        New Pinmap Wizard (Configurable GUI) (GLSP/Sprotty)

                       Automatic Generation of Openocd Configuration

- Bugs fixing

- Embsysregview update with SVD Update for each device

- User friendliness enhancements (Pinmap & Clocktree Uniformisation User Experience SR5)

            - AI STELLARAI-v2.0.0_STEDGEAICORE-v2.0.0 for SR5 & SR6 NEW

Pinmap

1. User Interface Design:
• Ensure that the pin mapping interface is intuitive and user-friendly.
• Use clear labels and tooltips to guide users through the pin mapping process.
2. Functionality:
• Allow users to easily add, remove, and edit pins.
• Provide a search feature to quickly locate specific pins.
• Include a validation step to ensure all pins are correctly mapped.

Clocktree

1. Consistency:
• Ensure that the clock tree interface is consistent.
• Use uniform colors, fonts, and icons throughout the clock tree interface.
2. Clarity:
• Clearly display the hierarchy and relationships within the clock tree.
• Use visual cues such as lines and arrows to indicate connections.
3. Interactivity:
• Allow users to interact with the clock tree, such as expanding and collapsing nodes.
• Provide options to zoom in and out for better visibility.

For SR6 Families better to contact Field Application Engineers or ST Marketing.



[Erwan YVIN]

P2 Update site for customers for additional plugins available here

Help ==> Install New Software

https://common.srxstudio.org/ (Core/Debug)

https://contrib.srxstudio.org/ (Motorcontrol / AI)

https://sr5.srxstudio.org/ (SR5x ESDK/Tools)
