Still no Clock Tree Wizard for ST SPC58xE series?

[TKorn]

Hello community,

I just wanted to know whether you know of a clock tree wizard for SPC58xE.

I read in one post some years ago that there is no clock tree wizard for SPC58XE, but is there still none?

Is there any possibility to visualize the clock connections?

Kind regards



Tkorn

[Pooja1]

Hi , can u please help me how to work with autodevkitstudio.





[TKorn]

Hello Pooja1,

There is a good documentation within the application. Did you already read this?

I think it is a pretty good way to get started...

Kind regards

[Pooja1]

I am working on SARADC in Autodevkit studio using SPC58EC80E5 (AEK$MCU-C4M3A) evaluation board. Can u plese help me to work on ADC, i tried multiple times ,i need 12 bit ADC values but im getting 13bit constant value 8192.



[TKorn]

Hello Pooja1,

I am sorry, but I cannot help you at this moment. I am not familiar with  SARADC and with your problem itself.

Kind regards

[Erwan YVIN]

Hello ,

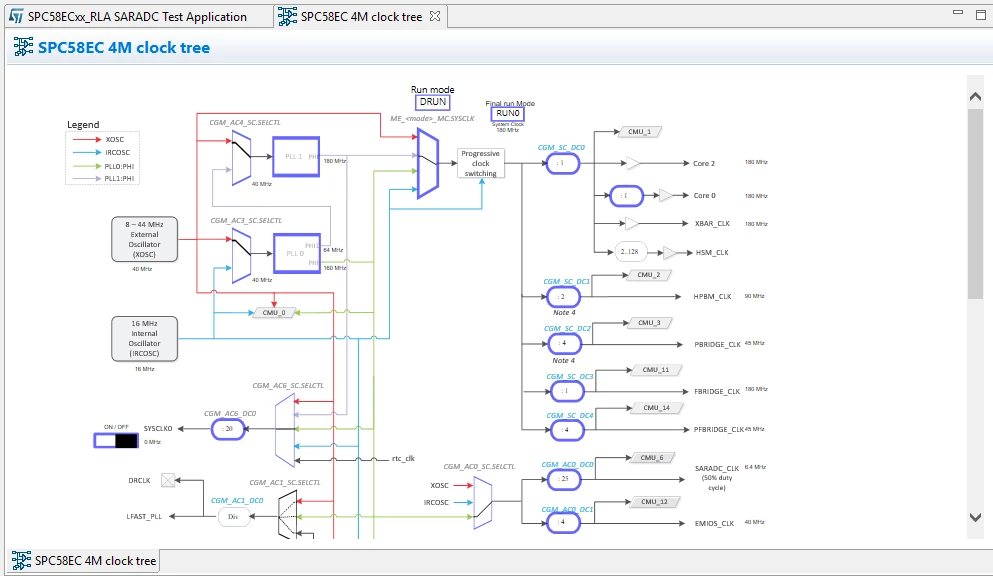

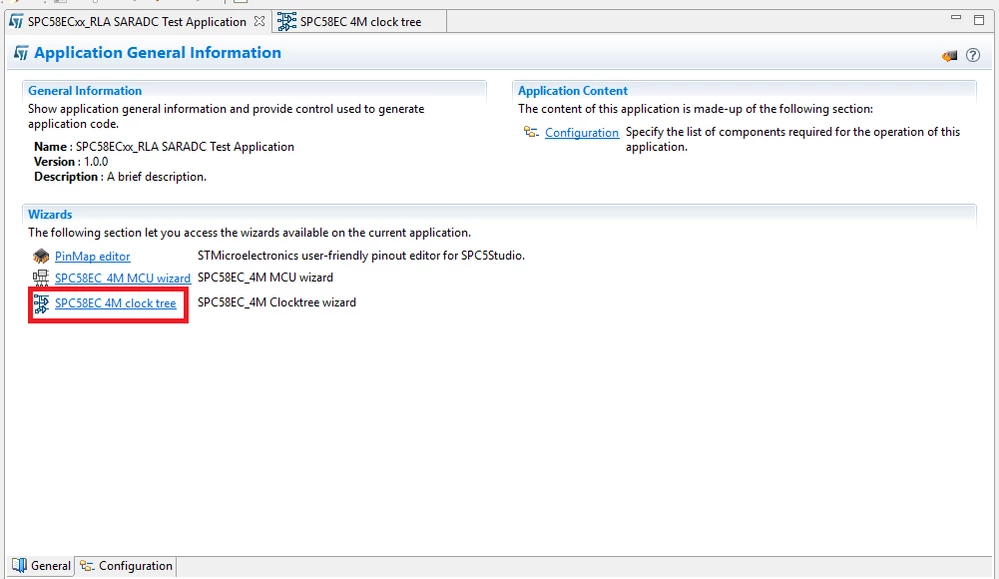

You can find a clocktree wizard in SPC5Studio 6.0.

It can generate source code based on your configuration

I recommend to check the application

SPC58ECxx_RLA SARADC Test Application for Discovery

                Best regards

                                     Erwan

                Best Regards

                                 Erwan
