This is a question about clock setting.

[hans536]

Hi.

​

I am using the spc5nh-disp development board.

​

I want to use CANFD, and I want to speed up the clock more.

​

Current CAN clock is 8Mhz.

​

How can i change the Clock speed?

please... help me....

[Giuseppe DI-GIORE]

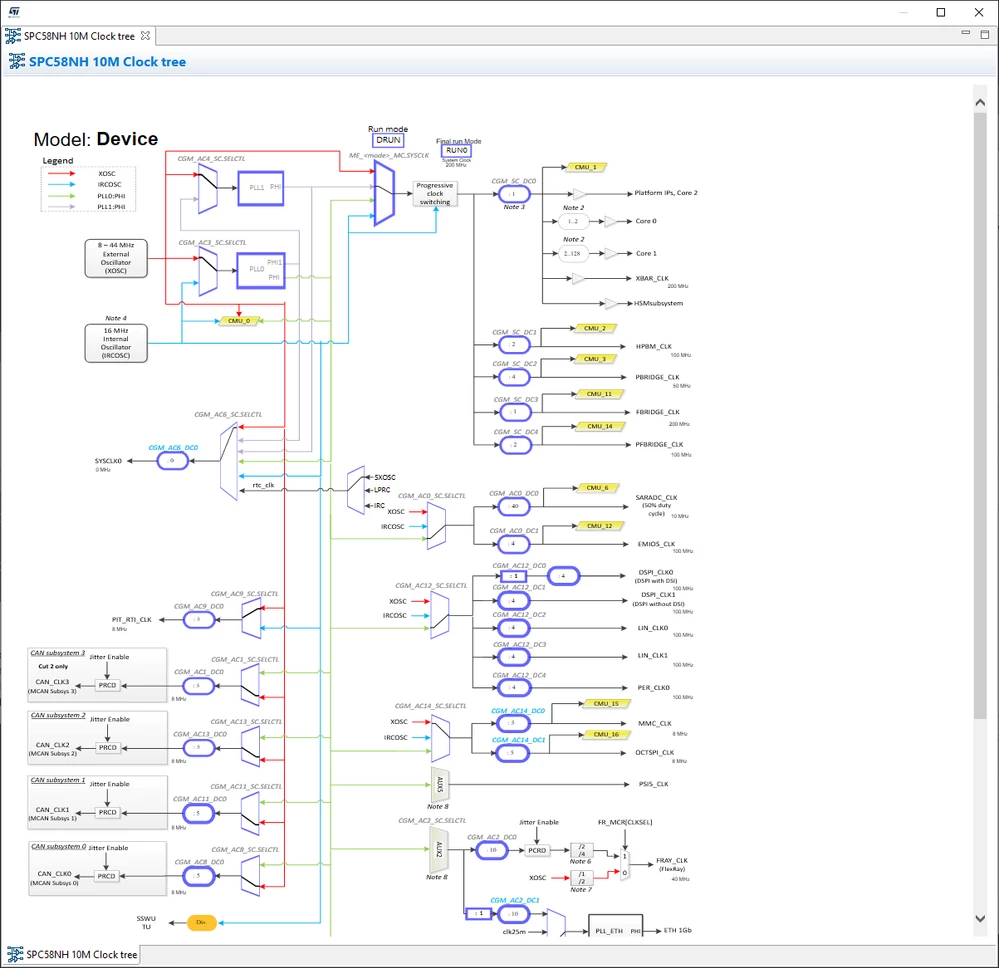

Use the ClockTree wizard:

[hans536]

Thank you reply

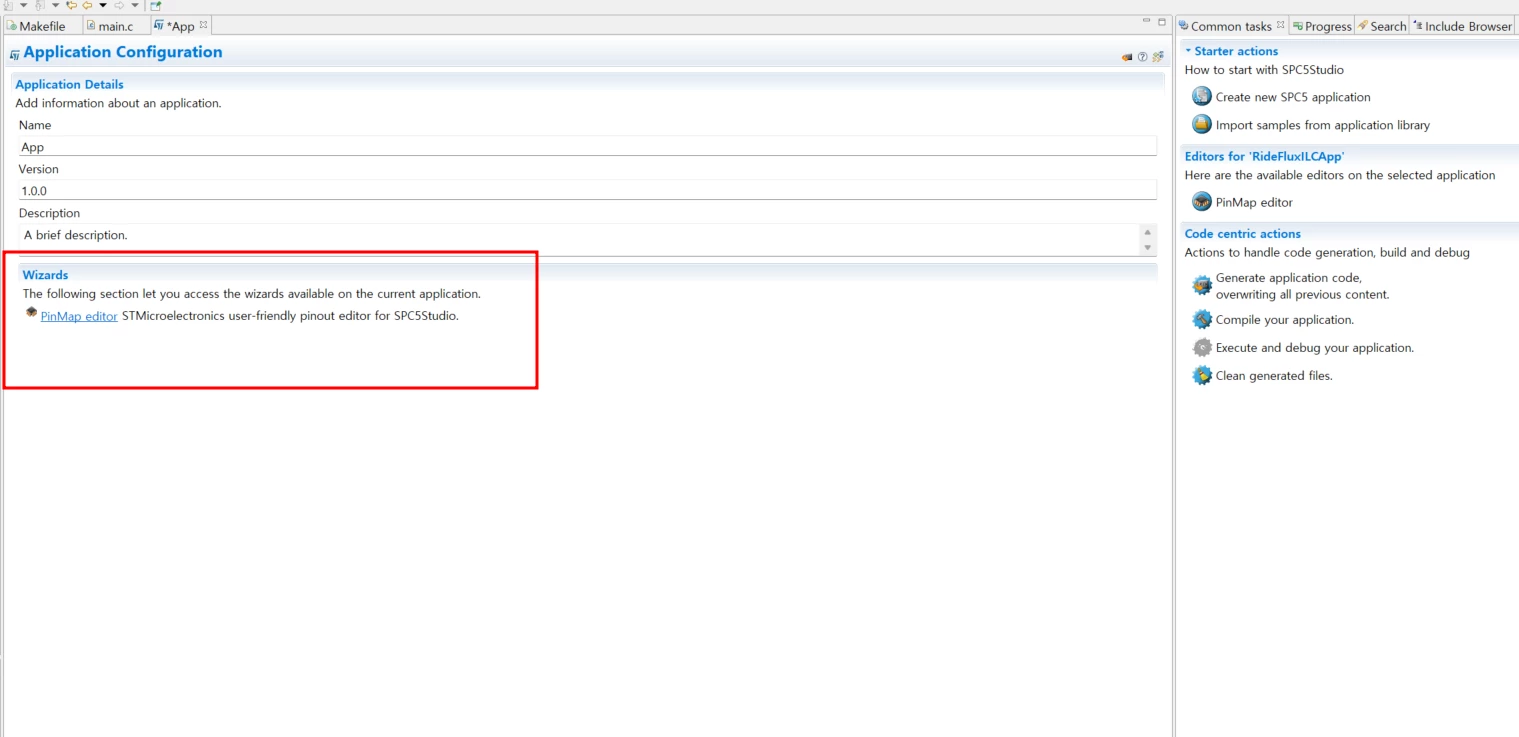

um... but I can't find Clock Tree wizard...

Can I konw Clock Tree Button ??

[hans536]

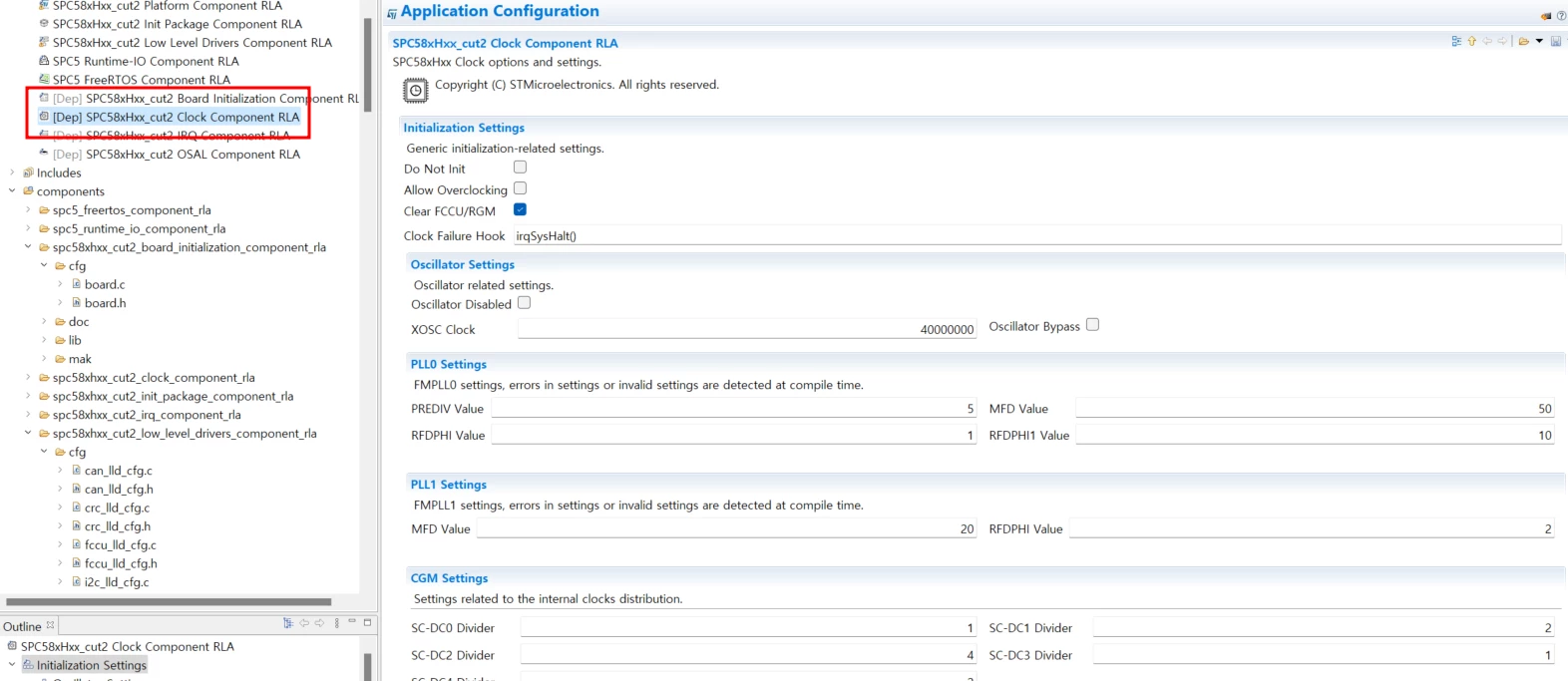

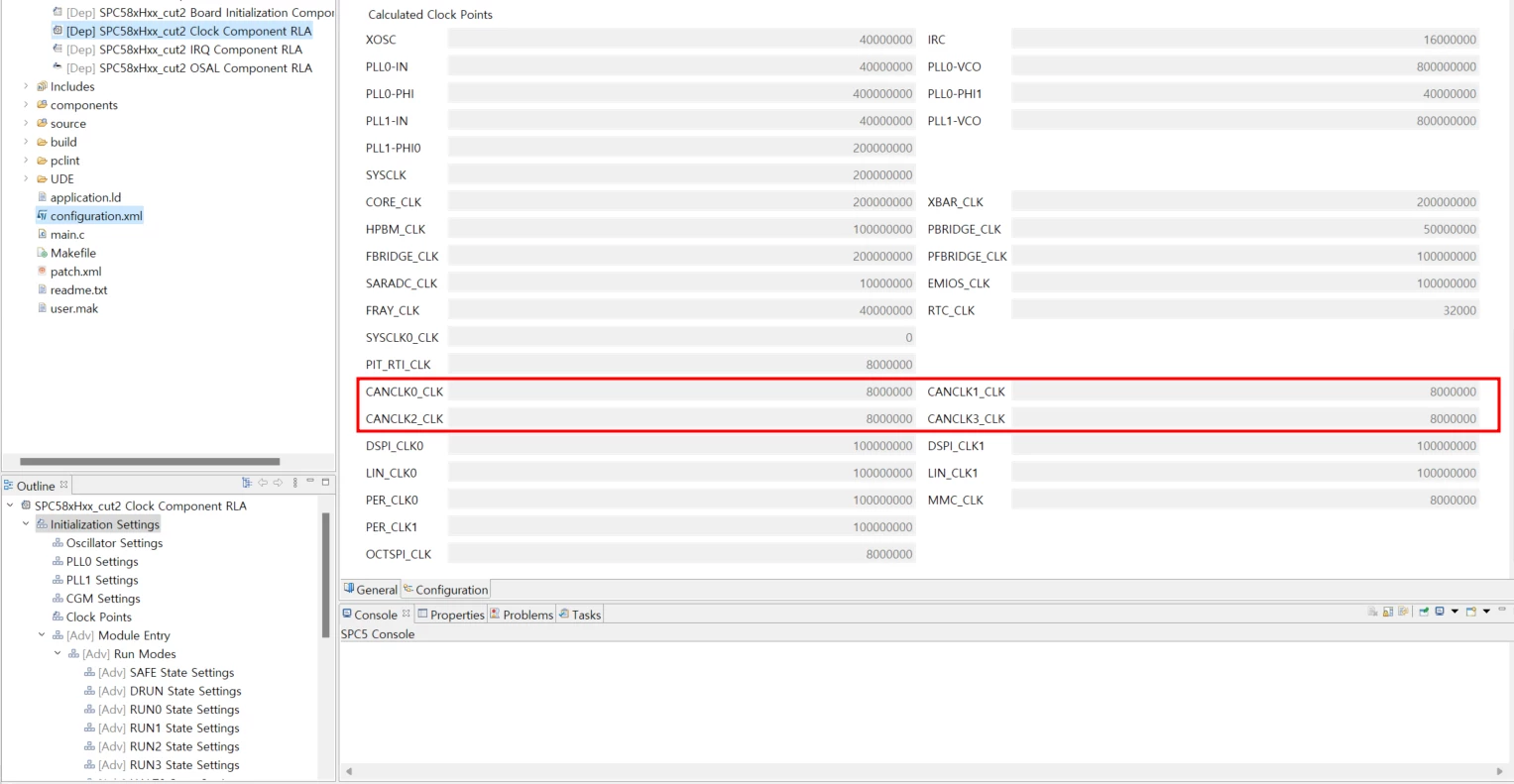

I configured Clock Setting by Clock Component RLA reference.

and I referred to the manual. (Reference manual page 676 )
