Question
we would like to know what the particular solution for this problem is as we tried the pervious given solution.
- March 14, 2023
- 0 replies
- 1126 views

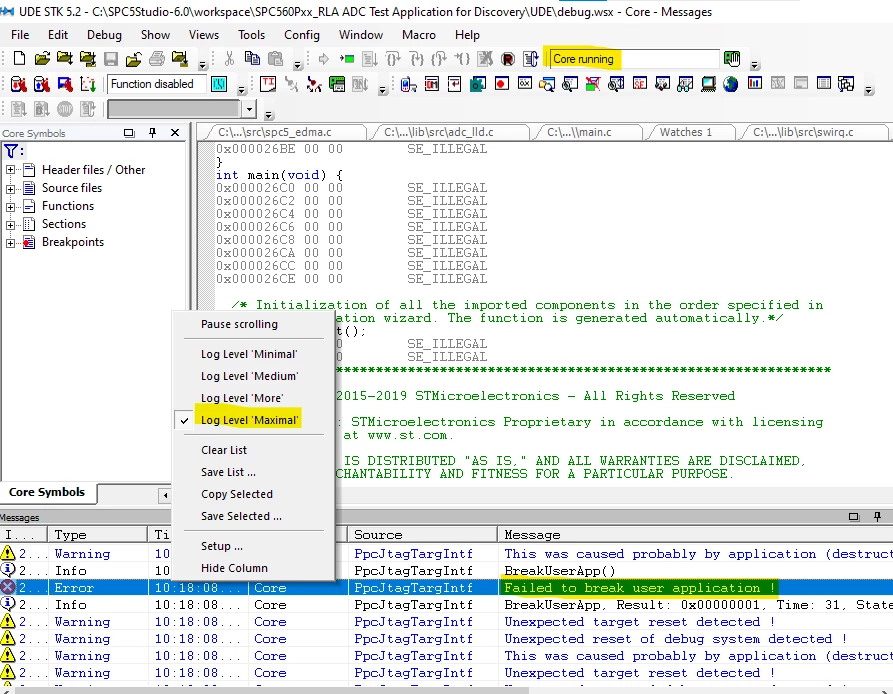

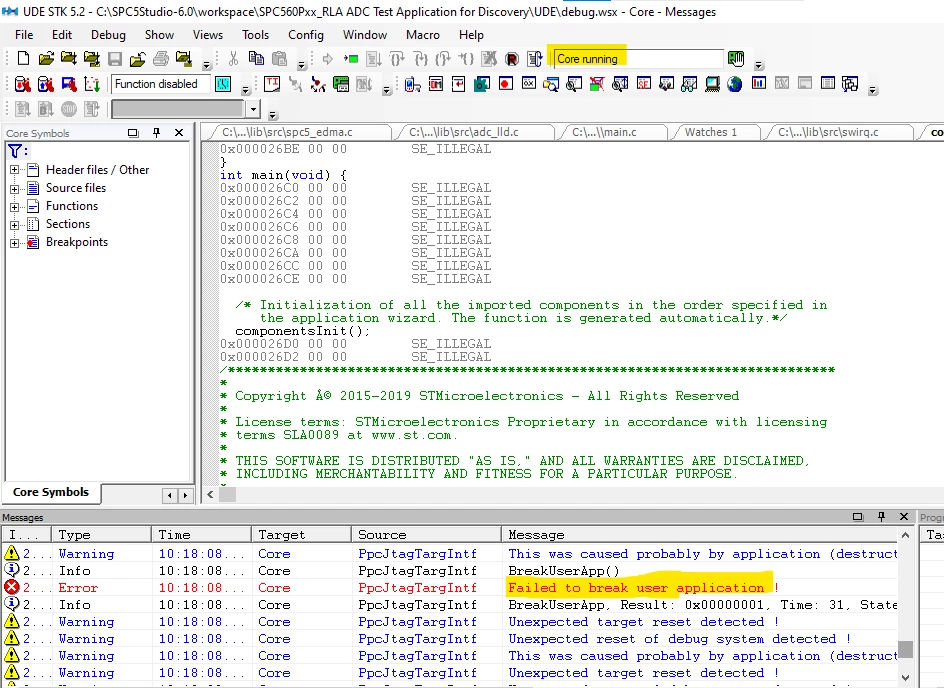

We have increased the log level in the UDE.
- > The core is not going into halt state its continuously on the running state. and we have searched regarding this on the datasheets provided and we have come up with some findings.

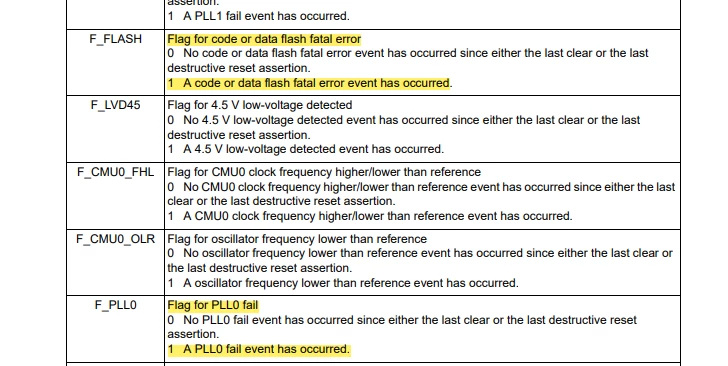

- >We have checked the Reset Generation module Registers, the following findings are,
1. PLL0 fail event has occurred.
2. A code or data flash fatal error event has occurred.
We have attached the screenshot of register values and our findings below and we have also raised a case regarding this issue already (case no: 00173816).
kindly provide us a solution for this problem.
best regard
Prasanna Murali
