B-L4S5I-IOT01A Board, NanoEdge AI Studio : NanoEdge AI model not compile with board project.

[HarishKumarSingh]

To STM,

Subject: NanoEdge AI package not compile with B-L4S5I-IOT01A Board.

Board - B-L4S5I-IOT01A Board

AI application tool - NanoEdge AI Studio

CUBEMX

IDE -  STM32CubeIDE 1.15.1

1. AI model generate from NanoEdge AI Studio for B-L4S5I-IOT01A Board. Package download for deployment.

2. CUBE mx generate code for B-L4S5I-IOT01A Board.

3. NanoEdge AI Studio package include in code.

4. Code compile for variable from header file of NanoEdge AI.

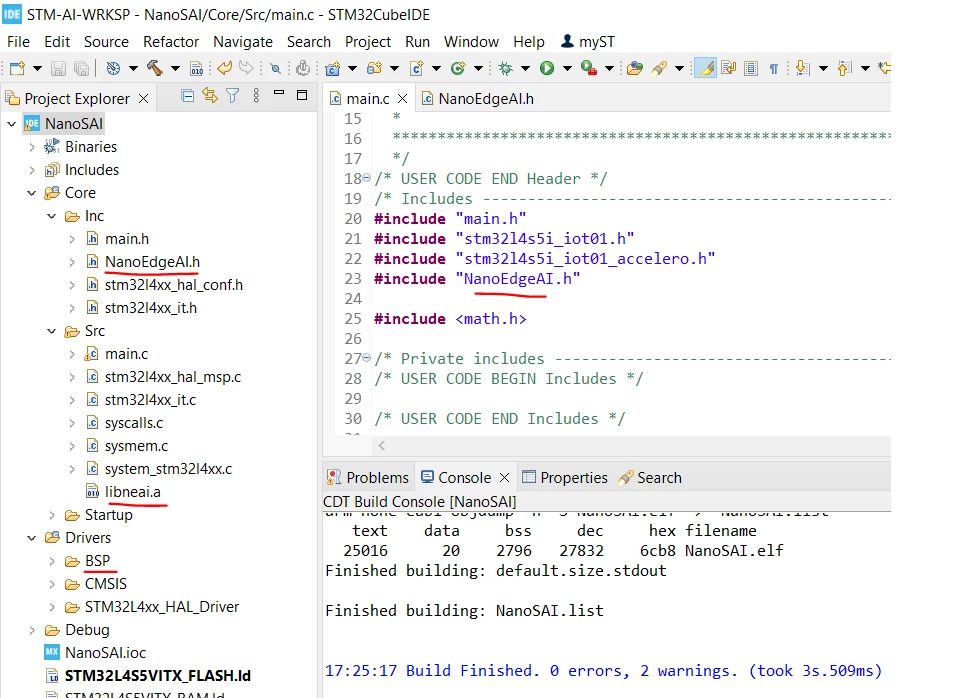

Please see image file - ModelPackInclude2Code

5. Compilation fail on function call of NanoEdge AI.

Please see image file - Cmplitn fail on edge ai fun cal



Please help to include deployment package to B-L4S5I-IOT01A Board code.



Reference :

[1] https://www.youtube.com/watch?v=yXMUv_C5FGk&t=101s
[2] https://stm32ai.st.com/nanoedge-ai/
[3] https://wiki.stmicroelectronics.cn/stm32mcu/wiki/STM32StepByStep:Step4_Sensors_usage#Using_sensors_with_B-L475E-IOT0-

[Julian E.]

Hello,

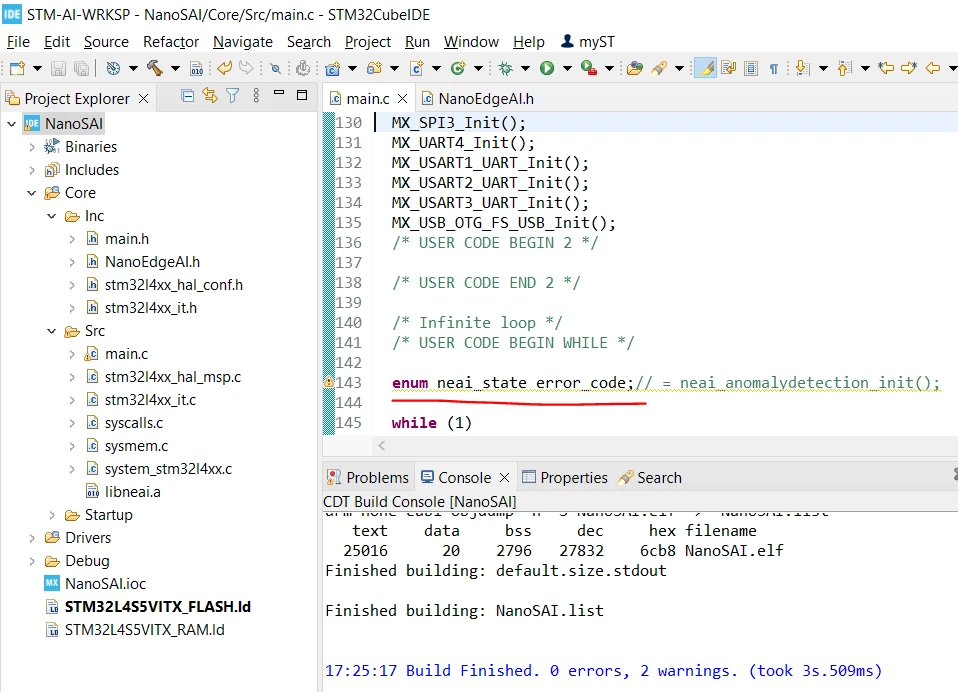

What error do you get exactly? In your screenshot you commented the code and there are only warnings.

If you can, please include your project (as a .zip for example).



Best regards,

Julian

[HarishKumarSingh]

- Compilation fail on function call of NanoEdge AI.

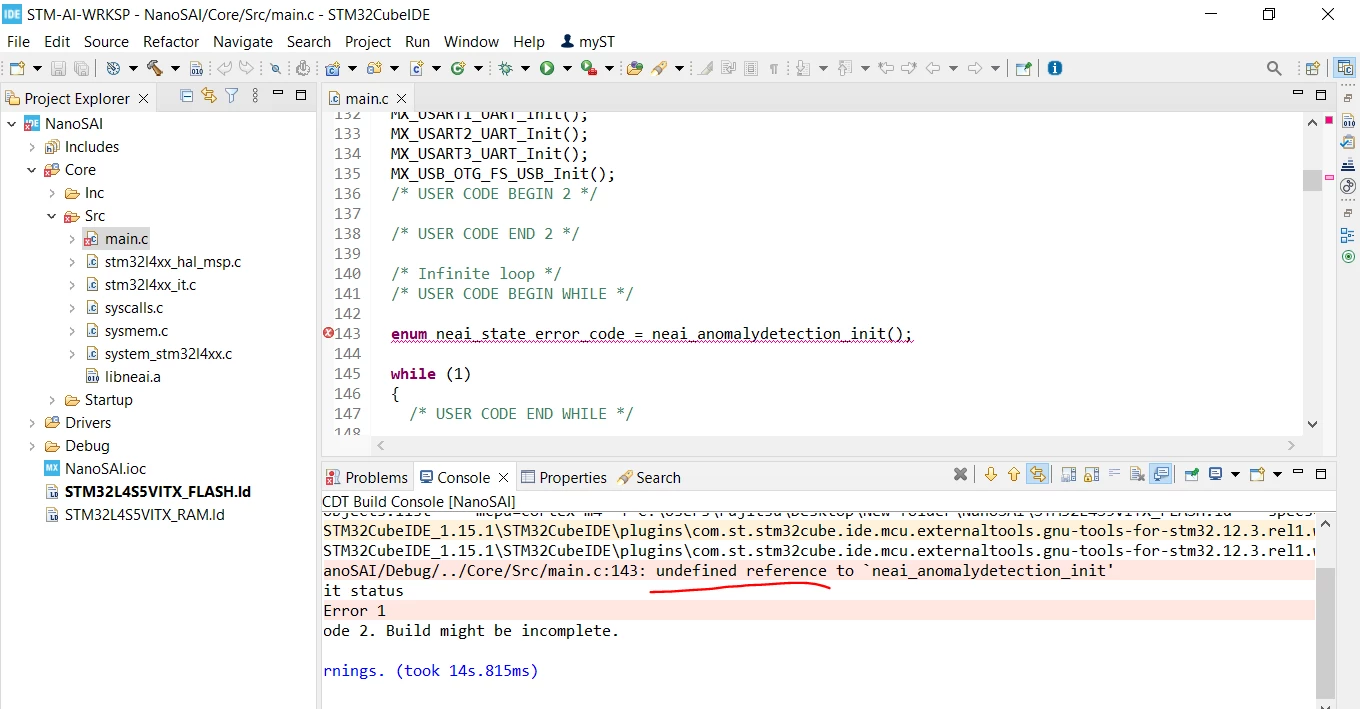

Please see image file - compl fail for ai packg



Program  - https://drive.google.com/file/d/16dNmOCJFgMpMOzahzxTpnzNy4Ftat050/view?usp=sharing





[Julian E.]

Hello,

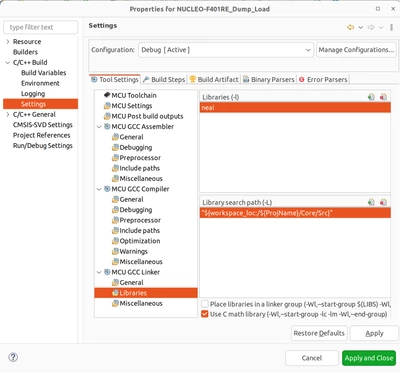

You need to include the library path in the project settings:

• Right click on your project > Properties
• Then Click on C/C++ build > Settings
• Then MCU GCC Linker > Libraries

• In Libraries (-l) click on the green + icon and type the name of the library without lib (by default the library name is libneai, so type neai)
• Below in the Library search path (-L), add your path to the library
• Click Apply and Close



Best regards,

Julian

[HarishKumarSingh]

Thank you.
