Issue with NanoEdge AI Model Training on STWINBX1 (STEVAL-STWBXCS1A)

[Mahdouch]

Hello ST Community,

I'm working on a Predictive Maintenance project using FP-SNS-DATALOG2 to capture real-time sensor data from my STWINBX1 (STEVAL-STWBXCS1A). Here’s my workflow so far:

1. Data Acquisition: Captured sensor data using HSDatalog_GUI.
2. Format Conversion: Converted data to NanoEdge CSV format using " hsdatalog_to_nanoedge.py ".
3. NanoEdge Processing: Uploaded the converted data to NanoEdge AI Studio and successfully downloaded a benchmark.
4. Model Training Issue:
   • I connected my board via USB-C and STLINK-V3MINI (otherwise, my PC and NanoEdge wouldn’t detect it).
   • My STLINK is properly recognized on COM3.

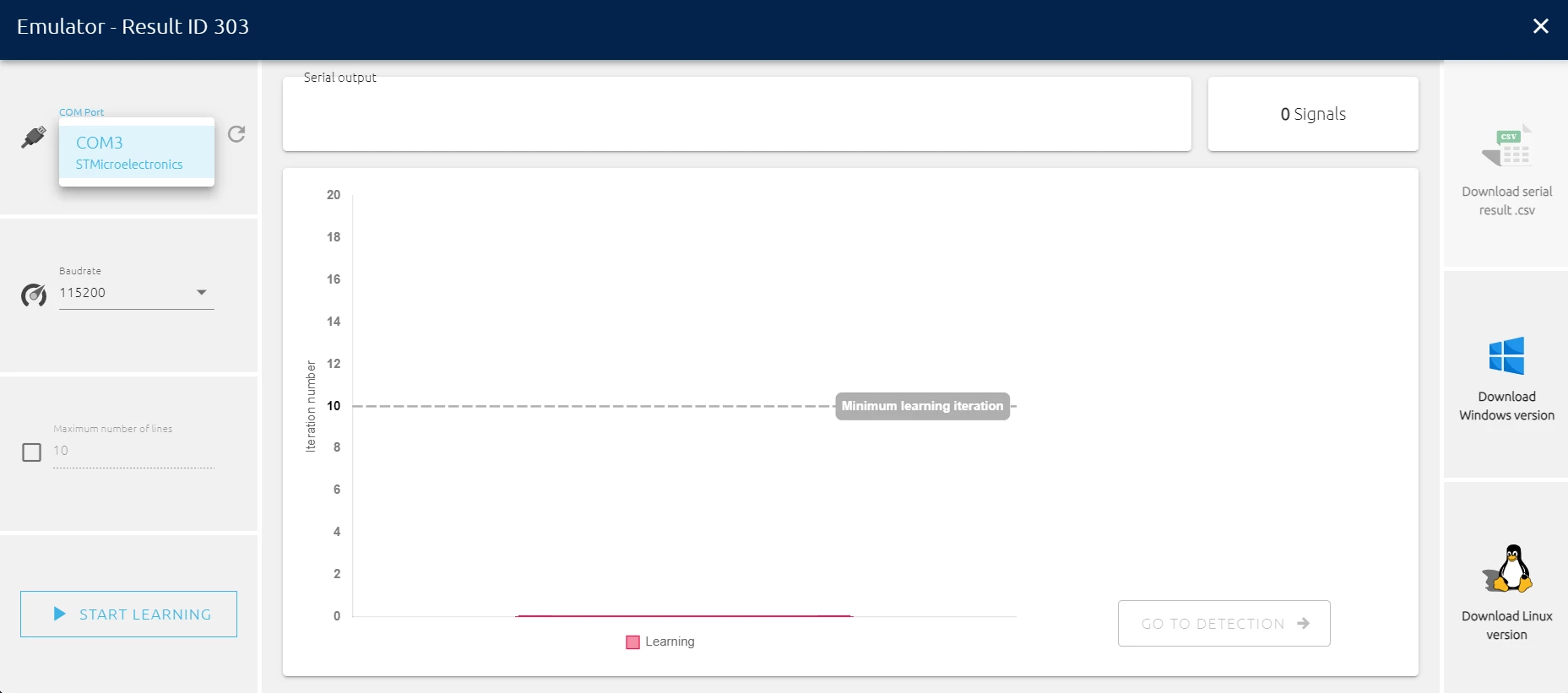

   • However, when I try to train the model, NanoEdge AI Studio does not recognize the board—it detects nothing.

Has anyone encountered this issue before? Could it be a driver issue, a missing configuration, or something else? Any help would be greatly appreciated!

Thanks in advance!

@Andrew Neil

@SimonePradolini



[ahsrabrifat]



Open STM32CubeIDE, select ST-LINK, and check if your STWINBX1 is detected. Open NanoEdge AI Studio and check if it is set to detect devices on the right COM port. Try switching to a different USB port on your PC. Restart NanoEdge AI Studio after plugging in the board.



[Mahdouch]

Thanks for your response! I’ve already tried that method.

• I’m working on a laptop with only two USB ports, so I’ve tested switching between USB-C and STLINK-V3MINI multiple times.
• No matter which port I use, COM3 always appears in Device Manager, but the issue in NanoEdge AI Studio remains the same—it doesn’t detect the board.

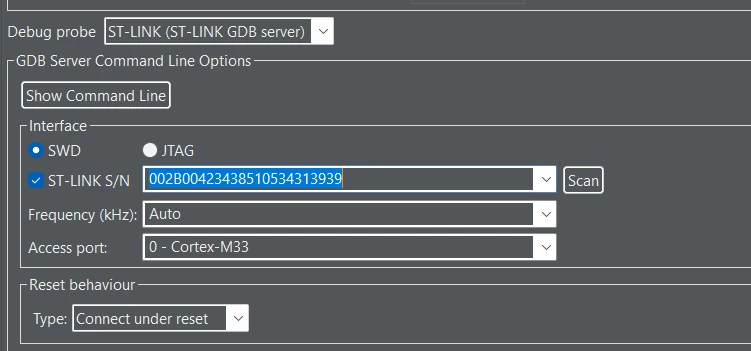

• In STM32CubeIDE, my board is detected through STLINK, and I can debug successfully.
• However, when I open PuTTY (COM3, 115200 baud rate), nothing appears—it's like the board isn’t communicating at all.
• Interestingly, when I use STM32CubeProgrammer, I can successfully flash firmware via STLINK without any issues.

It seems like the board is recognized for flashing/debugging but not for serial communication or NanoEdge AI Studio. Could this be a firmware or driver issue? Any ideas on what else to check?

[SimonePradolini]

Hello @Mahdouch

FP-SNS-DATALOG2 and NanoEdge AI Studio aren’t working in the same way:

• FP-SNS-DATALOG2 streams live data via USB only. Live data streaming is managed by the hsdatalog_GUI aforementioned.
• NanoEdge AI Studio supports live data streaming also, but via COM port. The tool itself offers you a specific firmware that allows data streaming via COM port through ST-LINK.

Notice that the two firmwares are different and not compatible with each other: by using FP-SNS-DATALOG2 firmware, you can't live logging data with NanoEdge AI Studio and viceversa.



Step 1-3 you described seems ok. Which firmware are you using for your step 4?

Best regards,

Simone



[Mahdouch]

THANKS , @SimonePradolini

Have a good day !
