porting yolov11 model to stm32mp257.

Forum|Forum|7 months ago
October 11, 2025
8 replies
1338 views

I porting yolov11 model to stm32mp257. and The target detection model I use ,The output tensor is a combination of [1x7x8400] and [1x4x8400]. [1x7x8400] should be our classification because I have set 7 categories, and [1x4x8400] should be our positional information.

1. best.pt changed to best.onnx

from ultralytics import YOLO

# Load the YOLO11 model

model = YOLO("best.pt")

# Export the model to ONNX format

model.export(format="onnx") # creates 'yolo11n.onnx'

2. best.onnx changed to best.nb

./stedgeai generate -m path/to/onnx/model --target stm32mp25

3. into broad stm32mp257 ,and get output shape.

#C++

float *pfloatdata = static_cast<float*>(nn_model->get_output(0));

std::vector<ObjDetect_Results> returnx = parseModelOutput(pfloatdata);

std::vector<ObjDetect_Results> parseModelOutput(float* output, int num_classes = 7, float confidence_threshold = 0.55f)

{

std::vector<ObjDetect_Results> detections;

float *data = output;

const int num_boxes = 8400;

const int attributes_per_box = 4 + num_classes; // 4坐标 + 1置信度 + n类别

for (int w = 0; w < 8400; w++)

{

for (int h = 0; h < attributes_per_box; h++)

{

printf(" %.2f ",data[h * 8400 + w]);

}

printf("\r\n");

}

4. I received the following output.I use the onnx model, and the probability of all 7 categories on the PC is 0. This seems to be correct, and the reasoning is also correct. However, when converted to. nb format, why is the probability of all 7 categories 1? This is obviously not correct. Why is this?

16.66 10.19 38.69 12.38 1.00 1.00 0.00 1.00 1.00 1.00 1.00

22.69 12.00 42.62 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

16.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

24.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

32.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

40.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

47.53 12.01 71.06 16.02 1.00 1.00 1.00 1.00 1.00 1.00 1.00

54.12 12.00 68.25 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

60.03 12.00 64.06 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

68.00 12.00 80.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

76.00 12.00 80.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

88.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

96.00 11.99 72.00 16.02 1.00 1.00 1.00 1.00 1.00 1.00 1.00

104.00 11.56 72.00 15.15 1.00 1.00 1.00 1.00 1.00 1.00 1.00

109.88 11.91 76.25 15.84 1.00 1.00 1.00 1.00 1.00 1.00 1.00

116.00 8.00 80.00 8.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

124.00 8.00 80.00 8.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

132.00 8.02 80.00 8.02 1.00 1.00 1.00 1.00 1.00 1.00 1.00

144.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

152.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

160.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

168.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

176.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

183.75 12.00 72.38 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

192.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

200.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00

208.00 12.00 72.00 16.00 1.00 1.00 1.00 1.00 1.00 1.00 1.00


X-LINUX-AI

Best answer by Julian E.

Hi @fanronghua0123456,

using the saved_model.pb and this quantize script:

import tensorflow as tf
import numpy as np

def representative_dataset():
 for _ in range(10):
 data = np.random.rand(1, 640, 640, 3)
 yield [data.astype(np.float32)]

# Convert the model
converter = tf.lite.TFLiteConverter.from_saved_model("./saved_model")
converter.optimizations = [tf.lite.Optimize.DEFAULT]
converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS_INT8]

converter.inference_input_type = tf.uint8 # or tf.int8
converter.inference_output_type = tf.float32 # or tf.int8
converter.representative_dataset = representative_dataset
converter._experimental_disable_per_channel = True
tflite_model = converter.convert()

# Save the model
with open("model.tflite", 'wb') as f:
 f.write(tflite_model)

then passing the edge ai -> model.nb

and testing on the board with this script:

from stai_mpu import stai_mpu_network
from numpy.typing import NDArray
from typing import Any, List
from pathlib import Path
from PIL import Image
from argparse import ArgumentParser
from timeit import default_timer as timer
import cv2 as cv
import numpy as np
import time

def intersection(rect1, rect2):
 """
 This method return the intersection of two rectangles
 """
 rect1_x1,rect1_y1,rect1_x2,rect1_y2 = rect1[:4]
 rect2_x1,rect2_y1,rect2_x2,rect2_y2 = rect2[:4]
 x1 = max(rect1_x1,rect2_x1)
 y1 = max(rect1_y1,rect2_y1)
 x2 = min(rect1_x2,rect2_x2)
 y2 = min(rect1_y2,rect2_y2)
 return (x2-x1)*(y2-y1)

def union(rect1,rect2):
 """
 This method return the union of two rectangles
 """
 rect1_x1,rect1_y1,rect1_x2,rect1_y2 = rect1[:4]
 rect2_x1,rect2_y1,rect2_x2,rect2_y2 = rect2[:4]
 rect1_area = (rect1_x2-rect1_x1)*(rect1_y2-rect1_y1)
 rect2_area = (rect2_x2-rect2_x1)*(rect2_y2-rect2_y1)
 return rect1_area + rect2_area - intersection(rect1,rect2)

def iou(rect1,rect2):
 """
 This method compute IoU
 """
 return intersection(rect1,rect2)/union(rect1,rect2)

def get_results(stai_mpu_model, threshold, iou_threshold):
 # Lists to hold respective values while unwrapping.
 base_objects_list = []
 final_dets = []

 # Output (0-4: box coordinates, 5-84: COCO classes confidence)
 output = stai_mpu_model.get_output(index=0)
 output = np.transpose(np.squeeze(output))
 #output = np.squeeze(output)
 print("output shape: ", output.shape)

 # Split output -> [0..3]: box coordinates, [5]: confidence level
 confidence_level = output[:, 4:] # Shape: (1344, 1)
 print("confidence shape: ", confidence_level.shape)
 print(np.max(confidence_level, axis=0))
 print(np.max(confidence_level, axis=1))
 indices = np.where(confidence_level > threshold)[0]
 print(indices)
 filtered_output = output[indices]
 print(filtered_output.shape)

 for i in range(filtered_output.shape[0]):
 x_center, y_center, width, height = filtered_output[i][:4]
 left = (x_center - width/2)
 top = (y_center - height/2)
 right = (x_center + width/2)
 bottom = (y_center + height/2)
 score = np.max(filtered_output[i][4:]) # filtered_output[i][4]
 class_id = 0
 base_objects_list.append([left, top, right, bottom, score, class_id])

 # Do NMS
 base_objects_list.sort(key=lambda x: x[4], reverse=True)
 while len(base_objects_list)>0:
 final_dets.append(base_objects_list[0])
 base_objects_list = [objects for objects in base_objects_list if iou(objects,base_objects_list[0]) < iou_threshold]

 return final_dets

def load_labels(filename):
 with open(filename, 'r') as f:
 return [line.strip() for line in f.readlines()]

if __name__ == '__main__':
 parser = ArgumentParser()
 parser.add_argument('-i','--image', help='image to be classified.')
 parser.add_argument('-m','--model_file',help='model to be executed.')
 parser.add_argument('-l','--label_file', help='name of labels file.')
 parser.add_argument('--input_mean', default=127.5, help='input_mean')
 parser.add_argument('--input_std', default=127.5,help='input stddev')
 args = parser.parse_args()

 stai_model = stai_mpu_network(model_path=args.model_file, use_hw_acceleration=True)
 # Read input tensor information
 num_inputs = stai_model.get_num_inputs()
 input_tensor_infos = stai_model.get_input_infos()
 for i in range(0, num_inputs):
 input_tensor_shape = input_tensor_infos[i].get_shape()
 input_tensor_name = input_tensor_infos[i].get_name()
 input_tensor_rank = input_tensor_infos[i].get_rank()
 input_tensor_dtype = input_tensor_infos[i].get_dtype()
 print("**Input node: {} -Input_name:{} -Input_dims:{} - input_type:{} -Input_shape:{}".format(i, input_tensor_name,
 input_tensor_rank,
 input_tensor_dtype,
 input_tensor_shape))
 if input_tensor_infos[i].get_qtype() == "staticAffine":
 # Reading the input scale and zero point variables
 input_tensor_scale = input_tensor_infos[i].get_scale()
 input_tensor_zp = input_tensor_infos[i].get_zero_point()
 if input_tensor_infos[i].get_qtype() == "dynamicFixedPoint":
 # Reading the dynamic fixed point position
 input_tensor_dfp_pos = input_tensor_infos[i].get_fixed_point_pos()


 # Read output tensor information
 num_outputs = stai_model.get_num_outputs()
 output_tensor_infos = stai_model.get_output_infos()
 for i in range(0, num_outputs):
 output_tensor_shape = output_tensor_infos[i].get_shape()
 output_tensor_name = output_tensor_infos[i].get_name()
 output_tensor_rank = output_tensor_infos[i].get_rank()
 output_tensor_dtype = output_tensor_infos[i].get_dtype()
 print("**Output node: {} -Output_name:{} -Output_dims:{} - Output_type:{} -Output_shape:{}".format(i, output_tensor_name,
 output_tensor_rank,
 output_tensor_dtype,
 output_tensor_shape))
 if output_tensor_infos[i].get_qtype() == "staticAffine":
 # Reading the output scale and zero point variables
 output_tensor_scale = output_tensor_infos[i].get_scale()
 output_tensor_zp = output_tensor_infos[i].get_zero_point()
 if output_tensor_infos[i].get_qtype() == "dynamicFixedPoint":
 # Reading the dynamic fixed point position
 output_tensor_dfp_pos = output_tensor_infos[i].get_fixed_point_pos()

 # Reading input image
 input_width = input_tensor_shape[1]
 print(input_width)
 input_height = input_tensor_shape[2]
 print(input_height)
 input_image = Image.open(args.image).resize((input_width,input_height))
 input_data = np.expand_dims(input_image, axis=0)
 if input_tensor_dtype == np.float32:
 input_data = (np.float32(input_data) - args.input_mean) /args.input_std
 print("----1")
 img_array_after = np.array(input_data)
 print("Dtype after resize: ", img_array_after.dtype)
 print("Shape after resize: ", img_array_after.shape)
 print("----1test")
 if input_tensor_dtype == np.float32:
 print("float32")
 if input_tensor_dtype == np.float16:
 print("float16")
 #input_data = (np.float32(input_data) - args.input_mean) /args.input_std
 input_data = np.float32(input_data)
 print("----2test")
 stai_model.set_input(0, input_data)
 print("----2")
 start = timer()
 stai_model.run()
 end = timer()

 print("Inference time: ", (end - start) *1000, "ms")
 final_dets = get_results(stai_model, 0.5, 0.5)
 print(final_dets)

we get this:

Loading dynamically: /usr/lib/libstai_mpu_ovx.so.6
[OVX]: Loading nbg model
**Input node: 0 -Input_name: -Input_dims:4 - input_type:uint8 -Input_shape:(1, 640, 640, 3)
**Output node: 0 -Output_name: -Output_dims:3 - Output_type:float16 -Output_shape:(1, 11, 8400)
640
640
----1
Dtype after resize: uint8
Shape after resize: (1, 640, 640, 3)
----1test
----2test
----2
Inference time: 118.66035591810942 ms
output shape: (8400, 11)
confidence shape: (8400, 7)
[0.75878906 0.01785278 0.54003906 0. 0. 0.0044632
0. ]
[0. 0. 0. ... 0. 0. 0.]
[8250 8251 8252 8270 8272 8291]
(6, 11)
[[0.3995361328125, 0.265625, 0.7967529296875, 1.001953125, 0.75878906, 0]]

Have a good day,

Julian

Julian E.

Technical Moderator

Hello @fanronghua0123456 ,

There are a few common reasons for this symptom:

Quantization issue — The model was quantized (e.g., int8) without proper calibration data, so activation ranges got clipped → everything becomes 1.0.
Tensor mismatch — The STM32 runtime may swap the order of outputs, or flatten [1, 7, 8400] incorrectly (e.g., treating it as [8400, 7]).
Sigmoid missing — The ONNX model includes a postprocessing activation (sigmoid/softmax), but the converted .nb version may have dropped it.
Parsing error in C++ — The data[h * 8400 + w] indexing assumes the same layout as the ONNX output; if STM32 Edge AI changes the output layout, the numbers are read incorrectly.

Could you look at these possible causes and let me know if any of this help?

Have a good day,

Julian

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.

fanronghua0123456Author

Associate III

hello .@Julian E.

You're not wrong. I will refer to the following two links:

https://github.com/stm32-hotspot/ultralytics/tree/main/examples/YOLOv8-STEdgeAI/stedgeai_models

https://github.com/STMicroelectronics/stm32ai-modelzoo-services/tree/main/tutorials/scripts/yolov8_quantization

But from what I see, both of these articles talk about quantizing .tflite to .nb format, and neither mentions quantizing .pt to .nb format. Do I have to first convert the .pt file to .tflite format, and then convert it to .nb format?

Julian E.

Technical Moderator

Hello @fanronghua0123456,

You issue seems similar to this one:

Issues converting YOLOv8 ONNX model to uint8 .nb f... - STMicroelectronics Community

The issue comes from the fact that the model was never quantized before conversion to the STM32 Edge AI format (.nb).

STEdgeAI does not perform quantization, it only converts and optimizes an already quantized model into a format that can run efficiently on the STM32 hardware.

Here’s the correct process to follow:

Start from your trained model (.pt).
Convert it to a standard format — either ONNX or TFLite.
Quantize the model (e.g., to INT8) using the appropriate framework:
- If you export to TFLite, you can use the export(int8=True) option in Ultralytics to quantize directly.
- If you export to ONNX, you must quantize it manually afterwards using an ONNX quantization tool (e.g., ONNX Runtime quantization).

Only after quantization, run the conversion for STM32 using:

./stedgeai generate -m path/to/quantized_model --target stm32mp25

This step converts the already quantized model to the .nb format optimized for your hardware.

If you skip the quantization step and directly run stedgeai generate on a non-quantized ONNX model, the resulting .nb model will not behave correctly which explains why your output probabilities are all 1.0.

Important clarification:
It’s essential to understand that quantization and conversion/optimization for hardware are two separate steps.
STEdgeAI does not perform quantization — it only takes a quantized model (in ONNX or TFLite format) and converts it into the .nb format optimized for STM32 hardware.

So you cannot quantize a .pt model directly to .nb.

The correct workflow is:

model.pt → export to .onnx or .tflite
→ quantization (INT8) using the appropriate tool
→ conversion/optimization with STEdgeAI (→ .nb)
→ run on STM32 hardware

Have a good day,

Julian

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.

fanronghua0123456Author

Associate III

hello.@Julian E.

Thanks for your reply!

1. output best.tflite.

model = YOLO('/home/alientek/best.pt')
model.export(format='tflite', imgsz=640, int8=True)

#######

Export complete (150.0s)
Results saved to /home/alientek
Predict: yolo predict task=detect model=/home/alientek/best_saved_model/best_int8.tflite imgsz=640 int8
Validate: yolo val task=detect model=/home/alientek/best_saved_model/best_int8.tflite imgsz=640 data=ultralytics/cfg/datasets/handler.yaml int8
Visualize: https://netron.app

2. i get this error output!!

(yolov11) alientek@ubuntu:/opt/ST/STEdgeAI/2.2/Utilities/linux$ sudo ./stedgeai generate --model /home/alientek/best_saved_model/best_int8.tflite --target stm32mp25
[sudo] password for alientek:
ST Edge AI Core v2.2.0-20266 2adc00962
PASS: 0%| | 0/2 [00:00<?, ?it/s]E [ops/vsi_nn_op_conv2d.c:op_check:189]Inputs/Outputs data type not support: FLOAT16, SYMM PC INT8
E [vsi_nn_graph.c:setup_node:551]Check node[3] CONV2D fail
E [vnn_.c:vnn_Create:9463]CHECK STATUS(-1:A generic error code, used when no other describes the error.)
E [main.c:vnn_CreateNeuralNetwork:198]CHECK PTR 198
E [main.c:main:232]CHECK PTR 232
E 10:53:20 Fatal model generation error: 65280
E 10:53:20 ('Fatal model generation error: 65280', 'nbg_generate')
Error during first compilation.

Retrying with other settings...
PASS: 0%| | 0/2 [01:37<?, ?it/s]E [ops/vsi_nn_op_conv2d.c:op_check:189]Inputs/Outputs data type not support: FLOAT16, SYMM PC INT8
E [vsi_nn_graph.c:setup_node:551]Check node[3] CONV2D fail
E [vnn_.c:vnn_Create:9463]CHECK STATUS(-1:A generic error code, used when no other describes the error.)
E [main.c:vnn_CreateNeuralNetwork:198]CHECK PTR 198
E [main.c:main:232]CHECK PTR 232
E 10:53:56 Fatal model generation error: 65280
E 10:53:56 ('Fatal model generation error: 65280', 'nbg_generate')

fanronghua0123456Author

Associate III

or I specified that the input and output are int8.But it still reports an error

(yolov11) alientek@ubuntu:/opt/ST/STEdgeAI/2.2/Utilities/linux$ sudo ./stedgeai generate --model /home/alientek/best_saved_model/best_int8.tflite --target stm32mp25 --input-data-type int8 --output-data-type int8
[sudo] password for alientek:
ST Edge AI Core v2.2.0-20266 2adc00962
PASS: 0%| | 0/2 [00:00<?, ?it/s]make: *** [/opt/ST/STEdgeAI/2.2/Utilities/linux/export_ovxlib/makefile.linux:53: vnn_pre_process.o] Error 1
E 11:24:53 Fatal model compilation error: 512
E 11:24:53 ('Fatal model compilation error: 512', 'nbg_compile')
Error during first compilation.

Retrying with other settings...
PASS: 0%| | 0/2 [00:51<?, ?it/s]make: *** [/opt/ST/STEdgeAI/2.2/Utilities/linux/export_ovxlib/makefile.linux:53: vnn_pre_process.o] Error 1
E 11:25:18 Fatal model compilation error: 512
E 11:25:18 ('Fatal model compilation error: 512', 'nbg_compile')

E010(InvalidModelError): Error during NBG compilation, model is not supported

Julian E.

Technical Moderator

Hello @fanronghua0123456,

When you export the model, you get multiple ones.

It seems that this one: best_int8.tflite is not fully quantized.

In particular, the conv3 is not quantized:

explaining the error you get:

PASS: 0%| | 0/2 [00:00<?, ?it/s]E [ops/vsi_nn_op_conv2d.c:op_check:189]Inputs/Outputs data type not support: FLOAT16, SYMM PC INT8

You need to use this one: yolo11n_integer_quant.tflite

This should work, but,by default, ultralytics exports the model quantized in per channel, which is not optimal for MP2. You will get an inference time of around 400ms.

╔════════════════════════════════════════════════╗
║ X-LINUX-AI unified NN model benchmark ║
╠═════════════════════════════╦══════════════════╣
║ Machine ║ STM32MP257F-DK ║
║ CPU cores ║ 2 ║
║ CPU Clock frequency ║ 1.5GHz ║
║ GPU/NPU Driver Version ║ 6.4.21 ║
║ GPU/NPU Clock frequency ║ 800 MHZ ║
║ X-LINUX-AI Version ║ v6.1.1 ║
║ ║ ║
║ ║ ║
╚═════════════════════════════╩══════════════════╝
For hardware accelerated models, computation engine used for benchmark is NPU running at 800 MHZ
For other models, computation engine uses for benchmark is CPU with 2 cores at : 1.5GHz
╔═════════════════════════════════════════════════════════════════════════════════════╗
║ NBG models benchmark ║
╠═══════════════════════╦═════════════════════╦═══════╦═══════╦═══════╦═══════════════╣
║ Model Name ║ Inference Time (ms) ║ CPU % ║ GPU % ║ NPU % ║ Peak RAM (MB) ║
╠═══════════════════════╬═════════════════════╬═══════╬═══════╬═══════╬═══════════════╣
║ yolo11n_integer_quant ║ 464.31 ║ 0.0 ║ 89.95 ║ 10.05 ║ 27.78 ║
╚═══════════════════════╩═════════════════════╩═══════╩═══════╩═══════╩═══════════════╝
╔══════════════════════════════════════════════════════════════════════════╗
║ Non-Optimal models ║
╠═══════════════════════╦══════════════════════════════════════════════════╣
║ model name ║ comments ║
╠═══════════════════════╬══════════════════════════════════════════════════╣
║ yolo11n_integer_quant ║ GPU usage is 89.95% compared to NPU usage 10.05% ║
║ ║ please verify if the model is quantized or that ║
║ ║ the quantization scheme used is the 8-bits per- ║
║ ║ tensor ║
╚═══════════════════════╩══════════════════════════════════════════════════╝
Note: Peak RAM information is only APPROXIMATE to the actual memory footprint of the model at runtime.
Take the information at your discretion.

You can edit the code in ultralytics/ultralytics/engine/exporter.py to quantize the model in per tensor:

In def export_saved_model(self, prefix=colorstr("TensorFlow SavedModel:")):

keras_model = onnx2tf.convert(
1065 input_onnx_file_path=f_onnx,
1066 output_folder_path=str(f),
1067 not_use_onnxsim=True,
1068 verbosity="error", # note INT8-FP16 activation bug https://github.com/ultralytics/ultraly tics/issues/15873
1069 output_integer_quantized_tflite=self.args.int8,
1070 quant_type="per-tensor",
1071 custom_input_op_name_np_data_path=np_data,
1072 enable_batchmatmul_unfold=True and not self.args.int8, # fix lower no. of detected object s on GPU delegate
1073 output_signaturedefs=True, # fix error with Attention block group convolution
1074 disable_group_convolution=self.args.format in {"tfjs", "edgetpu"}, # fix error with group convolution
1075 )

The option 'quant_type="per-tensor"'

Which should give you this:

root@stm32mp2-e3-c3-c9:~# x-linux-ai-benchmark -m yolo11n_integer_quant_pt.nb
╔════════════════════════════════════════════════╗
║ X-LINUX-AI unified NN model benchmark ║
╠═════════════════════════════╦══════════════════╣
║ Machine ║ STM32MP257F-DK ║
║ CPU cores ║ 2 ║
║ CPU Clock frequency ║ 1.5GHz ║
║ GPU/NPU Driver Version ║ 6.4.21 ║
║ GPU/NPU Clock frequency ║ 800 MHZ ║
║ X-LINUX-AI Version ║ v6.1.1 ║
║ ║ ║
║ ║ ║
╚═════════════════════════════╩══════════════════╝
For hardware accelerated models, computation engine used for benchmark is NPU running at 800 MHZ
For other models, computation engine uses for benchmark is CPU with 2 cores at : 1.5GHz
╔════════════════════════════════════════════════════════════════════════════════════════╗
║ NBG models benchmark ║
╠══════════════════════════╦═════════════════════╦═══════╦═══════╦═══════╦═══════════════╣
║ Model Name ║ Inference Time (ms) ║ CPU % ║ GPU % ║ NPU % ║ Peak RAM (MB) ║
╠══════════════════════════╬═════════════════════╬═══════╬═══════╬═══════╬═══════════════╣
║ yolo11n_integer_quant_pt ║ 109.95 ║ 0.0 ║ 14.19 ║ 85.81 ║ 26.48 ║
╚══════════════════════════╩═════════════════════╩═══════╩═══════╩═══════╩═══════════════╝
Note: Peak RAM information is only APPROXIMATE to the actual memory footprint of the model at runtime.
Take the information at your discretion.

So going from 400ms to 109ms because the NPU usage goes from 10% to 80% (due to per tensor quantization).

Have a good day,

Julian

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.

fanronghua0123456Author

Associate III

Hello. @Julian E.

Thank you very much for your reply. I followed your plan。

1.Increase parameters
quant_type="per-tensor",

2.used _integer_quant.tflite file.
******_integer_quant.tflite

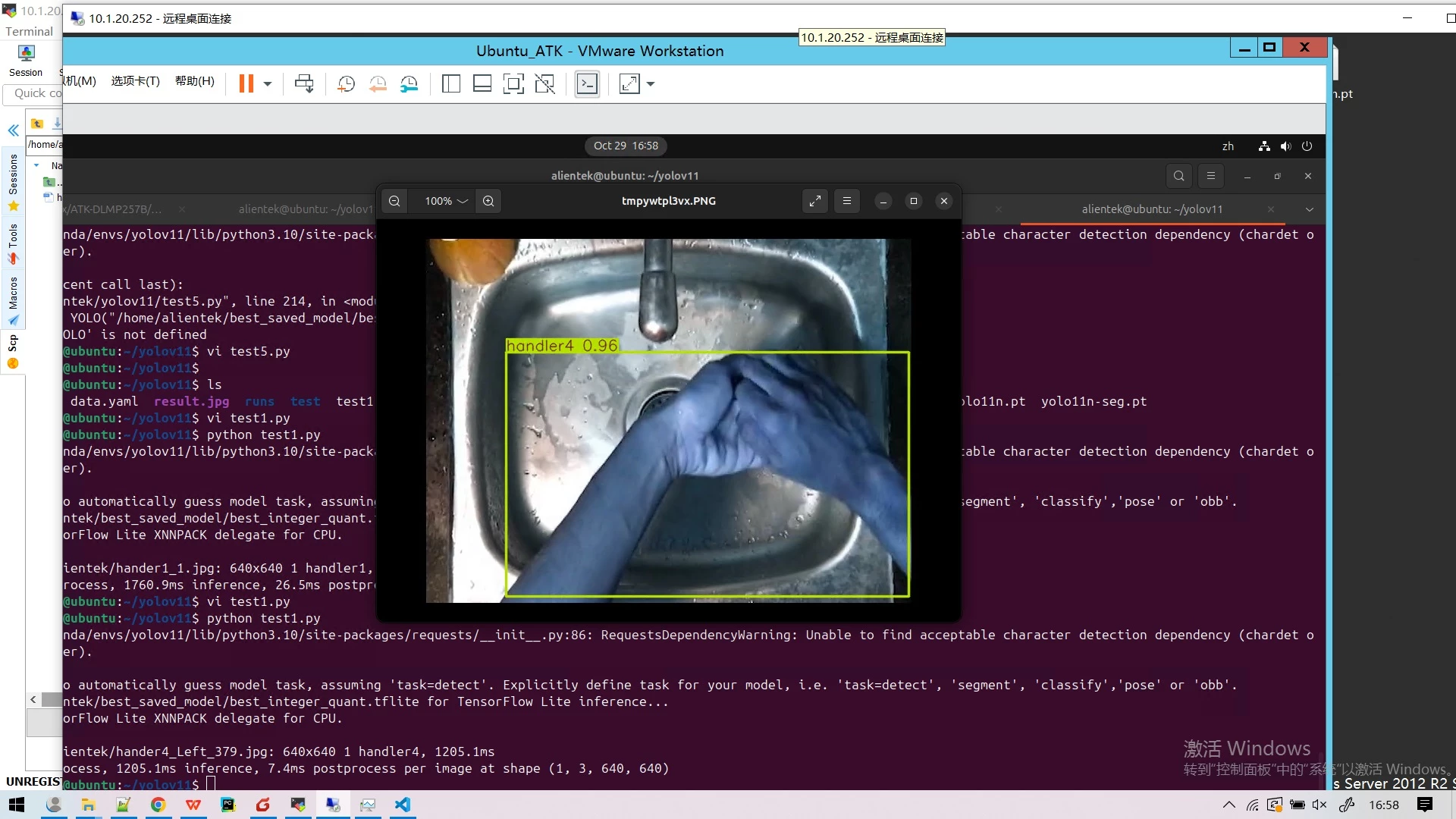

, and it really works. I have attached the picture for your reference.

but when I call it using C stai_mpu_wrapper library , and i want to output my shape.

std::vector<ObjDetect_Results> parseModelOutput(float* output, int num_classes = 7, float confidence_threshold = 0.55f)
{
 std::vector<ObjDetect_Results> detections;
 float *data = output;
 const int num_boxes = 8400;
 const int attributes_per_box = 4 + num_classes; // 4 postion + num_classes

 for (int w = 0; w < 8400; w++)
 {
 for (int h = 0; h < attributes_per_box; h++)
 {

 printf(" %.2f ",data[h * 8400 + w]);
 }
 printf("\r\n");
 }

 return detections;

and my shape look like this.

0.02 0.02 0.03 0.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.04 0.02 0.06 0.04 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.04 0.02 0.06 0.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.04 0.02 0.05 0.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.04 0.01 0.05 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.06 0.01 0.05 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.09 0.01 0.10 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.09 0.01 0.14 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.09 0.02 0.13 0.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.10 0.02 0.13 0.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.11 0.01 0.15 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.12 0.01 0.16 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.12 0.01 0.17 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.14 0.01 0.16 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.19 0.01 0.09 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.20 0.02 0.07 0.04 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.20 0.02 0.07 0.04 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.20 0.02 0.10 0.04 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.21 0.01 0.14 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.22 0.01 0.15 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.22 0.01 0.18 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.23 0.01 0.18 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.25 0.01 0.13 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.27 0.01 0.09 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.28 0.01 0.09 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.27 0.01 0.13 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.32 0.01 0.20 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.35 0.01 0.13 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.35 0.02 0.09 0.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.37 0.02 0.09 0.04 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.37 0.02 0.13 0.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.37 0.01 0.15 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.37 0.01 0.18 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.38 0.01 0.17 0.01 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.43 0.01 0.09 0.02 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.45 0.02 0.06 0.04 0.00 0.00 0.00 0.00 0.00 0.00 0.00
 0.45 0.03 0.06 0.05 0.00 0.00 0.00 0.00 0.00 0.00 0.00

“ 0.27 0.01 0.13 0.01” Do we need to make some changes?

Thanks


Julian E.

Technical Moderator

Hi @fanronghua0123456,

Ultralytics YOLO models (v5 → v8) flatten their detection output into a tensor of shape: (1, N, 4 + num_classes)

Where:

N = 8400 for YOLOv8n/s/m/l (depends on input size, e.g., 640×640)
4 = bounding box parameters → [cx, cy, w, h]
num_classes = number of classes (e.g. 80 for COCO, 7 for your case)

Each element represents one anchor (one “proposal box”)

So, your tensor shape is:

output.shape = (1, 8400, 4 + 7) = (1, 8400, 11)

And it’s stored in column-major order for TensorFlow Lite, meaning your code’s access pattern data[h * 8400 + w] is correct.

Meaning of each number:

Let’s decode a line from your printout:

0.02 0.02 0.03 0.03 0.00 0.00 0.00 0.00 0.00 0.00 0.00

=> [x_center, y_center, width, height, class0_score, class1_score, … class6_score]

These values are normalized between 0 and 1 (relative to input image size).
So for an input 640×640:

float cx = 0.02 * 640; // ≈ 12.8 pixels
float cy = 0.02 * 640; // ≈ 12.8 pixels
float w = 0.03 * 640; // ≈ 19.2 pixels
float h = 0.03 * 640; // ≈ 19.2 pixels

This means the box covers roughly a 19×19 area at (12,12).

Then the following 7 numbers are class probabilities (after sigmoid).
They’re all 0.00 here, meaning confidence is too low to consider it a detection.

Why all class scores look 0.00

That’s totally normal, most of the 8400 proposals have near-zero confidence.
Only a few (maybe 10–30) will have high class scores (e.g., 0.6, 0.8, etc.).
Your print loop shows all boxes, so you mostly see background noise.

To focus on useful detections, apply your confidence threshold (0.55):

for (int w = 0; w < 8400; w++)
{
 float cx = data[0 * 8400 + w];
 float cy = data[1 * 8400 + w];
 float w_box = data[2 * 8400 + w];
 float h_box = data[3 * 8400 + w];

 // Find class with max probability
 float max_score = 0;
 int max_class = -1;
 for (int c = 0; c < num_classes; c++)
 {
 float score = data[(4 + c) * 8400 + w];
 if (score > max_score)
 {
 max_score = score;
 max_class = c;
 }
 }

 if (max_score > confidence_threshold)
 {
 ObjDetect_Results det;
 det.x = cx;
 det.y = cy;
 det.w = w_box;
 det.h = h_box;
 det.class_id = max_class;
 det.confidence = max_score;
 detections.push_back(det);
 }
}

Then perform non-max suppression (NMS) to remove overlapping boxes.

Understanding “8400” detections

Why 8400? For YOLOv8 at 640×640:

Feature maps from 3 levels: 80×80, 40×40, 20×20
Each grid cell predicts 3 boxes → (80×80 + 40×40 + 20×20) × 3 = 8400
Each line of your print corresponds to one such box candidate.

Ultralytics TFLite export uses CHW flattened layout.
That means your array ordering data[attr * num_boxes + box_index] is correct.

If you print only a few detections (where class score > 0.5), you’ll see:

cx=0.51 cy=0.42 w=0.21 h=0.31 class=2 conf=0.84

Which is what you want to visualize or draw.

Have a good day,

Julian

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.

fanronghua0123456Author

Associate III

hello .@Julian E.

Currently, all output seems to be 0.00, as if the target cannot be detected.

and I used “best_saved_model/best_integer_quant.tflite” to perform inference on the PC,

but it's looks success!

tflite_model = YOLO("/home/alientek/best_saved_model/best_integer_quant.tflite")

# Run inference
results = tflite_model("/home/alientek/hander1_1.jpg")

out put like follow hanler1 is result.

(yolov11) alientek@ubuntu:~/yolov11$ python test1.py
/home/alientek/.conda/envs/yolov11/lib/python3.10/site-packages/requests/__init__.py:86: RequestsDependencyWarning: Unable to find acceptable character detection dependency (chardet or charset_normalizer).
 warnings.warn(
WARNING ⚠️ Unable to automatically guess model task, assuming 'task=detect'. Explicitly define task for your model, i.e. 'task=detect', 'segment', 'classify','pose' or 'obb'.
Loading /home/alientek/best_saved_model/best_integer_quant.tflite for TensorFlow Lite inference...
INFO: Created TensorFlow Lite XNNPACK delegate for CPU.

image 1/1 /home/alientek/hander1_1.jpg: 640x640 1 handler1, 1760.9ms
Speed: 38.9ms preprocess, 1760.9ms inference, 26.5ms postprocess per image at shape (1, 3, 640, 640)

Could there be a problem with the model conversion?

Is there a simple Python demo to test inference of a .nb model on a single image?

Thanks

Julian E.

Technical Moderator

Hello @fanronghua0123456,

To do an inference with a nb, you can look at this article:

https://wiki.st.com/stm32mpu/wiki/How_to_run_inference_using_the_STAI_MPU_Python_API

In your case, you need to edit the code to print the outputs as you expect, as by default it is done for image classification.

The 6 last lines:

 top_k = results.argsort()[-5:][::-1]
 labels = load_labels(args.label_file)
 for i in top_k:
 if output_tensor_dtype == np.uint8:
 print('{:08.6f}: {}'.format(float(results[i] / 255.0), labels[i]))
 else:
 print('{:08.6f}: {}'.format(float(results[i]), labels[i]))

Have a good day,

Julian

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.

fanronghua0123456Author

Associate III

@Julian E.

Thanks for your reply.

I ran it according to your method and encountered the following error. Could you tell me what caused this and how it should be fixed?

It looks like there stai_model.set_input(0, input_data) is an error here.

root@ATK-DLMP257:/opt/ui/src/apps/resource/x-linux-ai/object-detection# python3 testpy.py -m /home/root/best_integer_quant.nb -i /home/root/hander1_1.jpg -l /home
/root/best.txt
Loading dynamically: /usr/lib/libstai_mpu_ovx.so.6
[OVX]: Loading nbg model
**Input node: 0 -Input_name: -Input_dims:4 - input_type:float16 -Input_shape:(1, 640, 640, 3)
**Output node: 0 -Output_name: -Output_dims:3 - Output_type:float16 -Output_shape:(1, 11, 8400)
640
640
----1
Segmentation fault (core dumped)

My testpy.py script is as follows:

from stai_mpu import stai_mpu_network
from numpy.typing import NDArray
from typing import Any, List
from pathlib import Path
from PIL import Image
from argparse import ArgumentParser
from timeit import default_timer as timer
import cv2 as cv
import numpy as np
import time

def load_labels(filename):
 with open(filename, 'r') as f:
 return [line.strip() for line in f.readlines()]

if __name__ == '__main__':
 parser = ArgumentParser()
 parser.add_argument('-i','--image', help='image to be classified.')
 parser.add_argument('-m','--model_file',help='model to be executed.')
 parser.add_argument('-l','--label_file', help='name of labels file.')
 parser.add_argument('--input_mean', default=127.5, help='input_mean')
 parser.add_argument('--input_std', default=127.5,help='input stddev')
 args = parser.parse_args()

 stai_model = stai_mpu_network(model_path=args.model_file, use_hw_acceleration=True)
 # Read input tensor information
 num_inputs = stai_model.get_num_inputs()
 input_tensor_infos = stai_model.get_input_infos()
 for i in range(0, num_inputs):
 input_tensor_shape = input_tensor_infos[i].get_shape()
 input_tensor_name = input_tensor_infos[i].get_name()
 input_tensor_rank = input_tensor_infos[i].get_rank()
 input_tensor_dtype = input_tensor_infos[i].get_dtype()
 print("**Input node: {} -Input_name:{} -Input_dims:{} - input_type:{} -Input_shape:{}".format(i, input_tensor_name,
 input_tensor_rank,
 input_tensor_dtype,
 input_tensor_shape))
 if input_tensor_infos[i].get_qtype() == "staticAffine":
 # Reading the input scale and zero point variables
 input_tensor_scale = input_tensor_infos[i].get_scale()
 input_tensor_zp = input_tensor_infos[i].get_zero_point()
 if input_tensor_infos[i].get_qtype() == "dynamicFixedPoint":
 # Reading the dynamic fixed point position
 input_tensor_dfp_pos = input_tensor_infos[i].get_fixed_point_pos()


 # Read output tensor information
 num_outputs = stai_model.get_num_outputs()
 output_tensor_infos = stai_model.get_output_infos()
 for i in range(0, num_outputs):
 output_tensor_shape = output_tensor_infos[i].get_shape()
 output_tensor_name = output_tensor_infos[i].get_name()
 output_tensor_rank = output_tensor_infos[i].get_rank()
 output_tensor_dtype = output_tensor_infos[i].get_dtype()
 print("**Output node: {} -Output_name:{} -Output_dims:{} - Output_type:{} -Output_shape:{}".format(i, output_tensor_name,
 output_tensor_rank,
 output_tensor_dtype,
 output_tensor_shape))
 if output_tensor_infos[i].get_qtype() == "staticAffine":
 # Reading the output scale and zero point variables
 output_tensor_scale = output_tensor_infos[i].get_scale()
 output_tensor_zp = output_tensor_infos[i].get_zero_point()
 if output_tensor_infos[i].get_qtype() == "dynamicFixedPoint":
 # Reading the dynamic fixed point position
 output_tensor_dfp_pos = output_tensor_infos[i].get_fixed_point_pos()

 # Reading input image
 input_width = input_tensor_shape[1]
 print(input_width)
 input_height = input_tensor_shape[2]
 print(input_height)
 input_image = Image.open(args.image).resize((input_width,input_height))
 input_data = np.expand_dims(input_image, axis=0)
 if input_tensor_dtype == np.float32:
 input_data = (np.float32(input_data) - args.input_mean) /args.input_std
 print("----1")
 stai_model.set_input(0, input_data)
 print("----2")
 start = timer()
 stai_model.run()
 end = timer()

 print("Inference time: ", (end - start) *1000, "ms")
 output_data = stai_model.get_output(index=0)
 results = np.squeeze(output_data)
 top_k = results.argsort()[-5:][::-1]
 labels = load_labels(args.label_file)
 for i in top_k:
 if output_tensor_dtype == np.uint8:
 print('{:08.6f}: {}'.format(float(results[i] / 255.0), labels[i]))
 else:
 print('{:08.6f}: {}'.format(float(results[i]), labels[i]))

Thank you very much for your help！

Julian E.

Technical Moderator

Hi @fanronghua0123456,

Can you please add this to your code, after the resize, to make sure the shape and type of the input are correct:

---
img_array_after = np.array(input_data)
print("Dtype after resize: ", img_array_after.dtype)
print("Shape after resize: ", img_array_after.shape)
---
stai_model.set_input(0, input_data)

Your input is in float16, so your data must also be in float16, which can make this line give an error:

if input_tensor_dtype == np.float32:
 input_data = (np.float32(input_data) - args.input_mean) /args.input_std

We do a conversion in float32 of the input if the dtype of the input is of type float32. But in your case, it is float16 so we still need to a conversion to float16, something like

if input_tensor_dtype == np.float16:
 print("input data float 16")
 input_data = (np.float16(input_data) - args.input_mean) /args.input_std

Have a good day,

Julian

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.

fanronghua0123456Author

Associate III

@Julian E.

Thanks for your reply.

Using your method, I added the following code.

 # Reading input image
 input_width = input_tensor_shape[1]
 print(input_width)
 input_height = input_tensor_shape[2]
 print(input_height)
 input_image = Image.open(args.image).resize((input_width,input_height))
 input_data = np.expand_dims(input_image, axis=0)
 if input_tensor_dtype == np.float32:
 input_data = (np.float32(input_data) - args.input_mean) /args.input_std
 print("----1")
 img_array_after = np.array(input_data)
 print("Dtype after resize: ", img_array_after.dtype)
 print("Shape after resize: ", img_array_after.shape)
 print("----1test")
 if input_tensor_dtype == np.float32:
 print("float32")
 if input_tensor_dtype == np.float16:
 print("float16")
 input_data = (np.float16(input_data) - args.input_mean) /args.input_std
 print("----2test")
 stai_model.set_input(0, input_data)
 print("----2")
 start = timer()
 stai_model.run()
 end = timer()

It looks like my output is of int8 type after resize. Do I need to convert it?

root@ATK-DLMP257:/opt/ui/src/apps/resource/x-linux-ai/object-detection# python3 testpy.py -m /home/root/best_integer_quant.nb -i /home/root/hander1_1.jpg -l /home
/root/best.txt
Loading dynamically: /usr/lib/libstai_mpu_ovx.so.6
[OVX]: Loading nbg model
**Input node: 0 -Input_name: -Input_dims:4 - input_type:float16 -Input_shape:(1, 640, 640, 3)
**Output node: 0 -Output_name: -Output_dims:3 - Output_type:float16 -Output_shape:(1, 11, 8400)
640
640
----1
Dtype after resize: uint8
Shape after resize: (1, 640, 640, 3)
----1test
float16
----2test
Segmentation fault (core dumped)
root@ATK-DLMP257:/opt/ui/src/apps/resource/x-linux-ai/object-detection#

Best regards

Charles Fan

best_integer_quant.zip

Julian E.

Technical Moderator

Hi @fanronghua0123456,

Our expert took a look and did tests with your zip. It seems that you need to convert the input to float32 even if the input on the model is float16 because it is badly supported by the stedgeai core.

So something like this:

 # Reading input image
 input_width = input_tensor_shape[1]
 input_height = input_tensor_shape[2]

 input_image = Image.open(args.image).resize((input_width,input_height))
 input_data = np.expand_dims(input_image, axis=0)
 if input_tensor_dtype == np.float32:
 print("input data float")
 input_data = (np.float32(input_data) - args.input_mean) /args.input_std

<strong> if input_tensor_dtype == np.float16: </strong>
<strong> print("input data float") </strong>
<strong> input_data = (np.float32(input_data) - args.input_mean) /args.input_std </strong>

 img_array_after = np.array(input_data)
 print("Dtype after resize: ", img_array_after.dtype)
 print("Shape after resize: ", img_array_after.shape)
 stai_model.set_input(0, input_data)
 start = timer()
 stai_model.run()
 end = timer()

And this is the output that you should get:

root@stm32mp2-e3-c3-c9:~/test_mobilenet_alexis/yolo# python3 test.py -i hander1_1.jpg -m best_integer_quant.
nb -l best.txt
Loading dynamically: /usr/lib/libstai_mpu_ovx.so.6
[OVX]: Loading nbg model
**Input node: 0 -Input_name: -Input_dims:4 - input_type:float16 -Input_shape:(1, 640, 640, 3)
**Output node: 0 -Output_name: -Output_dims:3 - Output_type:float16 -Output_shape:(1, 11, 8400)
input data float
Dtype after resize: float32
Shape after resize: (1, 640, 640, 3)
Inference time: 108.06444752961397 ms

Have a good day,

Julian

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.

fanronghua0123456Author

Associate III

@Julian E.

hi, Thanks for your reply.

I was able to infer using your code, but I still haven't received any inference results. My model outputs a shape of 4（position）+7（confidence level）, but I couldn't find any items with a confidence greater than 0, which is the same as the result I verified using C++ code.

However, I can infer using best_integer_quant.tflite file on Ubuntu without any problems.

The attachment is the inference result.

from ultralytics import YOLO

tflite_model = YOLO("/home/alientek/best_saved_model/best_integer_quant.tflite")

results = tflite_model("/home/alientek/hander4_Left_379.jpg")
plotted_img = results[0].plot()
from PIL import Image
im = Image.fromarray(plotted_img)

im.show();

so，Can I infer if there is an error in the best_integer_quant.tflite to best_integer_quant.nb file?

./stedgeai generate -m /home/alientek/best_saved_model/best_integer_quant.tflite --target stm32mp25

Thanks for your help.

Thanks

charles fan

fanronghua0123456Author

Associate III

@Julian E.

Hi, Thanks for your reply!

Of course, no problem！

I first use the following script to convert the PT file into a TF file. Attached are the files before and after the conversion and the output log information!

from onnxruntime.quantization import quantize_dynamic, QuantType, quantize_static
import onnx
from ultralytics import YOLO
import onnx
from onnxruntime.quantization import quantize_static, QuantType, CalibrationMethod, CalibrationDataReader

if __name__ == '__main__':

 model = YOLO('/home/alientek/best.pt') # 替换为你的模型路径
 # 1. 首先导出标准 ONNX 模型
 model.export(format='tflite', imgsz=640, int8=True)

 # 2. 加载并检查模型
 # onnx_model = onnx.load('runs/detect/train12/weights/best.onnx')
 # onnx.checker.check_model(onnx_model)

 #3. 进行动态量化
 # quantize_dynamic(
 # 'runs/detect/train12/weights/best.onnx',
 # 'runs/detect/train12/weights/best_int8.onnx',
 # weight_type=QuantType.QUInt8,
 # # optimize_model=True
 # )

 # quantize_static(
 # 'runs/detect/train6/weights/yolo11n.onnx',
 # 'runs/detect/train6/weights/yolo11n_int8.onnx',
 # weight_type=QuantType.QUInt8,
 # # optimize_model=True
 # )
 print("INT8 量化完成！")

Thanks for your help!

Charles fan

Julian E.Best answer

Technical Moderator

Hi @fanronghua0123456,

using the saved_model.pb and this quantize script:

import tensorflow as tf
import numpy as np

def representative_dataset():
 for _ in range(10):
 data = np.random.rand(1, 640, 640, 3)
 yield [data.astype(np.float32)]

# Convert the model
converter = tf.lite.TFLiteConverter.from_saved_model("./saved_model")
converter.optimizations = [tf.lite.Optimize.DEFAULT]
converter.target_spec.supported_ops = [tf.lite.OpsSet.TFLITE_BUILTINS_INT8]

converter.inference_input_type = tf.uint8 # or tf.int8
converter.inference_output_type = tf.float32 # or tf.int8
converter.representative_dataset = representative_dataset
converter._experimental_disable_per_channel = True
tflite_model = converter.convert()

# Save the model
with open("model.tflite", 'wb') as f:
 f.write(tflite_model)

then passing the edge ai -> model.nb

and testing on the board with this script:

from stai_mpu import stai_mpu_network
from numpy.typing import NDArray
from typing import Any, List
from pathlib import Path
from PIL import Image
from argparse import ArgumentParser
from timeit import default_timer as timer
import cv2 as cv
import numpy as np
import time

def intersection(rect1, rect2):
 """
 This method return the intersection of two rectangles
 """
 rect1_x1,rect1_y1,rect1_x2,rect1_y2 = rect1[:4]
 rect2_x1,rect2_y1,rect2_x2,rect2_y2 = rect2[:4]
 x1 = max(rect1_x1,rect2_x1)
 y1 = max(rect1_y1,rect2_y1)
 x2 = min(rect1_x2,rect2_x2)
 y2 = min(rect1_y2,rect2_y2)
 return (x2-x1)*(y2-y1)

def union(rect1,rect2):
 """
 This method return the union of two rectangles
 """
 rect1_x1,rect1_y1,rect1_x2,rect1_y2 = rect1[:4]
 rect2_x1,rect2_y1,rect2_x2,rect2_y2 = rect2[:4]
 rect1_area = (rect1_x2-rect1_x1)*(rect1_y2-rect1_y1)
 rect2_area = (rect2_x2-rect2_x1)*(rect2_y2-rect2_y1)
 return rect1_area + rect2_area - intersection(rect1,rect2)

def iou(rect1,rect2):
 """
 This method compute IoU
 """
 return intersection(rect1,rect2)/union(rect1,rect2)

def get_results(stai_mpu_model, threshold, iou_threshold):
 # Lists to hold respective values while unwrapping.
 base_objects_list = []
 final_dets = []

 # Output (0-4: box coordinates, 5-84: COCO classes confidence)
 output = stai_mpu_model.get_output(index=0)
 output = np.transpose(np.squeeze(output))
 #output = np.squeeze(output)
 print("output shape: ", output.shape)

 # Split output -> [0..3]: box coordinates, [5]: confidence level
 confidence_level = output[:, 4:] # Shape: (1344, 1)
 print("confidence shape: ", confidence_level.shape)
 print(np.max(confidence_level, axis=0))
 print(np.max(confidence_level, axis=1))
 indices = np.where(confidence_level > threshold)[0]
 print(indices)
 filtered_output = output[indices]
 print(filtered_output.shape)

 for i in range(filtered_output.shape[0]):
 x_center, y_center, width, height = filtered_output[i][:4]
 left = (x_center - width/2)
 top = (y_center - height/2)
 right = (x_center + width/2)
 bottom = (y_center + height/2)
 score = np.max(filtered_output[i][4:]) # filtered_output[i][4]
 class_id = 0
 base_objects_list.append([left, top, right, bottom, score, class_id])

 # Do NMS
 base_objects_list.sort(key=lambda x: x[4], reverse=True)
 while len(base_objects_list)>0:
 final_dets.append(base_objects_list[0])
 base_objects_list = [objects for objects in base_objects_list if iou(objects,base_objects_list[0]) < iou_threshold]

 return final_dets

def load_labels(filename):
 with open(filename, 'r') as f:
 return [line.strip() for line in f.readlines()]

if __name__ == '__main__':
 parser = ArgumentParser()
 parser.add_argument('-i','--image', help='image to be classified.')
 parser.add_argument('-m','--model_file',help='model to be executed.')
 parser.add_argument('-l','--label_file', help='name of labels file.')
 parser.add_argument('--input_mean', default=127.5, help='input_mean')
 parser.add_argument('--input_std', default=127.5,help='input stddev')
 args = parser.parse_args()

 stai_model = stai_mpu_network(model_path=args.model_file, use_hw_acceleration=True)
 # Read input tensor information
 num_inputs = stai_model.get_num_inputs()
 input_tensor_infos = stai_model.get_input_infos()
 for i in range(0, num_inputs):
 input_tensor_shape = input_tensor_infos[i].get_shape()
 input_tensor_name = input_tensor_infos[i].get_name()
 input_tensor_rank = input_tensor_infos[i].get_rank()
 input_tensor_dtype = input_tensor_infos[i].get_dtype()
 print("**Input node: {} -Input_name:{} -Input_dims:{} - input_type:{} -Input_shape:{}".format(i, input_tensor_name,
 input_tensor_rank,
 input_tensor_dtype,
 input_tensor_shape))
 if input_tensor_infos[i].get_qtype() == "staticAffine":
 # Reading the input scale and zero point variables
 input_tensor_scale = input_tensor_infos[i].get_scale()
 input_tensor_zp = input_tensor_infos[i].get_zero_point()
 if input_tensor_infos[i].get_qtype() == "dynamicFixedPoint":
 # Reading the dynamic fixed point position
 input_tensor_dfp_pos = input_tensor_infos[i].get_fixed_point_pos()


 # Read output tensor information
 num_outputs = stai_model.get_num_outputs()
 output_tensor_infos = stai_model.get_output_infos()
 for i in range(0, num_outputs):
 output_tensor_shape = output_tensor_infos[i].get_shape()
 output_tensor_name = output_tensor_infos[i].get_name()
 output_tensor_rank = output_tensor_infos[i].get_rank()
 output_tensor_dtype = output_tensor_infos[i].get_dtype()
 print("**Output node: {} -Output_name:{} -Output_dims:{} - Output_type:{} -Output_shape:{}".format(i, output_tensor_name,
 output_tensor_rank,
 output_tensor_dtype,
 output_tensor_shape))
 if output_tensor_infos[i].get_qtype() == "staticAffine":
 # Reading the output scale and zero point variables
 output_tensor_scale = output_tensor_infos[i].get_scale()
 output_tensor_zp = output_tensor_infos[i].get_zero_point()
 if output_tensor_infos[i].get_qtype() == "dynamicFixedPoint":
 # Reading the dynamic fixed point position
 output_tensor_dfp_pos = output_tensor_infos[i].get_fixed_point_pos()

 # Reading input image
 input_width = input_tensor_shape[1]
 print(input_width)
 input_height = input_tensor_shape[2]
 print(input_height)
 input_image = Image.open(args.image).resize((input_width,input_height))
 input_data = np.expand_dims(input_image, axis=0)
 if input_tensor_dtype == np.float32:
 input_data = (np.float32(input_data) - args.input_mean) /args.input_std
 print("----1")
 img_array_after = np.array(input_data)
 print("Dtype after resize: ", img_array_after.dtype)
 print("Shape after resize: ", img_array_after.shape)
 print("----1test")
 if input_tensor_dtype == np.float32:
 print("float32")
 if input_tensor_dtype == np.float16:
 print("float16")
 #input_data = (np.float32(input_data) - args.input_mean) /args.input_std
 input_data = np.float32(input_data)
 print("----2test")
 stai_model.set_input(0, input_data)
 print("----2")
 start = timer()
 stai_model.run()
 end = timer()

 print("Inference time: ", (end - start) *1000, "ms")
 final_dets = get_results(stai_model, 0.5, 0.5)
 print(final_dets)

we get this:

Loading dynamically: /usr/lib/libstai_mpu_ovx.so.6
[OVX]: Loading nbg model
**Input node: 0 -Input_name: -Input_dims:4 - input_type:uint8 -Input_shape:(1, 640, 640, 3)
**Output node: 0 -Output_name: -Output_dims:3 - Output_type:float16 -Output_shape:(1, 11, 8400)
640
640
----1
Dtype after resize: uint8
Shape after resize: (1, 640, 640, 3)
----1test
----2test
----2
Inference time: 118.66035591810942 ms
output shape: (8400, 11)
confidence shape: (8400, 7)
[0.75878906 0.01785278 0.54003906 0. 0. 0.0044632
0. ]
[0. 0. 0. ... 0. 0. 0.]
[8250 8251 8252 8270 8272 8291]
(6, 11)
[[0.3995361328125, 0.265625, 0.7967529296875, 1.001953125, 0.75878906, 0]]

Have a good day,

Julian

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.

fanronghua0123456Author

Associate III

Thanks your help! it's running.

Sign up

Login with SSO

Login to the community

Login with SSO

Scanning file for viruses.

This file cannot be downloaded
