Problem using X CUBE AI version 7.3.0

[AAli.2]

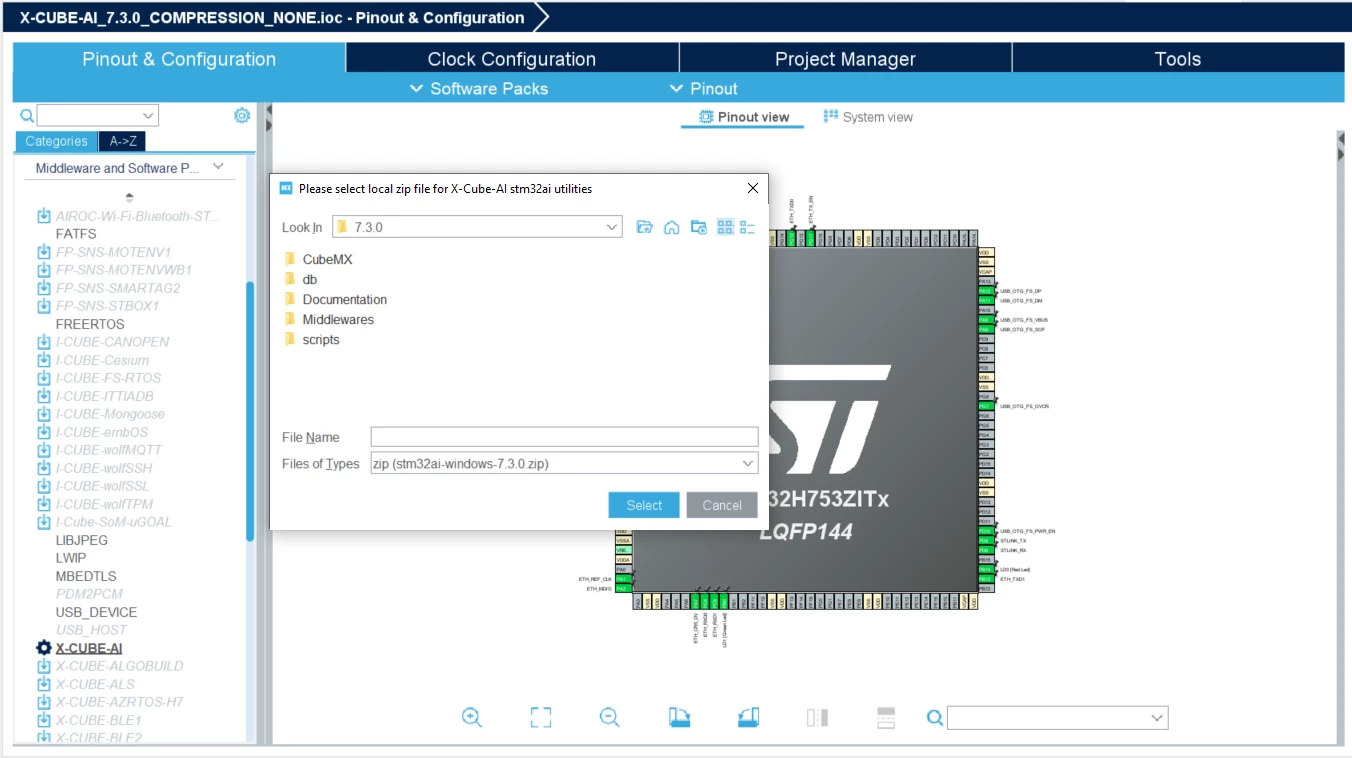

I want to use X CUBE AI VERSION 7.3.0. I have installed the package with correct version but when I try to use it pops a saying "Please select local zip file for X-Cube-AI stm32ai utilities". I cannot find the zip file anywhere where should be located. I have also tried version 9.0.0 and no tab opens up in that version. But I need to use 7.3.0. I am attaching a screenshot as well.

[hamitiya]

Hello,

It probably means X-CUBE-AI plugin was not able to contact distant server in order to download it.

Based on your screenshot, you can install it manually from the zip.



Here are the steps:

- Go to https://www.st.com/en/embedded-software/x-cube-ai.html

- Click or Scroll down to "Get Software"

- Look for the row corresponding to the column "X-CUBE-AI-Win" if you are on Windows.

- Select version "7.3.0" and follow the next steps in your browser.



It should start a ZIP download labeled as "en.x-cube-ai-windows_v7.3.0.zip"

- Unzip it, it contains another ZIP named "stm32ai-windows-7.3.0.zip"

- From STM32CubeMX, browse to this folder and select this zip



Hope it helps.

Best regards,

Yanis



[AAli.2]

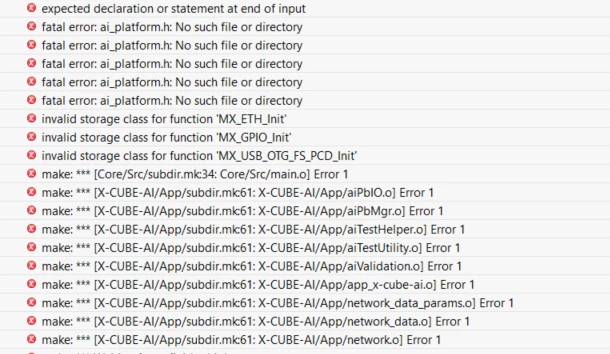

Thank you for reply the version problem was resolved but it when I generate code with it for the model. The middleware and and Debug folder is not generated with the required files. Due to which it gives me error when I build the project. I am attaching the screenshots for your understanding. Is that a problem with X Cube AI version 7.3.0. Because I generate the code with version 9.0.0 as well which is ok. But I specifically want to use version 7.3.0.

[hamitiya]

Hello,

I think you don't have your files in your project because you tried to generate C Code in an existing project. It was a known issue in 7.3.0 and next versions of STM32CubeMX.

Could you try to generate a project from scratch and see if it still happen ?



Best regards,

Yanis
