This topic has been closed for replies.
Best answer by Federica Bossi

Ciao @FKara.3 ,

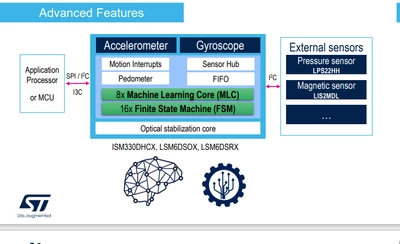

When sensor hub mode (mode 2) is enabled, both the primary I²C/MIPI I3C®/SPI (3- and 4-wire) slave interface and the I²C master interface for the connection of external sensors are available. These are the connections needed:


In AN5922 you can find a guidance from page 71.

If this helps you, please mark my answer as "Best Answer" by clicking on the "Accept as Solution" button, this can be helpful for Community users to find this solution faster.

2 replies

RhSilicon
RhSilicon
Lead
August 14, 2023

AN5922 has a dedicated part for "Sensor hub mode example"

Federica Bossi
Federica BossiBest answer
Technical Moderator
August 16, 2023

Ciao @FKara.3 ,

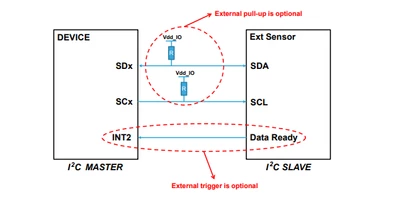

When sensor hub mode (mode 2) is enabled, both the primary I²C/MIPI I3C®/SPI (3- and 4-wire) slave interface and the I²C master interface for the connection of external sensors are available. These are the connections needed:


In AN5922 you can find a guidance from page 71.

If this helps you, please mark my answer as "Best Answer" by clicking on the "Accept as Solution" button, this can be helpful for Community users to find this solution faster.

In order to give better visibility on the answered topics, please click on 'Accept as Solution' on the reply which solved your issue or answered your question.
