Sensor Tile and STWINKT1B

[Felipe_Nascimento]

Good afternoon!

Would it be possible to transfer the STWINKT1B library that uses NanoEdge to the Tile Sensor (STEVAL-STLKT01V1)

I was able to use dual-tone multi-frequency classifier using NanoEdge AI Studio on the STWINKT1B board

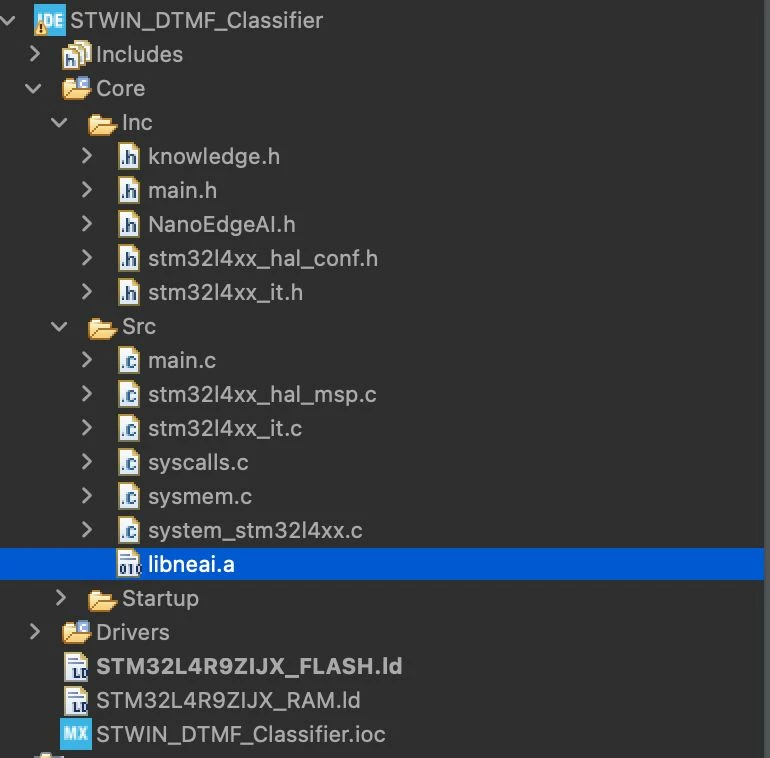

I can already read the microphone on the Sensor Tile, but I'm trying to implement the NanoEdge library with the knowledge.h files NanoEdgeAI.h and libneai.a but I'm not having success, I also didn't find the NanoEdgeAI.c file, I believe it is essential to get the result similarity output and make the classification

[SimonePradolini]

Hello @Felipe_Nascimento

STWIN and SensorTile mount a different STM32 microcontroller: STWIN is based on STM32L4+ instead SensorTile is based on STM32L4.

I guess you can't reuse the same precompiled library from NanoEdge AI for different STM32 family.

Consider also that STEVAL-STLKT01V1 is a very old evaluation board. It’s NRND (Not Recommended for New Design), so it intended not to be supported anymore.



Best regards,

Simone
