Issues on Setting Parameter

[PTsen]

Hi, I have tons of question about the command $PSTMSETPAR and some related command:

​

First of all, I would like to change the NMEA Baudrate to 38400, as the software manual said, I should transfer

​

"$PSTMSETPAR,1102,0x8"

"$PSTMSAVEPAR"

​

and NMEA gives me the result (no comma due to the way I'm processing the string):

​

$PSTMSETPAROK 1102*31

$PSTMSETPAR 1102 8

​

as the manual says, I should reset the system, so I've enter the command "$PSTMRR", and it returns "$GPTXT DEFAULT LIV CONFIGURATION*2B". But when I change my Baudrate from 9600 to 38400, I got scribbled message, only when I change back to 9600 will the message be shown properly. However, after I unpowered my stm32 and power it again, I ""sometime"" find it changes its Baudrate to 38400, vice versa. So here are my questions:

​

1. How to reset X-NULCEO-GNSS1A1: As I dig into the example code from cubeMS, I found that reset is done by setting low on the reset pin, wait for a while, then setting it to high, then wait for a while, but doing so doesn't make any change to the setting. So I'm not sure how the resetting is done.
2. Should I send the second command after the previous command got the return message? E.g. I should wait "$PSTMSETPAROK 1102*3" after sending the command "$PSTMSETPAR,1102,0x8" , then send the new command, or I can send "$PSTMSETPAR,1102,0x8" followed by "$PSTMSAVEPAR" immediately?

​

Next, I would like TESEO LIV3F to send to me only some certain message, say, $GPGGA, to do so, I need to use the command $PSTMCFGMSGL, and here is my next group of questions:

​

1. From "Application note - AN5203 - Teseo-LIV3F - I2C Positioning Sensor", I found an example of setting the config is done as follow:

$PSTMCFGMSGL,3,1,0,0
$PSTMSETPAR,1227,1,2
$PSTMSAVEPAR

​

I can't understand, from the software manual of Teseo-LIV3F, the syntax of $PSTMCFGMSGL is <listid>,<rate>,

<list_l>,<list_h>*<checksum><cr><lf>, where listid can only be 0 or 1, I don't even know what listid 1 is since I can't

find the CBD_ID 210 and 229 relevant to msg list in the user manual, not to mention the value 3 in the example

above, also, I don't know what does "rate" here mean.

​ 2. After reconfigure the message list by the command "$PSTMCFGMSGL,0,1,0,0" and "$PSTMSAVEPAR", nothing

changed, I'm expecting this since the Baudrate doesn't change immediately, as well. When I request the

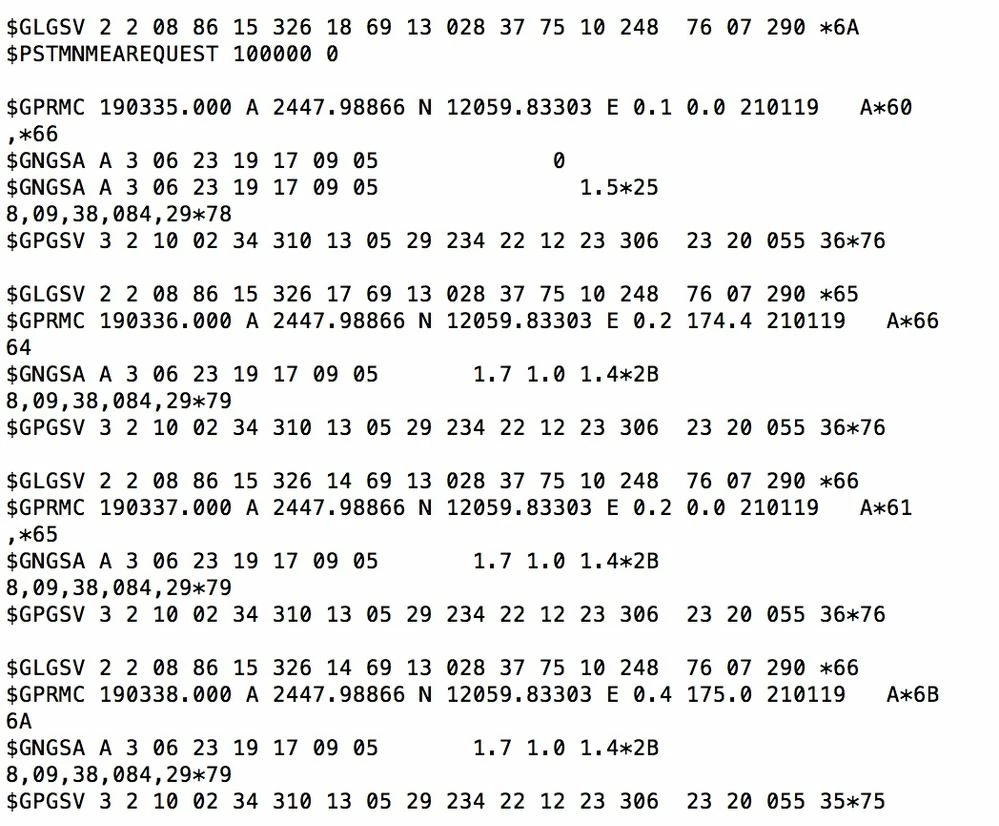

message via command $PSTMNMEAREQUEST,100000,0 (GPGLL), I didn't get what I expected, instead, I get this

​

​Which is totally different from the application note, and I don't know what to do, the manual is rather confusing to me.

Any advice would be great, since I'm literally having hard time getting this module to work. Thank you.

[Francesco Virlinzi]

Hi

To change NMEA baudrate you can use the following script:

====

$PSTMCFGPORT,0,0,2,new_baud_value

$PSTMSAVEPAR

$PSTMSRR

====

1. How to reset X-NULCEO-GNSS1A1

You can perform a software reset using the commands "$PSTMSRR" or an hardware reset toggling the pins Teseo-LIV3F.nReset (pins Connector-9_pin-8 on the X-Nucleo-GNSS1A1)

> I would like TESEO LIV3F to send to me only some certain message

I2C anc UART ports have separated message-list.

To change the UART-message-list you can use the following scripts:

==================

$PSTMCFGMSGL,0,1,<list_low>,<list_high>

$PSTMSAVEPAR

$PSTMSRR

==================

Let me know if this helps.

Regards

Francesco

[PTsen]

Hi, thanks for your response

First of all

===

$PSTMCFGPORT,0,0,2,0x5

$PSTMSAVEPAR

$PSTMSRR

===

What I expected: As soon as I do the software reset, the baudrate of NMEA should be the new one.

What turns out to be: The baudrate of NMEA doesn't change since changing the USART baudrate to the new one result in scribbled message, but is normal when change to original baudrate

Additional question: what does '2' mean here? According to the manual, I see the first param is portnumb (UART GPIO ID), what ID?

Next,

==================

$PSTMCFGMSGL,0,1,0,0

$PSTMSAVEPAR

$PSTMSRR

==================

What I expected: As soon as the software reset, I should receive nothing

What turns out to be: The message keeps printing as if nothing happened.

[Francesco Virlinzi]

Hi

> $PSTMCFGPORT,0,0,2,0x5

It should be:

$PSTMCFGPORT,0,0,2,115200

or

$PSTMCFGPORT,0,0,2,9600

to restore the default setting

>  what does '2' mean here?

Teseo-III has several UART port (The UART-2 is the one available on the module).

> What I expected: As soon as the software reset, I should receive nothing

Just tested and working on my side.

The periodic messages are no more sent from the module.

Could you check?

Thanks

Regards

Francesco
