STEVAL-ASTRA1B - Teseo-LIV3F GNSS Not working

[technofreaks]

Hello

FP-ATR-ASTRA1  - platform STEVAL-ASTRA1B, Teseo-LIV3F GNSS module

Outdoor GPS  not working, Requesting  help to fix this.

latitude: 0.0, longitude: 0.0,  altitude: 100.0





Thank You

Sudhir

[GalaxyQuest]

Please update ASTRA1B to the latest version 2.0.0

https://www.st.com/en/embedded-software/fp-atr-astra1.html

Secondly, are you testing GPS with clear view of the sky?

[technofreaks]

---

@GalaxyQuest wrote:

Please update ASTRA1B to the latest version 2.0.0

https://www.st.com/en/embedded-software/fp-atr-astra1.html

Secondly, are you testing GPS with clear view of the sky?

---



Yes testing GPS outside with clear sky view (Line of sight).



Will Update and check again.

Thank You



[GalaxyQuest]

Hi,

I wanted to check if you were able to see GPS signals after updating the ASTRA1B firmware to the latest release?

Thanks,

George

[syed_uthman]

Hye GalaxyQuest.

My team also have same issue on this. We would like to try updating ASTRA-1B firmware. We download the firmware zip file from the STEVAL-ASTRA1B product page. Under tools & software tab and under MCU and MPU embedded software section. I download version 2.0.1

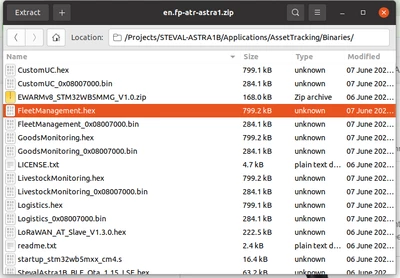

After for quite sometimes searching for the firmware. I stumble upon this binaries folder. Which I believe the firmware for STEVAL-ASTRA1B. Is this the firmware that i suppose to upload to STEVAL-ASTRA1B?

[GalaxyQuest]

Hi,

This is the firmware binary that needs to be programmed.

en.fp-atr-astra1\Projects\STEVAL-ASTRA1B\Applications\AssetTracking\Binaries

Thanks,

George

[Izzul]

Hii GalaxyQuest,

regarding an update for Steval -Astra1b firmware, which board should I update the firmware on STM32WB5MMG module or the STM32WL55JC module? Plus, which STM32 software is preferred to update the firmware?

thanks,

Izzul.
