Teseo-LIV3F, no satellite position.

[Sergei]

Hello, Can you help me?

I assembled a module on the Teseo-liv3f basis with a passive antenna (A25-4102920-AMT02). And I can not get the coordinates in nmea messages (screenshot in attach). What could be the problem?

Thank you.

[Francesco Virlinzi]

Ciao Francesco, Karim

The module in your hands isn't the final one.

It's a prototyping sample built in ~Nov 2017.

On board there isn't the final firmware.

We could plan a firmware-update of the module to promote the module to the final firmware.

@Francesco, On which board are you testing the module?

Thanks

Ciao

Francesco

[FResi]

Ciao Francesco and Karim,

The module is on a proprietary testing board. Here below the FW versions:

OS20LIB_4.3.0_ARM

GPSAPP_2.4.0.1_ARM

BINIMG_4.6.8.1_ARM

SWCFG_8204941a

WAASLIB_2.20.0_ARM

STAGPSLIB_5.1.0_ARM

STA8090_622bc043

GNSSLIB_8.4.10.16.3_ARM

Can I update the firmware by myself using the tool STA808x/9x Firmware Upgrade?

Where can I download the bin file?

Best regards

Francesco

[Francesco Virlinzi]

Ciao Francesco

> Can I update the firmware by myself using the tool STA808x/9x Firmware Upgrade?

if in your board you can reset the module (just with a simple push-button or similar..) yes you can.

> Where can I download the bin file?

We will send the binary by email.

Is it ok?

Thanks

Ciao

Francesco

[Iyaku]

I can not get the activation code for Teseo-Suite Pro.

[MTzie.1]

Hello

We are having trouble to work with the TESEO-LIV3R

It looks like we have chips that has old firmware

We tried to update the FW using the Teseo-suite Pro

but couldnt manage to do it

As soon as we connect to the Teseo-suite we have connection to the Com port and as soon as we try to upload the Bin file it gives us the massage that it is in Sync and it doesnt proceed from there

Is there any other instruction then that one that is in the ST web site or if you could help me I would appricate that

BR

Tzif

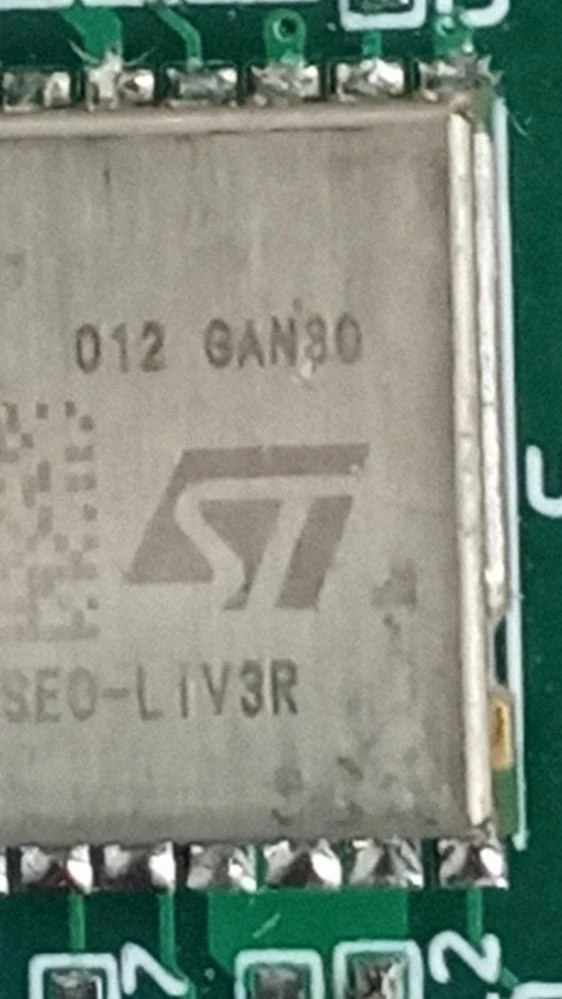

We have GPS modules with the 012 GAN80

[Francesco Virlinzi]

Hi

Teseo-LIV3R is a ROM based GNSS module. You can NOT upgrade it.

The module which support firmware upgrade are:

• Teseo-LIV3F
• Teseo-LIV3FL

which are both Flash based.

Regards

Francesco

[MTzie.1]

Thank you so much for your answer

I have few Modules Teseo-LIV3F

and I will try to update them

But what can I do with the LIV3R that I bought - why cant I get the Sattelite ( I keep on getting "0" atough the layout is ok ( Tried with few antennas )

What can I do with the LIV3R

Please advise

[Francesco Virlinzi]

Please, contact Karim Ramsi ([e-mail])
