I'm confused about ST nomenclature for VL53L7CH

  • September 3, 2025
  • 1 reply
  • 591 views





I want to try the VL53L7CH, I purchased the SATEL-VL53L7 and the x-nucleo-53l7A1. When I look at the boards on the SATEL-VL53L7 they look identical. But the description says it supports both the CX and CH models. Can someone clear this up?

Best answer by Andrew Neil


https://www.st.com/resource/en/data_brief/satel-vl53l7.pdf

via: https://www.st.com/en/evaluation-tools/satel-vl53l7.html



So it looks like the chip on those boards is a "special" which can behave as either the CX or the CH version?



1 reply

Andrew Neil
Andrew NeilBest answer
Super User
September 3, 2025

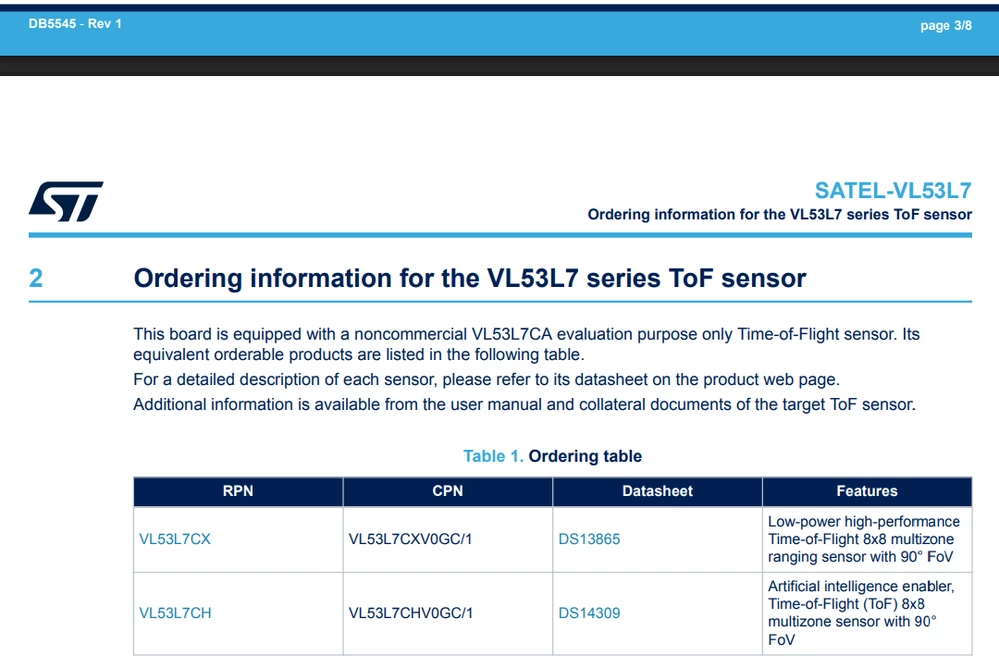

https://www.st.com/resource/en/data_brief/satel-vl53l7.pdf

via: https://www.st.com/en/evaluation-tools/satel-vl53l7.html



So it looks like the chip on those boards is a "special" which can behave as either the CX or the CH version?



A complex system that works is invariably found to have evolved from a simple system that worked.A complex system designed from scratch never works and cannot be patched up to make it work.
