vd55g1 - no data in stream mode

[eureka]

Hi, I'm currently facing a challenge with the VD55G1 driver. I've designed my own minimal system board for the N6 and VD55G1, using MIPI CSI for communication. When attempting to drive the VD55G1, I can enter the stream mode but no data is being transmitted (the N6 interrupt is not triggered). Upon reading the stream_fsm register of the VD55G1, I noticed it remains stuck in the dark task, with the REPEAT_COUNT, CURRENT_CONTEXT, and NEXT_CONTEXT values consistently showing 0 0 1.

Here is my code

testfsm means getting the value of the stream_fsm register.

I would greatly appreciate your prompt assistance in resolving this issue. Thank you.

[CyrilTechPro]

Hi eureka



Difficult to debug like that could be a lot of think.

could you share a bit more information about Hardware and Software :

-Hardware: could you provide clock information and power domain or schematics

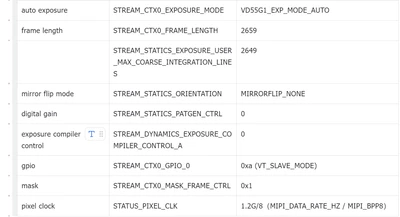

-Software : could you share sensor configuration you use.



Thanks in advance



bye

[eureka]

Hello, i am so grateful for your reply.

About hardware:

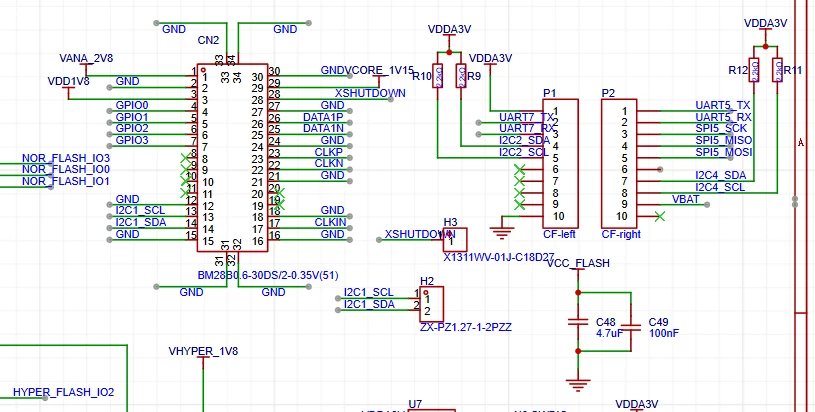

camera part:

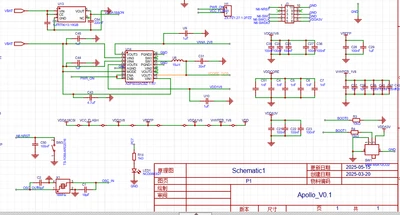

power supply part:

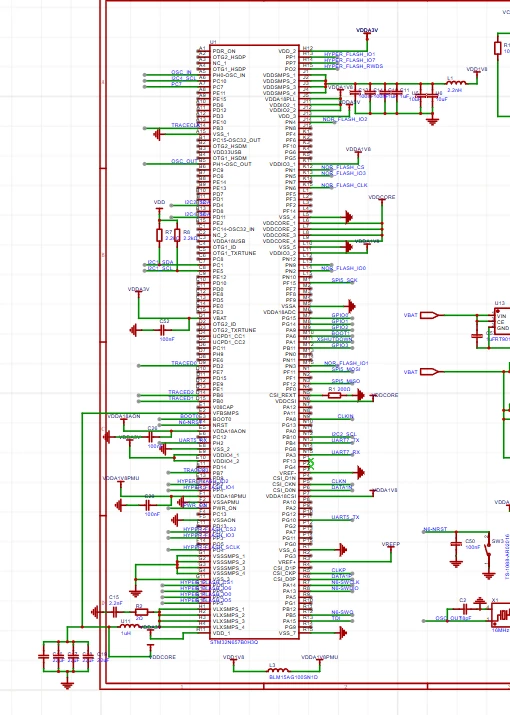

MCU part

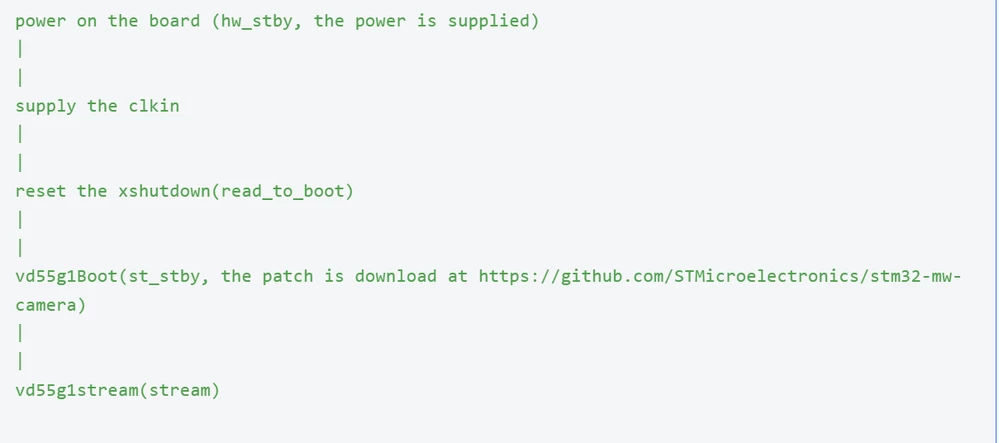

About software:





[eureka]



[eureka]

Thank you for your reply very much.

I tried to set GPIO0 to output mode, but there is still no image data whether it is pulled low or high, and the stream_fsm of the camera is in the dark task.

I checked the content of dstaddress in

HAL_StatusTypeDef HAL_DCMIPP_CSI_PIPE_Start(DCMIPP_HandleTypeDef *hdcmipp, uint32_t Pipe, uint32_t VirtualChannel,

                                            uint32_t DstAddress, uint32_t CaptureMode)

but found that it was all empty. Could it be that there is a problem with my detection method?
