VL53L5CX How to get initial collected data but not a normal distribution?

  • August 1, 2023
  • 1 reply
  • 4083 views

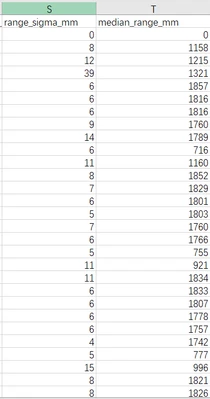

I purchased a  P-NUCLEO-53L5A1 kit and successfully used it to collect data for depth estimation with the help of Quick start guide. But I have noticed that if I used STSW-IMG024, GUI for L5, to get collected data, I would receive a .csv document and it is shown like this:


As I know, from some papers that describe principle of TOF sensors, raw data collected by L5 can be arranged as a HISTOGRAM with 100 bins. So how can I get this HISTOGRAM data (or depth data of each bin) but not just a sigma and median from a fitted normal distribution?

This topic has been closed for replies.
Best answer by Anne BIGOT

Hello
It is not possible to read out histogram datas from the VL53L5CX.

ST just introduced two new products from which you will get the histograms. Please have a look to the VL53L7CH and VL53L8CH products.

Regards

1 reply

Anne BIGOT
Anne BIGOTBest answer
Technical Moderator
August 2, 2023

Hello
It is not possible to read out histogram datas from the VL53L5CX.

ST just introduced two new products from which you will get the histograms. Please have a look to the VL53L7CH and VL53L8CH products.

Regards

Our community relies on fruitful exchanges and good quality content. You can thank and reward helpful and positive contributions by marking them as 'Accept as Solution'. When marking a solution, make sure it answers your original question or issue that you raised. ST Employees that act as moderators have the right to accept the solution, judging by their expertise. This helps other community members identify useful discussions and refrain from raising the same question. If you notice any false behavior or abuse of the action, do not hesitate to 'Report Inappropriate Content'
    B
    BryceAuthor
    Associate II
    August 2, 2023

    Thank you so much for this. Best wishes.
