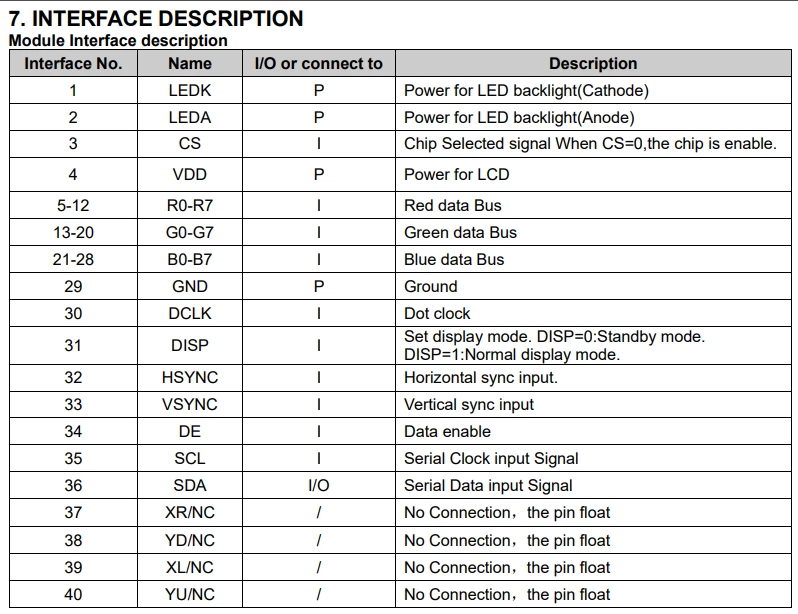

Hello, I'm very new to STM32 and LCD RGB. Currently, I bought the LCD TFT AFY480272A0-4.3INTH. It says that the interface uses a 24-bit parallel RGB. Can I drive it using the NUCLEO-F767ZI? And, how do I connect the flexible cable to the Nucleo pin?

[MSyai.1]

..

[MM..1]

Yes you can and for connect create or order somethink like FPC FFC Cable 6 8 10 12 20 30 40 50 60 PIN 0.5 mm pitch Connector SMT Adapter to 2.54 mm 1.00 inch pitch through hole DIP PCB|Connectors| - AliExpress for your lcd

[MSyai.1]

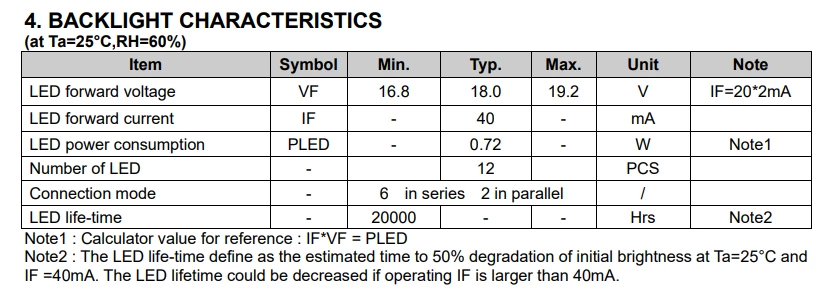

Thanks, I'll order it soon. But I'm still confused about how to set the brightness on the Nucleo. The backlight has two pins, an anode and a cathode. The forward voltage of the backlight is 18V.
