how to getting started with STEVAL-IDB011V1 and which tool is used to flash the code and edit the code.

[Nikhil Gayke]

please provide the link and document.@Agnieszka Stawiarska​ @Salvo​ @Salvo​ @Sebastien DENOUAL​ @Salvatore DI SALVO​ @Community member​

[Sebastien DENOUAL]

HI @Nikhil Gayke​ ,

I would advise to install at first BlueNRG-LP SDK : https://www.st.com/content/st_com_cx/en/products/embedded-software/evaluation-tool-software/stsw-bnrglp-dk.html

You can start at first by launching Navigator tools which allow to browse package and code examples in a user friendly way.

In SDK package, there is also a full documentation with links to different Application notes, Datasheet, schematics, ..... as well as code examples description.

Hope it helps !

Regards,

Sebastien.

[Mario1]

Hi @Sebastien DENOUAL​ , is it available the Cubemx pack for this board?

Thanks in advance

[Sebastien DENOUAL]

Hi @Mario​ ,

No, CubeMX is dedicated to STM32 family and do not support BleuNRG-LP currently.

Anyway, there are some alternative for BlueNRG family's that are presented in this thread : CubeMX for BlueNRG LP (st.com)

Regards,

Sebastien.

[Mario1]

@Sebastien DENOUAL​  Many thanks for your quickly answer. I already tested some project with wise studio and have some issue to debug them: Error connecting DP: cannot read IDR... So I decided to start step by step from the skeleton. Any advice?

[Sebastien DENOUAL]

Hi Mario,

This might be link to low power and sleep mode management.

Indeed, if SleepMode is activated on your device, you can not attached CMSIS debug probe.

To make sure cortex-MO of BleuNRG-LP is activated :

• Press and hold Push1 button of STEAVL-IDB11
• Press Reset button
• Release Push1 button

At this level, you should be able to flash and debug.

Of course during development/evaluation phase, you can deactivate sleep mode by cmmenting call to HAL_PWR_MNGR_Request() in main loop.

Regards,

Sebastien.

[Mario1]

@Sebastien DENOUAL​ Many thanks, your solution work for me. I'd like to take advantage of your kindness to ask you another question...Is the STSW-BNRGLP-Mesh example here available for Wise Studio toolchain? If not, can you give me some guidance on how to convert it for wise?

Thanks in advance

[Sebastien DENOUAL]

Hi @Mario​ ,

Thanks for feedback.

About this mesh package, Wise is not supported as of today (I didn't check if this package is fully compliant with arm-gcc).

Hence, I would advise to use KEIL IDE for which a free license is available :

> https://www2.keil.com/stmicroelectronics-stm32/mdk

Regards,

Sebastien.

[Mario1]

@Sebastien DENOUAL​  Many thanks...

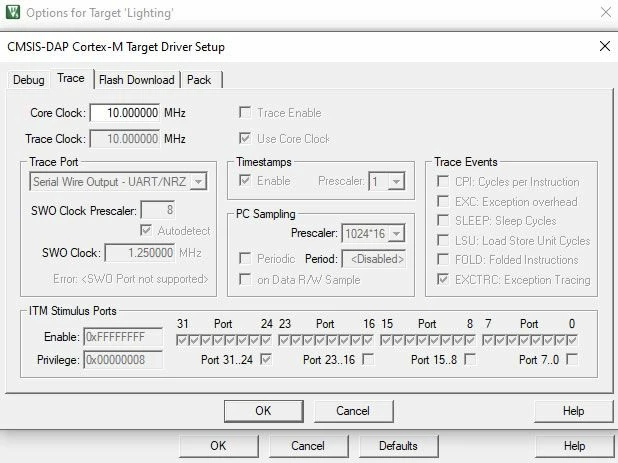

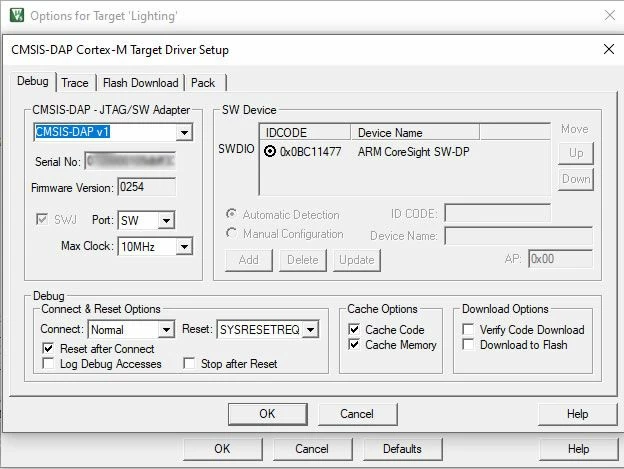

I have another problem: Cannot see any printf in the debug viewer. I'm using Keil and selected CMSIS-DAP as debugger but in the trace setting the option "Trace enable" is gray, so i cannot enable it. by some searching i found that the CMSIS-DAP version has to be at least 1.1 to enable tracing. I have the v1... How to upgrade it?
