PCB design question of Bluenrg-LPS (Bluenrg-332ac)

[JasonYang]

Hi everyone,

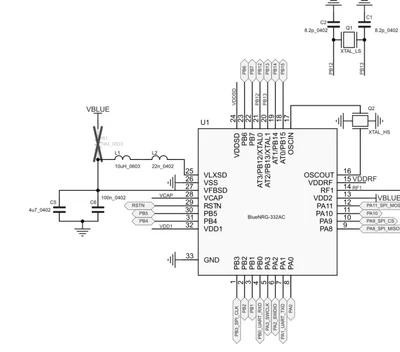

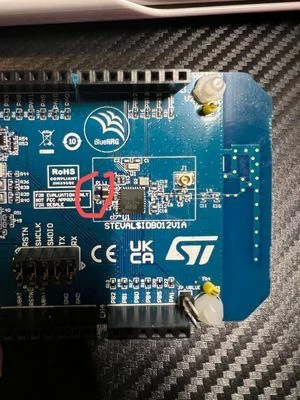

I am currently working on a PCB design using a Bluenrg-332ac chip. The official PCB design guideline has a resistor marked "X" as shown on the left of the figure below. But I saw the resistor soldered on the eval board. Can anyone explain whether we keep the resistor or not in the PCB design?

Reference files: AN5526  STEVAL-IDB012V1





[Laurent LOUAZON]

Hello,

This resistor should not be there.
BlueNRG gives you flexibility to use or not internal SMPS. It is a matter of power consumption versus BOM saving .

If using SMPS, then R1 must not be set
If SMPS is not used, then R1 must be set and L1/L2 are not used.

Regards
Laurent

[JasonYang]

Hi Laurent,

Thank you for your reply! I also want to ask if we remove R1 here, do we still need to connect the VBLUE to the circuit?

Regards,

Jason

[Laurent LOUAZON]

Hello Jason,



If you do not set R1 , it means you will use internal SMPS (so you will have L1 and L2 set).
SMPS must be activated by SW (CONFIG_HW_SMPS_10uH)

Then Vblue is used to supply other Vdd pins of the BlueNRG-LPS (VDDSD, VDDRF, VDD1 and VDD2)



Laurent
